Name: Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: jahitan berdiri / mengunci sendiri
Price: 8,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure

Portable Roof Panel Roll Forming Machine

Portable standing seam metal roof machine

PLC standing seam roll former

Tempat asal:

CINA

Nama merek:

fms

Sertifikasi:

Nomor model:

jahitan berdiri / mengunci sendiri

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Menyoroti:

Portable Roof Panel Roll Forming Machine

Portable standing seam metal roof machine

PLC standing seam roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

7000usd-10000usd

Kemasan rincian

Telanjang

Waktu pengiriman

45 hari

Syarat-syarat pembayaran

T/T

Menyediakan kemampuan

1000

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

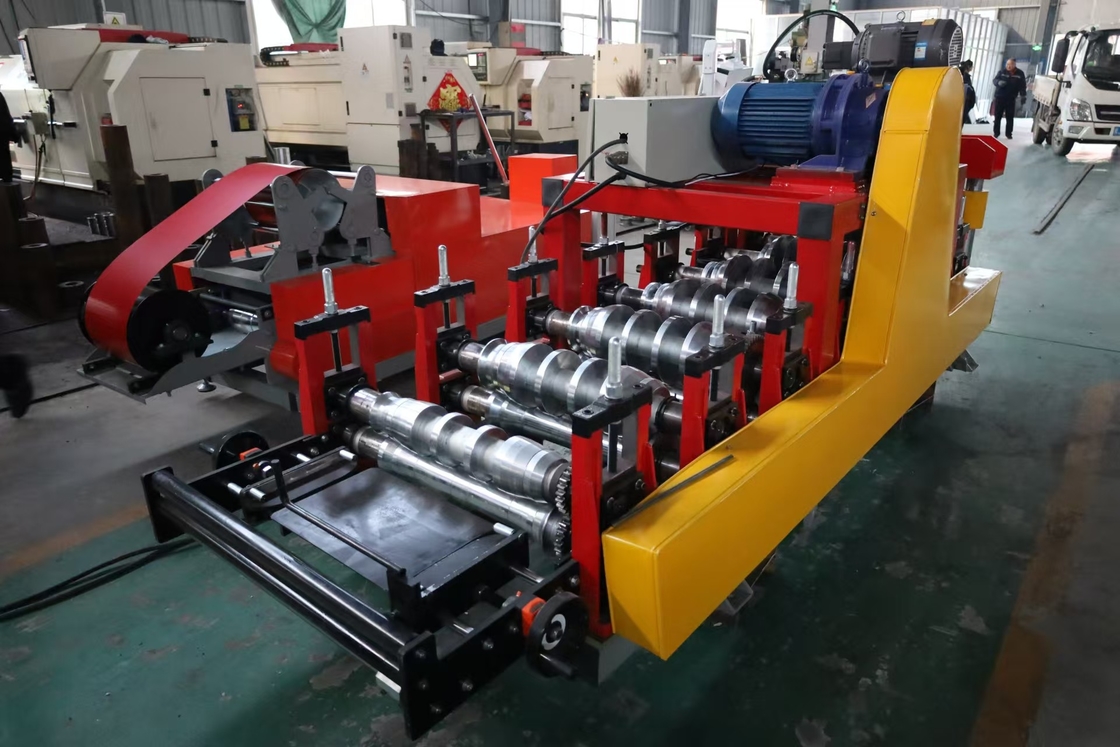

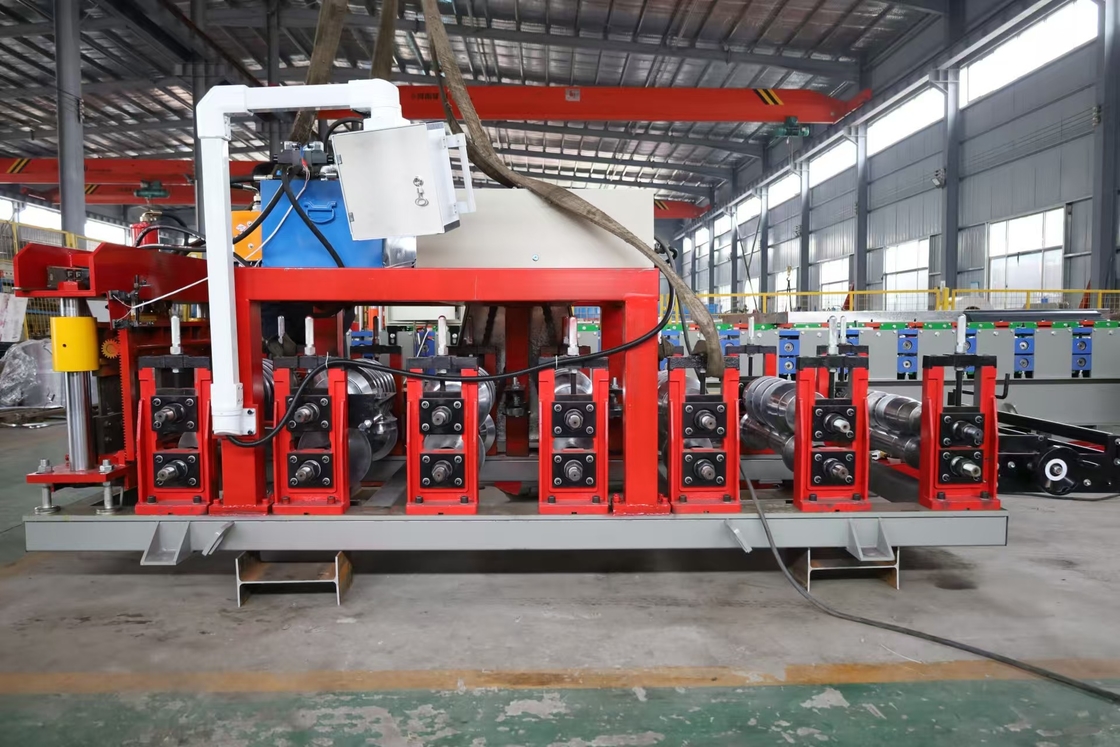

portable double lock standing seam roof panel roll forming machine with good price Features

portable double lock standing seam roof panel roll forming machine with good price

1.We are design the one unit one machine, the control box and the hydraulic station for the cutting are all put under the bedding, when you get the machine, the machine is one unit, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. 2. the touch screen is hang over, it is not under the floor. 3. the roller is solid and electroplated, which will not have rust. 4.the material are all national standard and cutter will not have burr.

Raw material	Galvanized steel coil, aluminium coil
Material thickness	PPGI:26 to 21 gauge(0.5-0.9mm) Aluminum:23 to 19 gauge(0.7-1.2mm)
Voltage	220V,60HZ,Single Phase (special voltage, motor,frequency converter need customized)
Main power	5.5Kw
Hydraulic power	4Kw
Working speed	15-30m/m
Control system	PLC delta	Siemens,Mitsubishi, panasonic (Optional)
Machine main structure	Wall panel structure
Roller station	8 stations or according to you profile drawings
Roller material	Cr12	Cr12, SKD11(Optional)
Driving system	Chain drive	Gearbox (Optional)

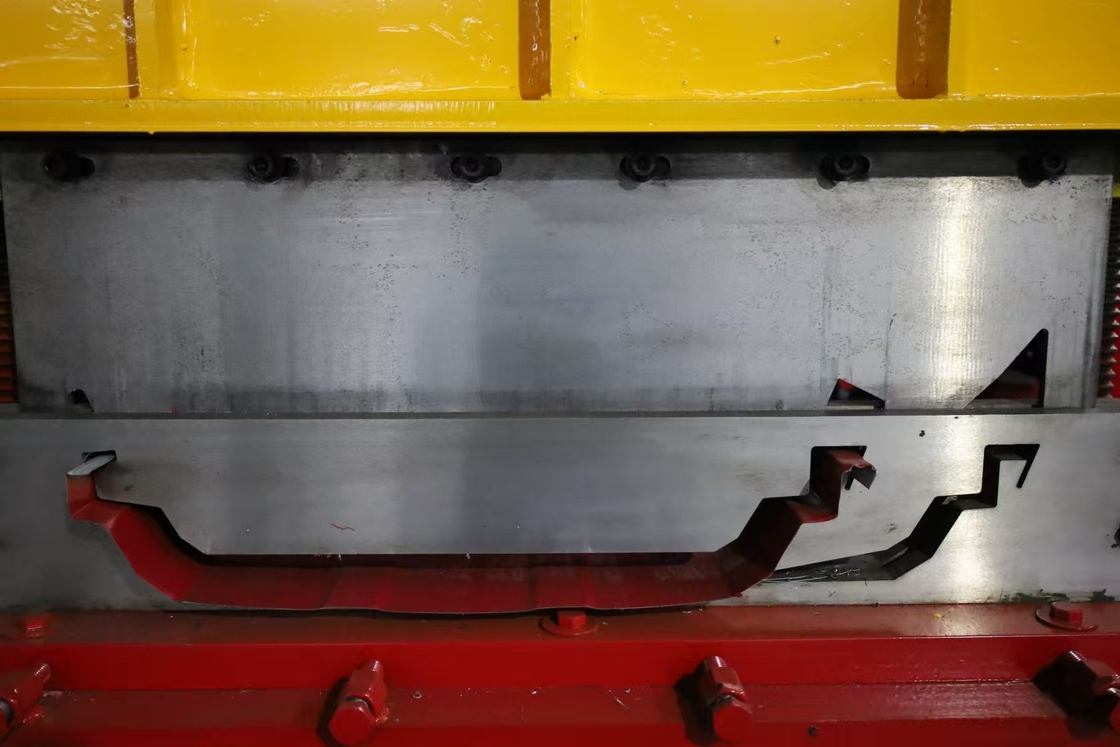

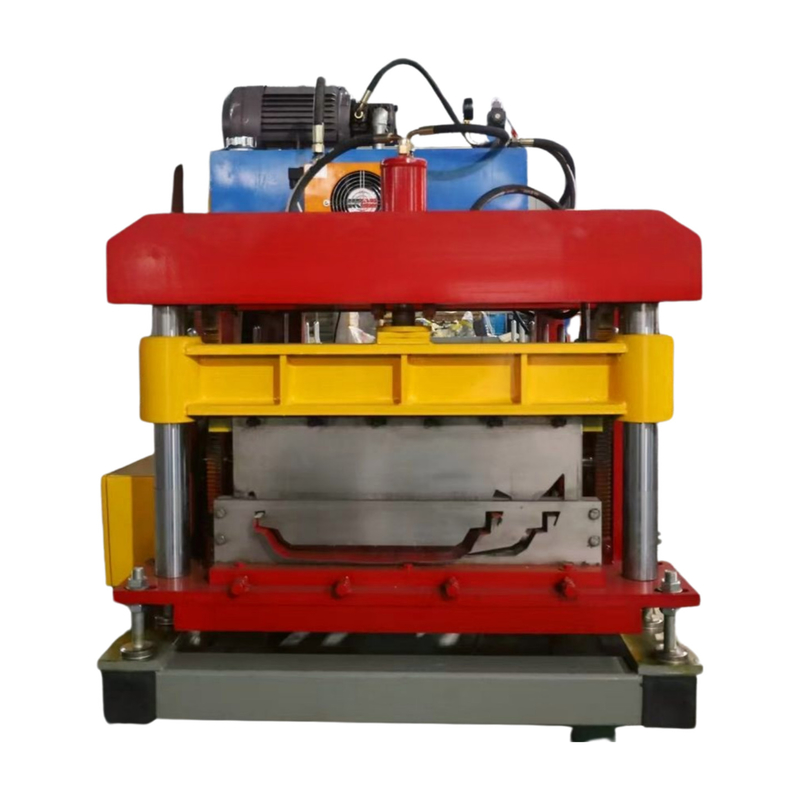

Cutting system	hydraulic cutting
Cutting blade material	Cr12mov, Quenched treatment 58℃-60℃
Decoiler	Manual decoiler	Hydraulic decoiler (Optional)

ptional parts of portable double lock standing seam roof panel roll forming machine with good price

working flow

Decoiler→ Feed Guide Device→ Rolling Forming System → Hydraulic Fly Punching & Cutting System→ Exit Rack

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 1

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine with PLC Delta Control System and Wall Panel Structure

Why Choose Us

1. We are a factory with nearly 20 years experiences on Roll Forming Machines;

2. We have our own research and development team with strong ability to solve all kinds of problems;

3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;

4. We have more than 20 technicians that can go abroad for the after-sale service;

5. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;

6. We have got the ISO9001:2008 Certificate and CE Certificate;

7. We are always waiting to serve you 7 days a week and 24 hours a day.

Any questions can email me or call me! Ashley Mobile:+86-17736986169 WhatsApp/Wechat)
