Hydraulic Electric Downspout Making Machine For Aluminum Sheet

Hydraulic Electric Downspout Making Machine For Aluminum Sheet

Electric Downspout Making Machine

Hydraulic Downspout Making Machine

Aluminum Sheet Downspout Making Machine

Tempat asal:

CINA

Nama merek:

fms

Sertifikasi:

ce

Nomor model:

Mesin selokan

Hubungi Kami
Minta Penawaran Harga
Detail Produk
Berat mesin:
500kg
Ukuran Mesin:
Tergantung pada profil
Motor hidrolik:
5.5kw
Ketebalan:
0,8 mm
Menyoroti:

Electric Downspout Making Machine

,

Hydraulic Downspout Making Machine

,

Aluminum Sheet Downspout Making Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1
Harga
8000usd-10000usd
Kemasan rincian
Telanjang
Waktu pengiriman
45 hari
Syarat-syarat pembayaran
T/T
Menyediakan kemampuan
1000
Deskripsi produk



2024 new type roofing gutters roll forming machine Water Rain Gutter Roll Forming Machine Downspout Making Machine Gutter Machines For Sale

Product Paramenters
Water Rain Gutter Roll Forming Machine
1.Suitable material
Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H):
2.6m*1m*1.2m
3.Main motor power
4KW with Cycloidal reducer
4.Hydraulic station power
4KW
5. Hydraulic oil pump
CB-E 310
6.Thickness of material
0.3mm~0.8mm
7.Diameter of principal axis
Φ70-90mm
8.Material expand width
300-700mm
9.Electric tension
380V 3phase 50HZ or as the customer's requirements
10.Material of roller
High grade 45# forged steel plated with hard chrome plating
11.Controlling system
PLC
12.Processing speed
3-15m/min
13.Processing precision within
1.00mm (depend on design)
14.Material of cutting blade
Cr12 mould steel with quenched treatment
15.Kind of drive
0.6 inch chain link bearing model 6210
16.Roller station
7  Rollers as drawing
17.Roller material
high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing
1T



Products Description

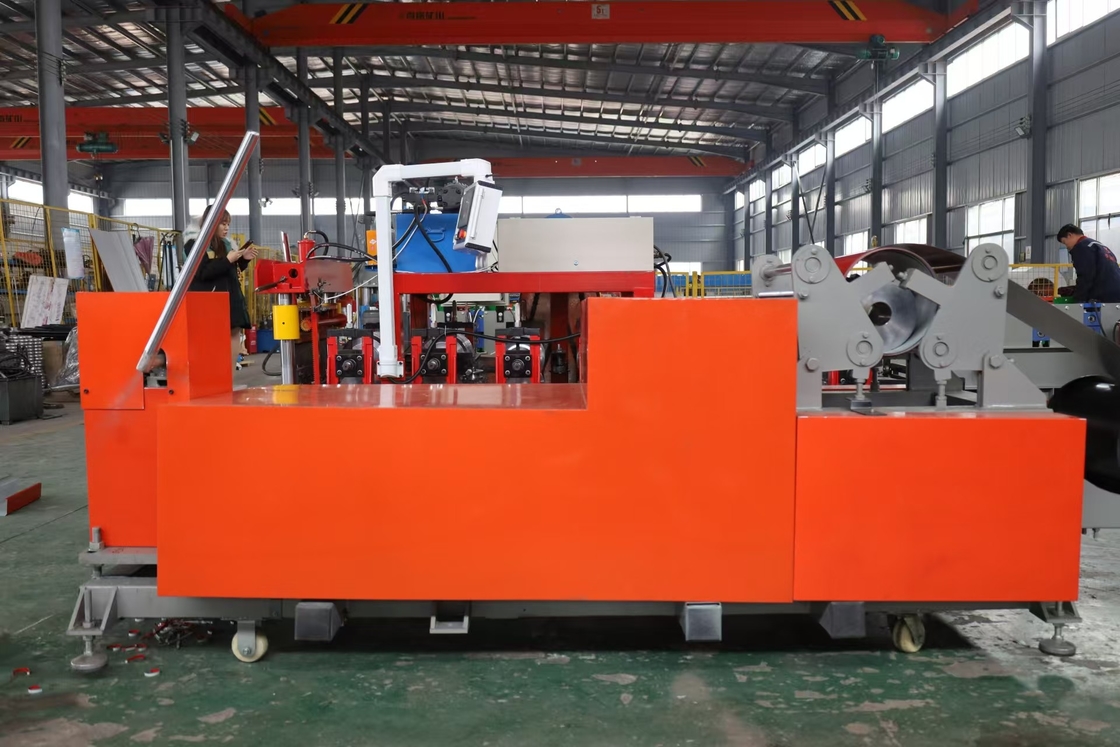

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 0



Water Gutter roll forming machine
Rain Gutter Roll Forming Machine can form rain gutter profiles according to customer’s requirement .The equipment adopts PLC control, AC frequency and adjusting the speed technology, and itcan realize the continuous automatically production.
Therefore, it is really a new type of energy-saving and high-effective equipment for metal rain gutter
US SELLING TILE TYPE

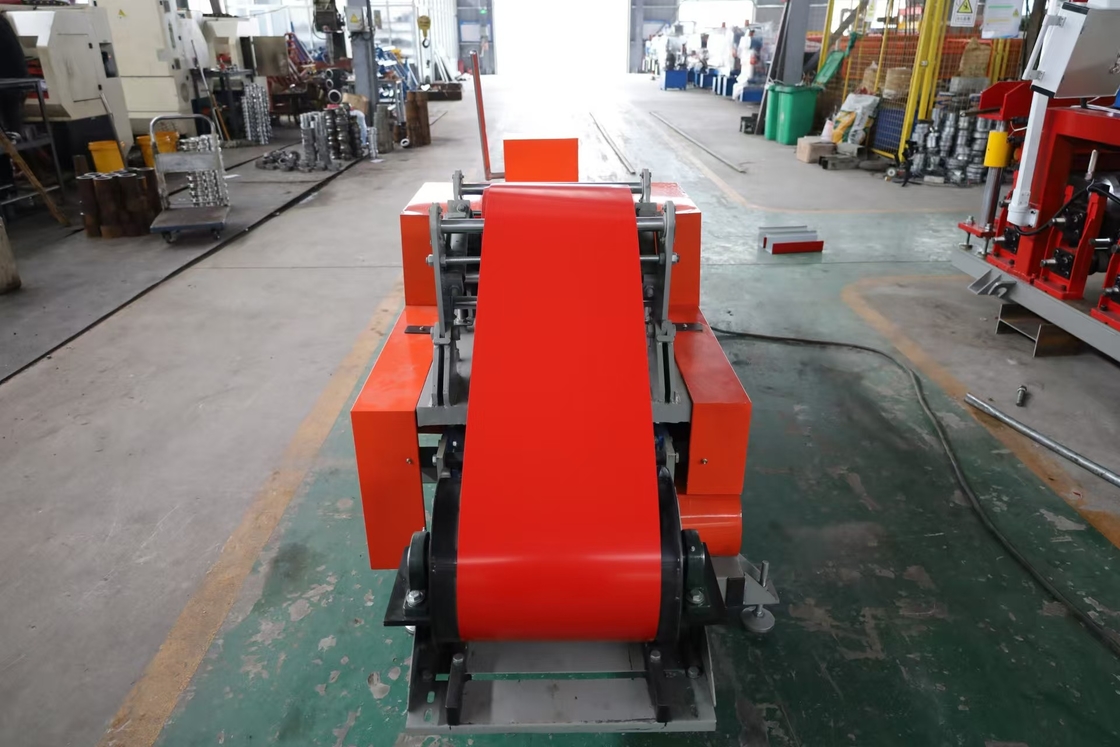

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 1

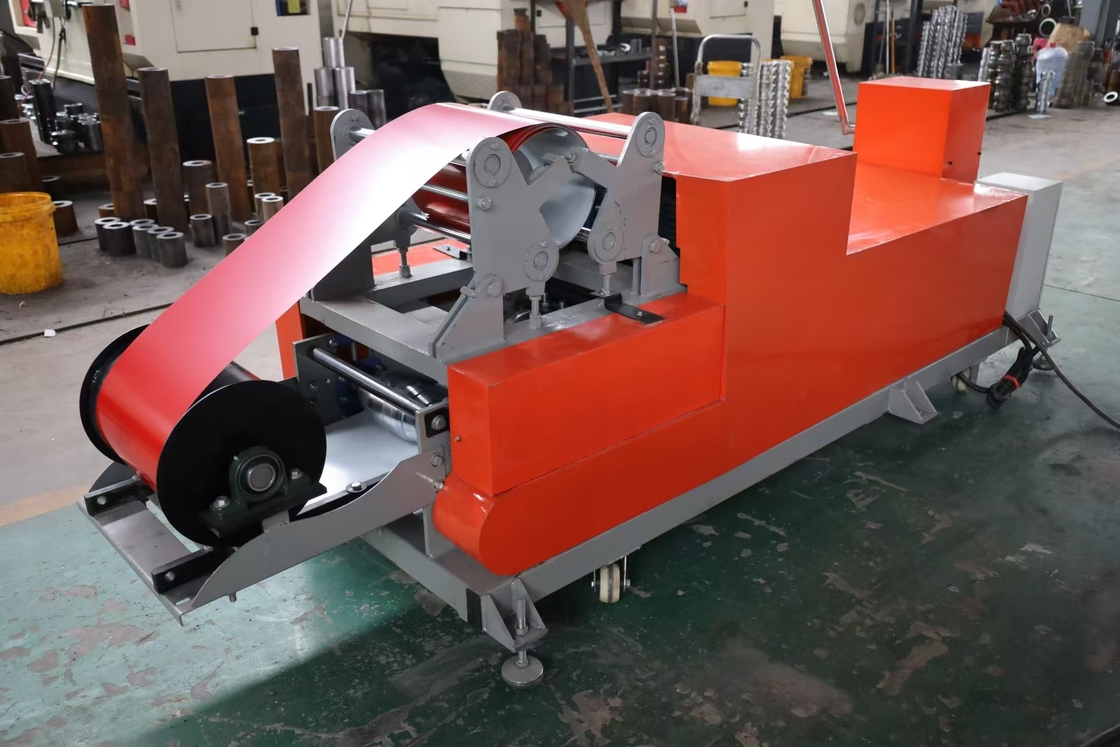

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 2









FAQ

1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 20 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

10. Q:Any certification?
A:Yes, we have SGS ISO certification.

Packaging & Shipping

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 31.All export goods will be packed according to customer requirements before shipment and used in roof sheet roll forming machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.

Payment Term

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of XinGang
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

After Sales Service

1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost

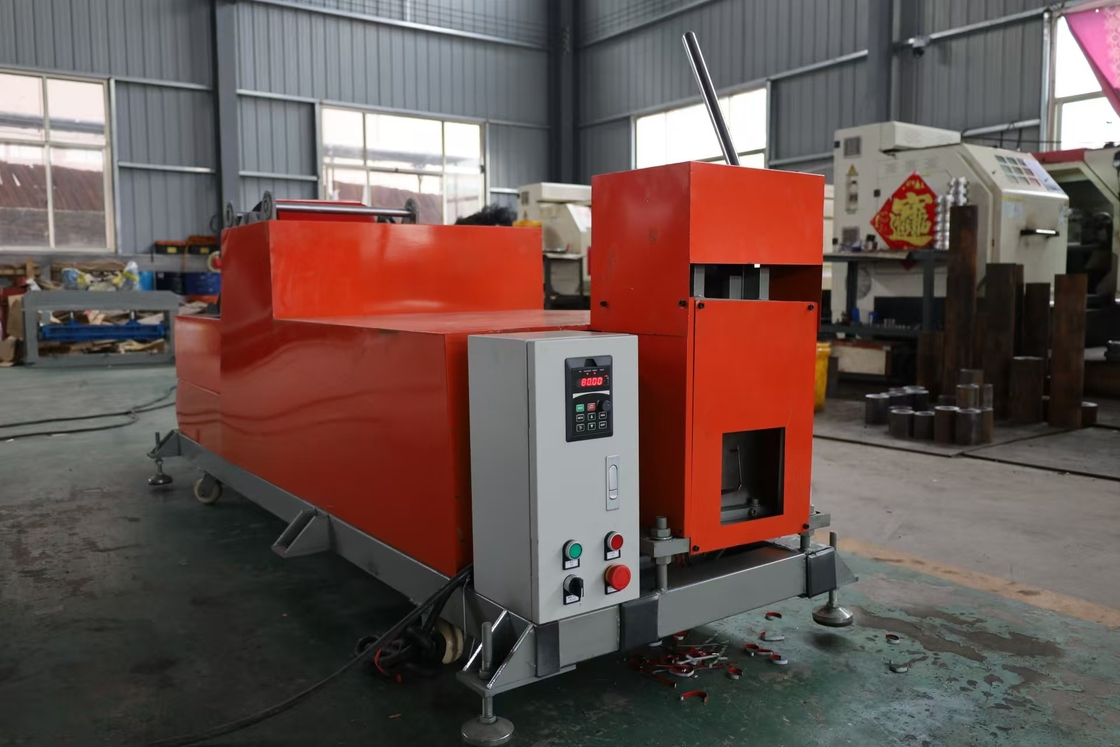

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 4Hydraulic Electric Downspout Making Machine For Aluminum Sheet 5

FAQ

1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 20 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

10. Q:Any certification?
A:Yes, we have SGS ISO certification.

Packaging & Shipping

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 31.All export goods will be packed according to customer requirements before shipment and used in roof sheet roll forming machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.

Payment Term

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of XinGang
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

After Sales Service

1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost

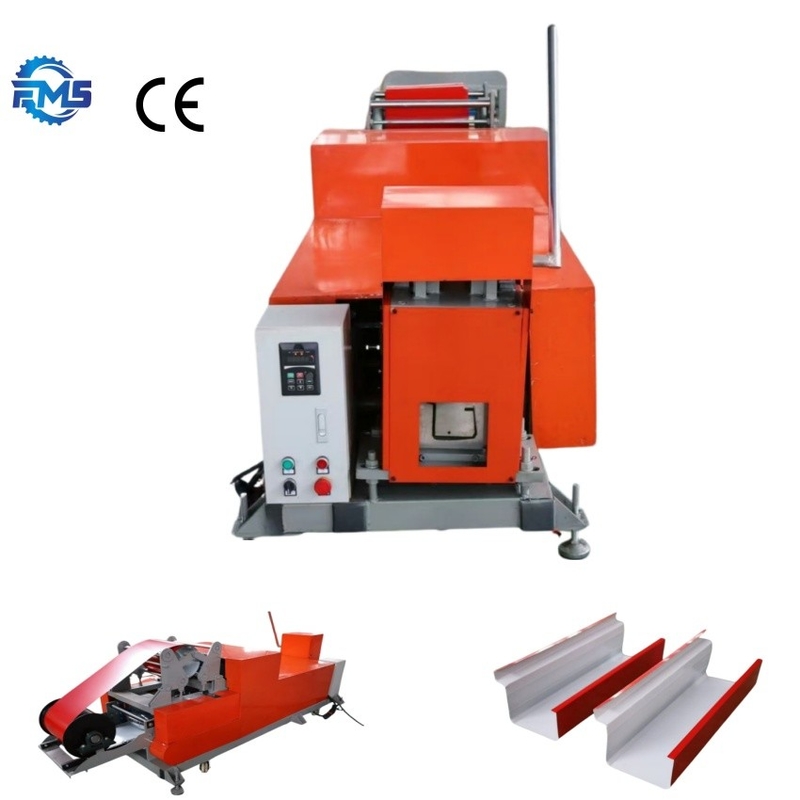

Hydraulic Electric Downspout Making Machine For Aluminum Sheet 7
