Deskripsi produk

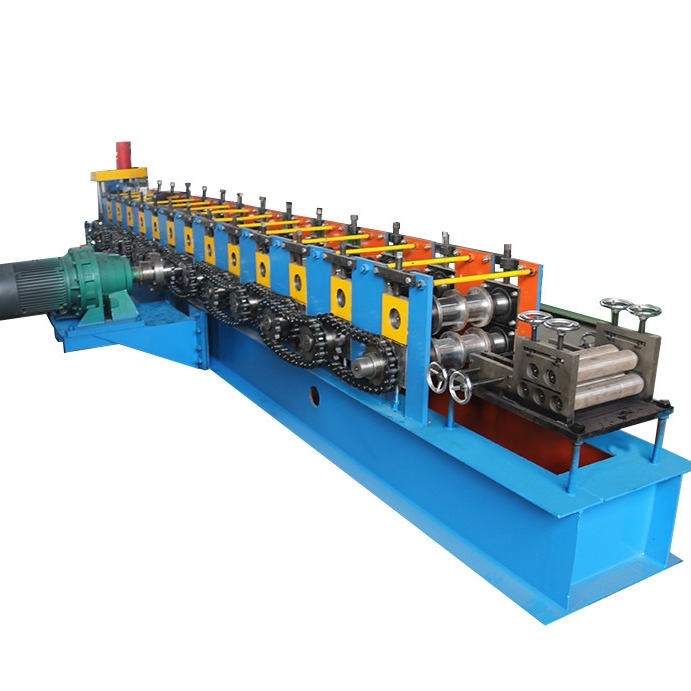

High Speed C U Channel Steel C Frame Purlin Roll Forming Machine

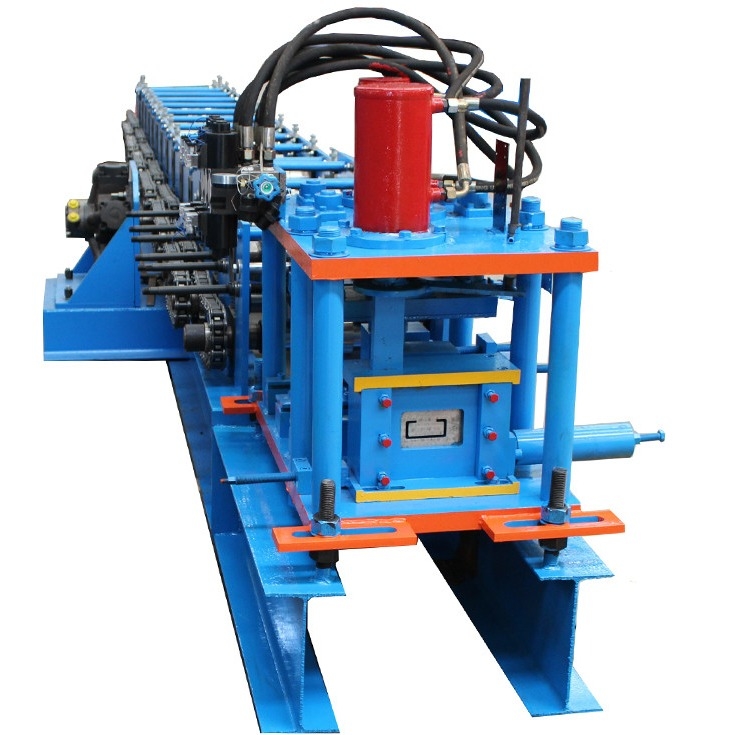

The C Purlin Roll Forming Machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The Manual galvanized steel C U purlin roll forming machine / C channel purlin machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 10 to 15 meters per minute, and the normal operation speed is 8 to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Thickness	1-2mm
Roller Station	18 Stations
Weight	2500 kg
Power	4KW
Production Capacity	15-20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
