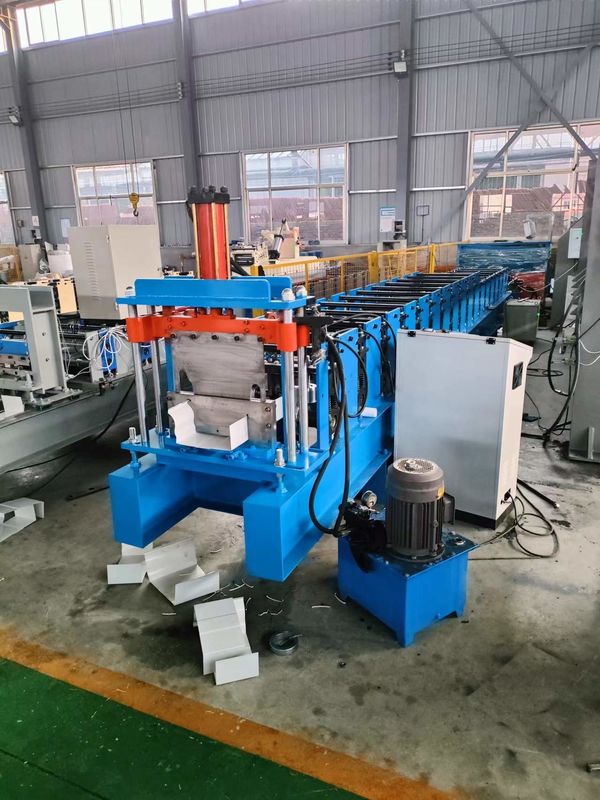

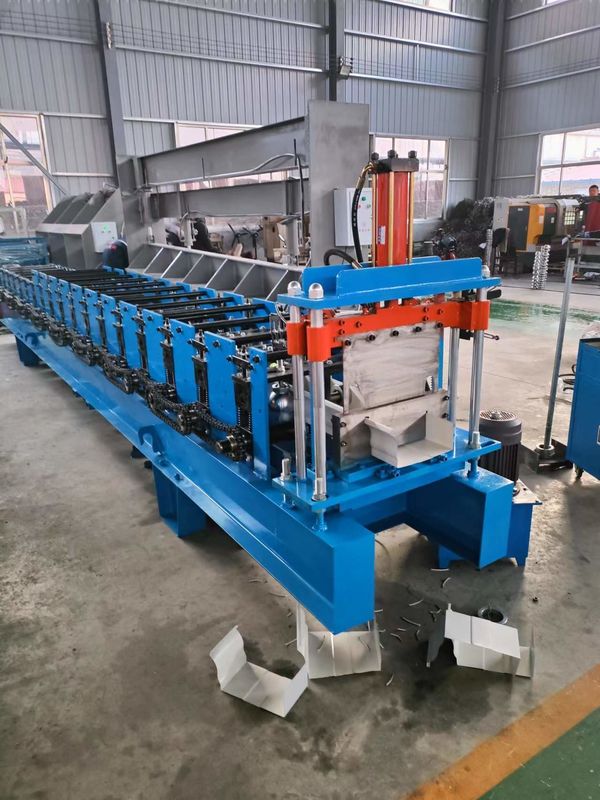

Cold Steel Gutter Forming Machine / Rain Gutter Machine Manufacturer

Cold Steel Gutter Forming Machine / Rain Gutter Machine Manufacturer

Gutter Forming Machine Manufacturer

Rain Gutter Forming Machine Manufacturer

Cold Steel Gutter Forming Machine Manufacturer

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami
Minta Penawaran Harga
Cold Steel Gutter Forming Machine / Rain Gutter Machine Manufacturer
Cold Steel Gutter Forming Machine / Rain Gutter Machine Manufacturer Cold Steel Gutter Forming Machine / Rain Gutter Machine Manufacturer
Detail Produk
Nama Produk:
Pembuatan Talang Atap Air Hujan Mesin Rolling Roll Forming Sistem Kontrol PLC
Tekanan kerja:
235 Mpa
Voltase:
380V/50HZ 3 Fase (sesuai Permintaan Pelanggan)
Sistem Pengendalian:
PLC
ketebalan bahan baku:
0,3-0,8 mm
Jaminan:
1 tahun
Kapasitas Produksi:
8-15m/mnt
Dimensi (P*L*T):
7500*800*1000mm
Tenaga motor stasiun hidrolik:
4 kW
Pemotongan:
Secara otomatis berhenti dan memotong ketika mencapai panjang yang ditentukan.
Menyoroti:

Gutter Forming Machine Manufacturer

,

Rain Gutter Forming Machine Manufacturer

,

Cold Steel Gutter Forming Machine Manufacturer

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
25 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation on line

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik
Harga bagus Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods on line

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik
Harga bagus Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor on line

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik
Harga bagus Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft on line

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Metal Rain Water Channel Roof Gutter Making Machine Plc Control System



    Metal Rain Water Channel Roof Gutter Making Machine Plc Control System .My Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.


Specification
Specifications for reference
Material of Shaft
70 mm 45#steel forged
13.0Material Thickness
0.3-0.8 mm
Working Speed
8-15 m/min
Main Motor Power
4 KW
Electrical Hydraulic Station Power
3 KW
Hydraulic Station Pressure
12.0 Mpa
Roller Station
16 Rows


Guarantee



   1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
