Name: 850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bergelombang-850
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting

850mm Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bergelombang-850

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Ubin Tipe Trapesium Pemotong Hidraulik 840mm

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan:

0,25-0,8mm

Jenis ubin:

mesin roll forming / mesin bahan bangunan

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

3.5kw

LEBAR BAHAN BAKU:

1000mm

Berat mesin:

3,15 T

Menyoroti:

850mm Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

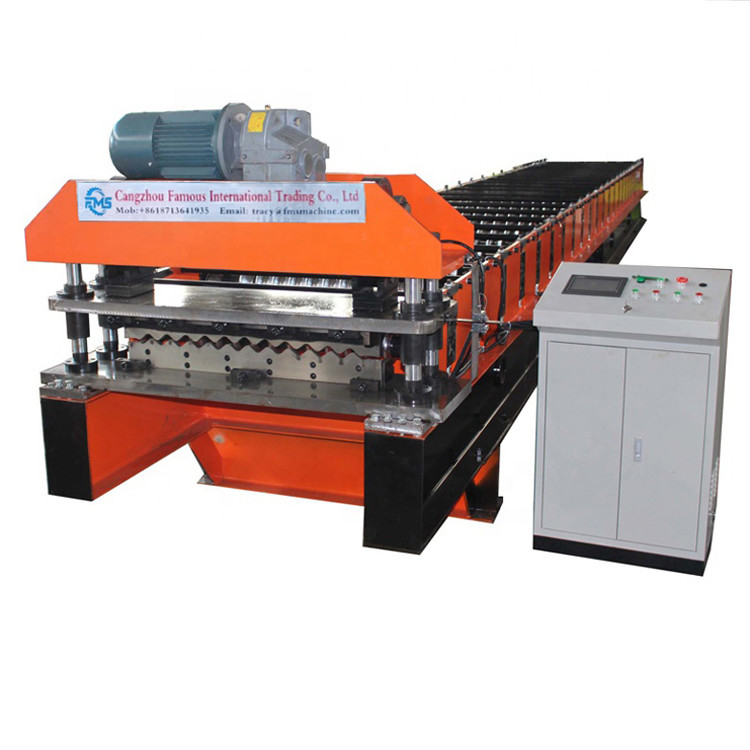

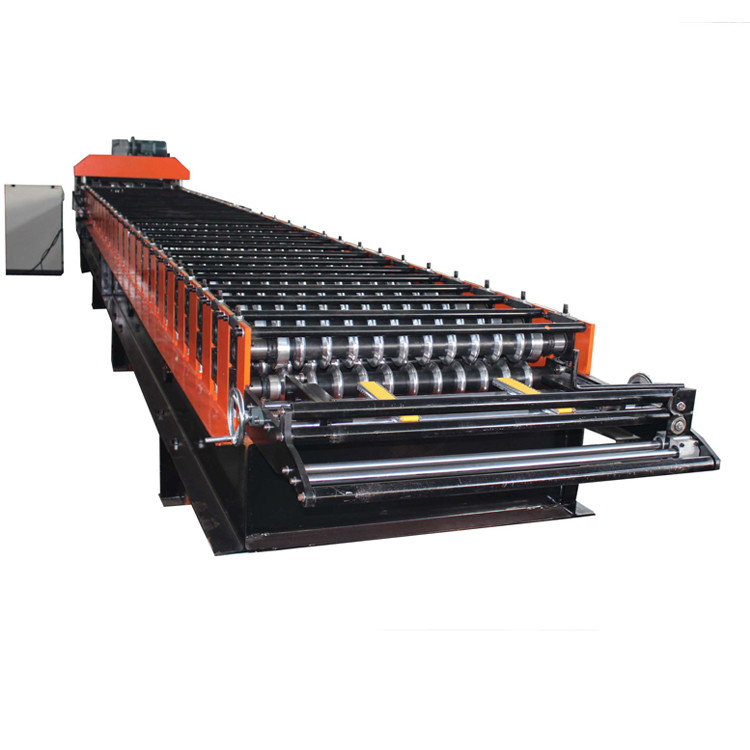

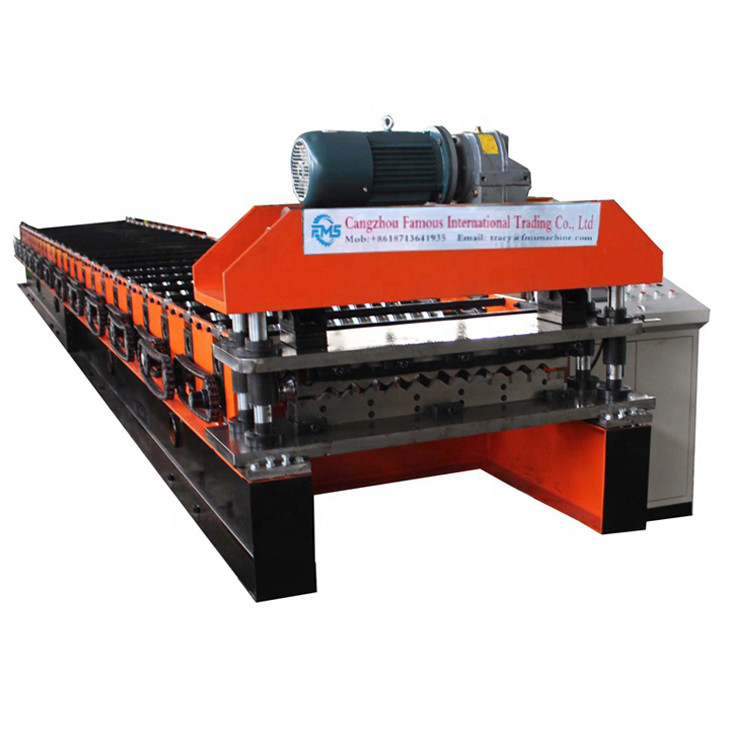

Hydraulic Cutting 850mm Corrugated Type Tile Forming Machine

The Corrugated roll forming machine is a machine produced by the steel coils material, forming and post -shaped cutting. color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	8-15m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used industrial and civil buildings, such as factory buildings, warehouses, gyms, exhibition halls, theaters, and other rooms, shopping centers, apartments, workshops, walls, and roofs.

Advantage

Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.

the Corrugated 850 roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
