4. Technique Parameters
(1). Main roll forming machine size: 4000*800*1200mm;
(2). Main roll forming machine weight: around 3000KGS;
(3). Main servo motor power: 7.5KW with self locking function;
(4). Hydraulic motor power: 5.5KW;
(5). Voltage: 380V/50HZ/3PH;
(6). Forming steps: 12 steps (8 main roller stations, 4 finishing roller stations);
(7). Forming speed: around 30m/min (depend on the punch qty and cut length);
(8). Working capability: 5~8 Tons/8 hours (It can work 24 hours);
(9). Material of roller: imported DC53 steel, CNC Center Machining, heat treatment HRC58-62°, fine grinding;
(10). Material of main shaft: 40Cr steel tempering and fine grinding;
(11). Sprocket wheel: #45 steel high-frequencies quench;
(12). Cut-off system: hydraulic cutting device;
(13). Material of blade: imported tungsten steel with quenched treatment 60-62°C;
(14). Tolerance for cutting and punching: ±0.5mm;
(15). Tolerance for forming: ±0.75mm;
(16). Control system: 19' touch screen and one main control box;
(17). Main electronic parts brand: Mitsubishi PLC from Japan, Schneider Relay from France, Omron Encoder from Japan, INVT Servo Motor from China;
(18). Material for frame of machine: fine welded structural steel;
(19). Painted color: Gray & Blue.
5. Main Accessories

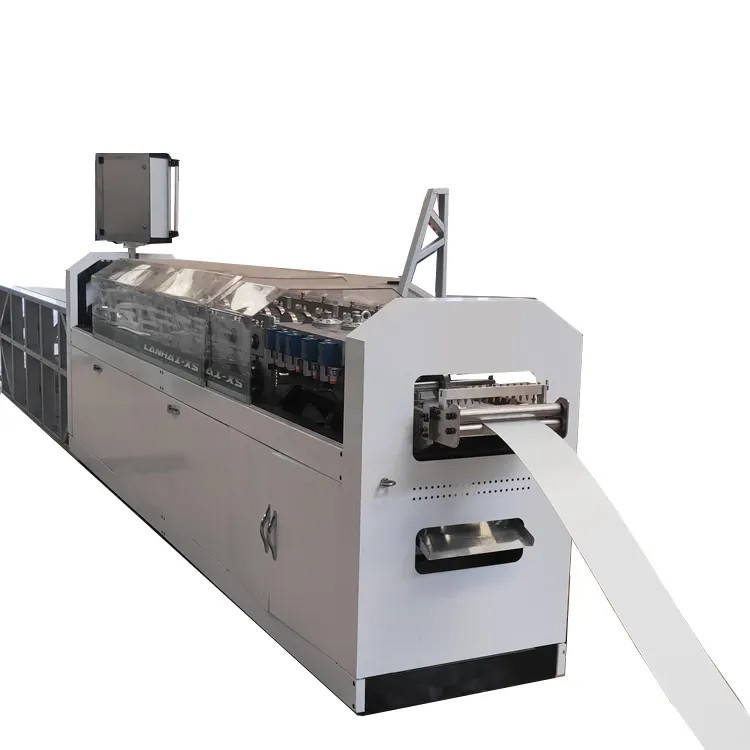

(1). Main Roll Forming Machine;
(2). 3 Tons Manual Un-coiler;
◊ Function: bearing steel coil, rotating steel coil; with micro-braking device to prevent inertia from running forward during emergency stop.
◊ Driving method: pulling by the roll forming machine;
◊ Max Loading Weight: 3 Tons;
◊ Inner Diameter: Φ430-590mm;
◊ Outer Diameter: ≤Φ1300mm;
(3). Driving and Hydraulic System;
(4). Equipment Control Software;
(5). Product Software: 1 set;
(6). (NO VERTEX SOFTWARE)VERTEX BD Design Software: 0 set;
(7). Automatic Punching Device (Service Hole, Dimple Hole, Lip Cut, Web Notch, Lip Notch, Blot Hole,Shrinking Groove );
(8). Hydraulic Post-cutting Device (material: SKD-11);
(9). Automatic Printing Device: print on two height sides symmetrical;
(10). Run Out Table: 4 meters.
|
