Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet

Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet

4kw metal sheets embossing machine

4kw steel plate embossing machine

diamond checker steel plate embossing machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Embossing

Hubungi Kami
Minta Penawaran Harga
Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet
Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet
Detail Produk
Nama Produk:
Mesin Roll Forming Dek Lantai Embossing Logam
Kondisi:
Baru
Dimensi (P*L*T):
7500*1700*1600Mm
Jaminan:
1 tahun
Kekuatan (w):
4KW
Sistem Pengendalian:
PLC
Menyoroti:

4kw metal sheets embossing machine

,

4kw steel plate embossing machine

,

diamond checker steel plate embossing machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

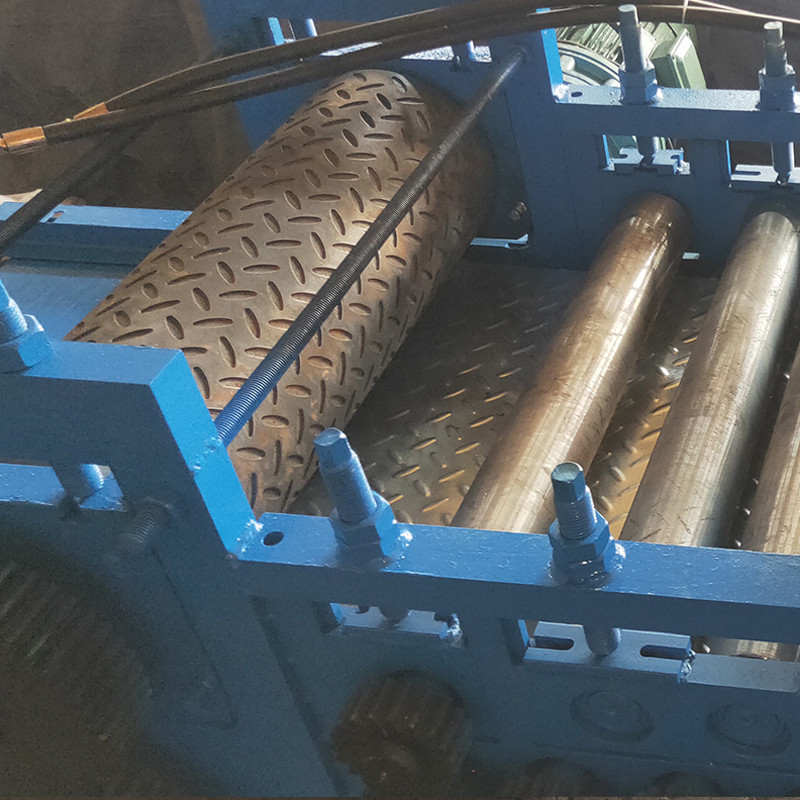

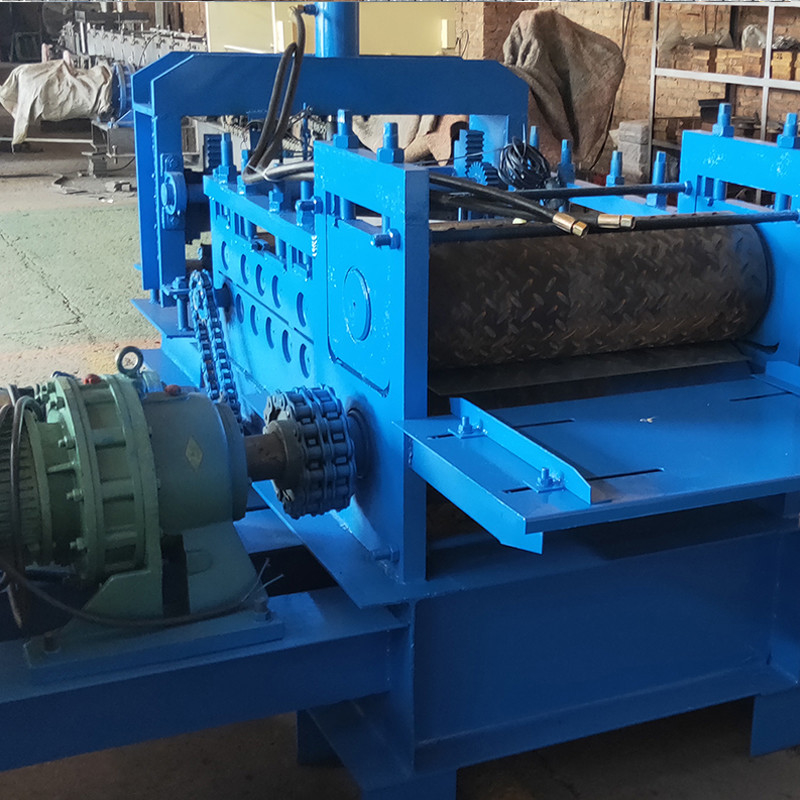

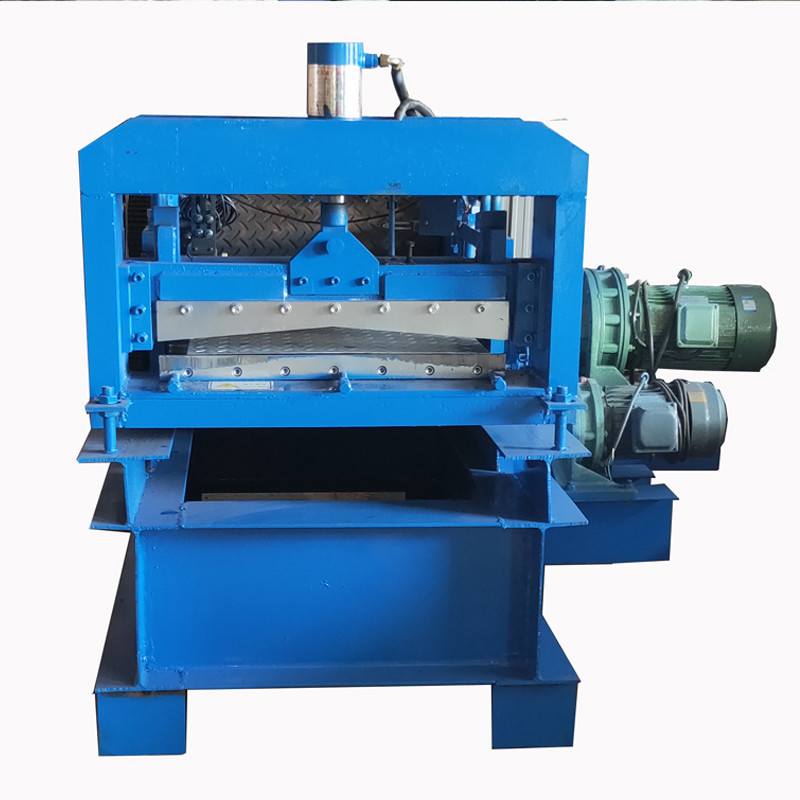

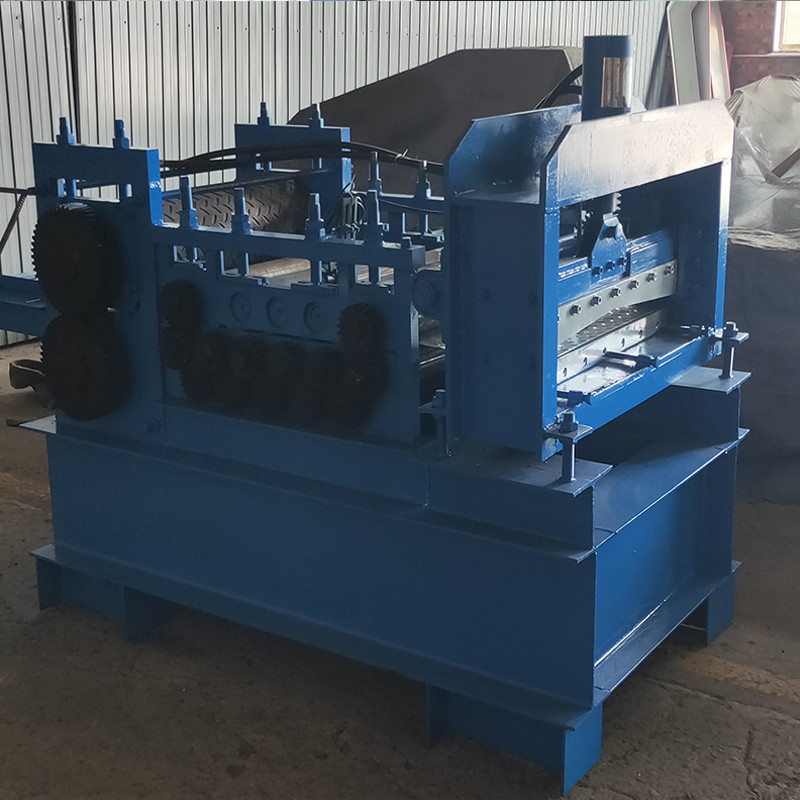

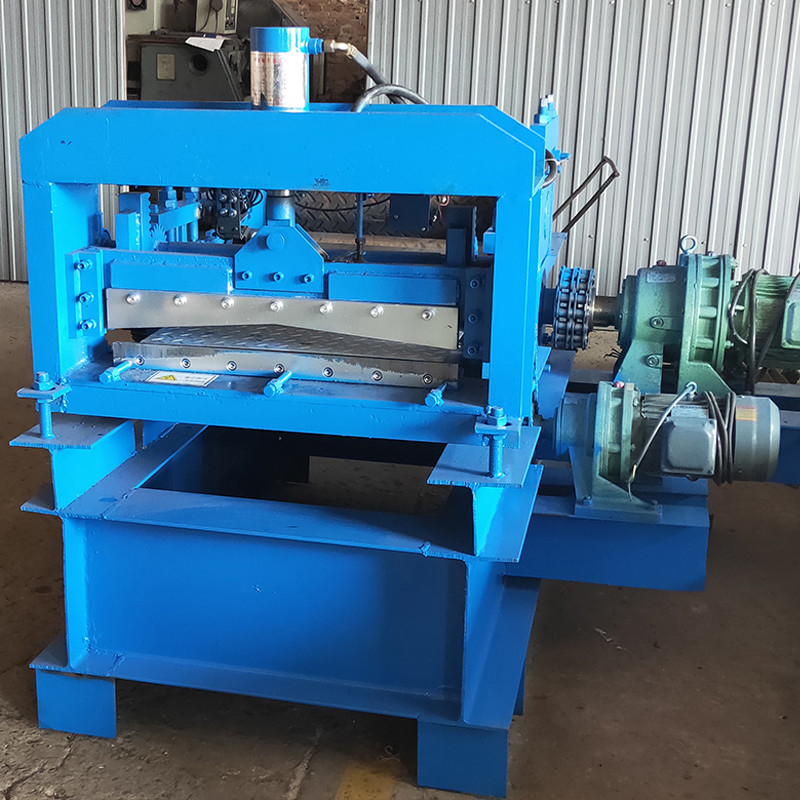

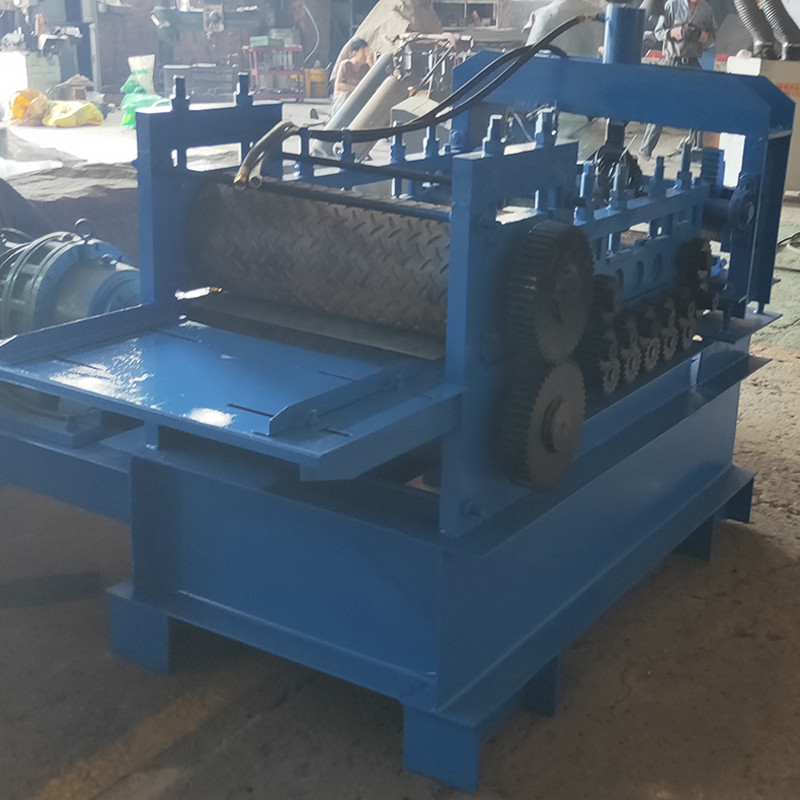

Metal Sheets Steel Plate Diamond Checker Sheet Embossing Machine



embossing machines are mainly for producing embossed aluminum and stainless metal sheets. metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line

Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 20-30 GA
3 Working Speed 3-5 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5

Dimension (L*W*H)

 7500 mm*1500 mm*1500 mm
6 Machine Weight 5800 KG
7

Electrical Control System

Panasonic PLC (can be customized)
8

Drive Motor Power

 7 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Small embossing machine, rolling floor deck with lightweight, heavy-duty bearings, beautiful appearance, seamless, good and convenient installation. It has been widely used in power plants, power equipment companies, automobile exhibition halls and steel structure seminars, cement warehouses, steel structure offices, airport docks, train stations, sports stadiums, music halls, music halls, large theaters, large supermarkets, logistics centers, Olympic Games venues, sports stadiums, and many other steel structure buildings



Advantage


1. Stable performance: The steel plate decoiler has uniform feeding speed and high stability.
2. Work: hydraulic synchronization and hydraulic punching system, improve work efficiency, precision and quality of finished products.
3. Good quality of the finished product: the floor deck produced by it is light in weight, heavy in load, and good in performance.


Metal Sheets 4kw Steel Plate Embossing Machine For Diamond Checker Sheet 0
