Name: High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bergelombang
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting

380v corrugated sheet roll forming machine

3phase corrugated sheet roll forming machine

high accuracy corrugated sheet rolling machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Nomor model:

Bergelombang

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lembaran Bergelombang Pemotong Hidraulik Akurasi Tinggi

Pemotongan:

Pemotongan hidrolik

Daya Stasiun Hidrolik:

3 kW

Berat:

3,5T

Bahan roller:

380V 3 fase 50Hz

Lebar makan:

0.3-0.8mm

Ketebalan material:

8-15 m/mnt

Ukuran penampilan:

5500mm*1500mm*1300mm

Menyoroti:

380v corrugated sheet roll forming machine

3phase corrugated sheet roll forming machine

high accuracy corrugated sheet rolling machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Corrugated Sheet Roll Forming Machine Wave type with high Accuracy cutting

Through a series of steps, this type of corrugated machine produces metal roofing sheets from GI/PPGI. As the motor speed , the length and quantity are controlled by the PLC system, resulting in continuous automatic production, which is ideal for cold roll forming.

Specification

ding host	Model	roof tile making machine
	Forming machine size	6500mm1500mm1300mm
	weight	3.5T
	frame structure	Frame welded
	Roll station	13 row
	Shaft materials	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	5.5 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	18mm

Application

The products produced by Roll Forming Machine have the characteristics of light weight, high strength, large bearing, and good shock resistance, and are widely used in the field of high -rise steel structures.

Advantage

Wave -type tile machine equipment includes: whole machine, PLC computer control system, dedicated shear equipment, professional hydraulic system. Color steel pressure -type equipment characteristics and use: The voltage plate formed by the company's color steel tile equipment rolling plate, which is solemn and elegant, beautiful and novel, and the appearance is flat, the wavelets are uniform, the utilization rate is high, the intensity is high, the production automation is high, high degree of production automation The cost is low and durable. Product owners are applied to large and medium -sized enterprises civilian buildings, such as factory buildings, garages, airplanes, stadium exhibition halls, movie theaters, etc.

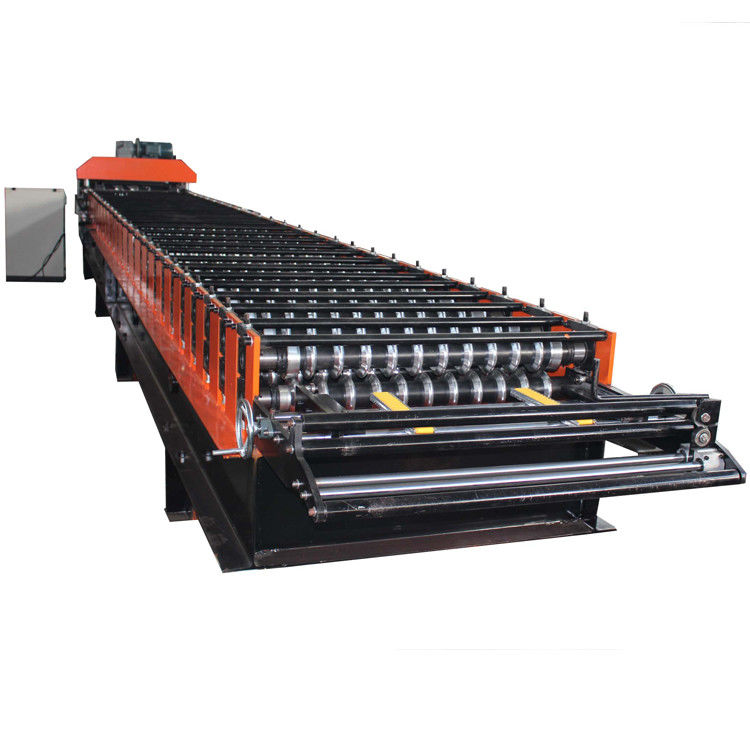

High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting 0
