840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting

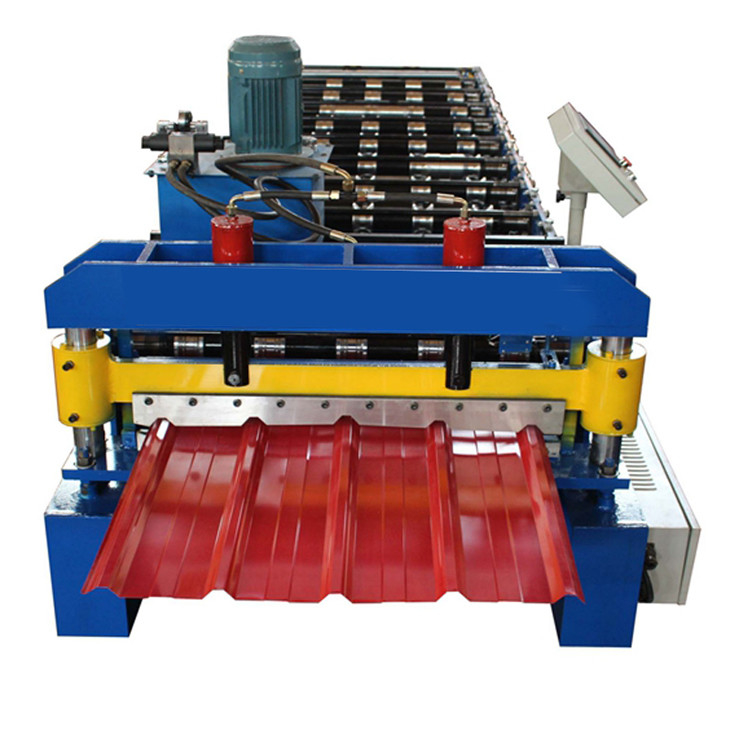

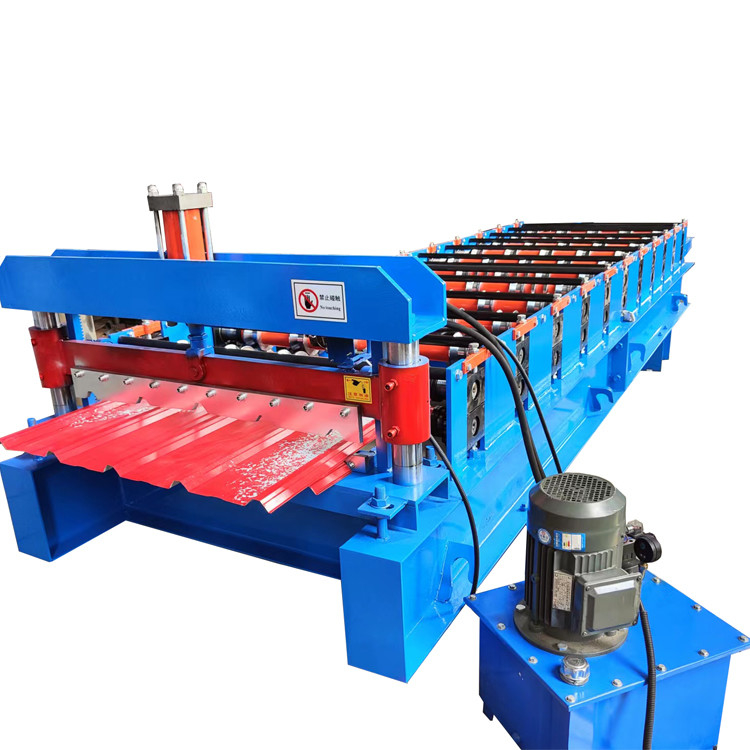

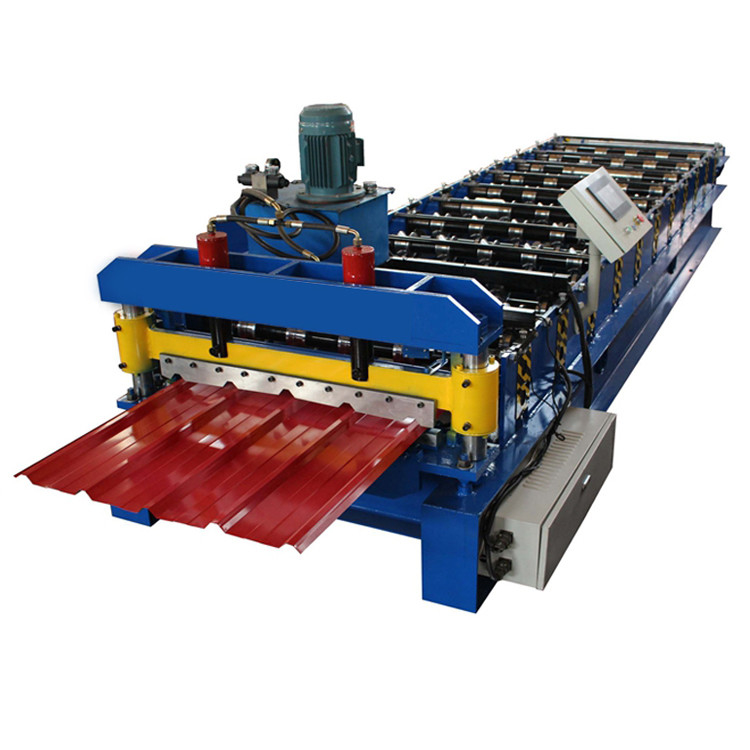

840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting

840mm tile forming machine

hydraulic cutting tile forming machine

840mm roof tile making machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

IBR 840

Hubungi Kami
Minta Penawaran Harga
840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting
840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting
Detail Produk
Nama Produk:
Mesin Pembentuk Ubin Tipe Trapesium Pemotong Hidraulik 840mm
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem kontrol:
PLC
Ketebalan:
0,25-0,8mm
Jenis ubin:
mesin roll forming / mesin bahan bangunan
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Tenaga Motorik:
3.5kw
LEBAR BAHAN BAKU:
1000mm
Berat mesin:
3,15 T
Menyoroti:

840mm tile forming machine

,

hydraulic cutting tile forming machine

,

840mm roof tile making machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine

The roll forming machine is a machine produced by the material, molding, and post -shaped cutting. Its color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.



Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 15-20m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 4KW
9

Hydraulic Station Power

 4KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application




They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.


Advantage

With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.

With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.

The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.

We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.
