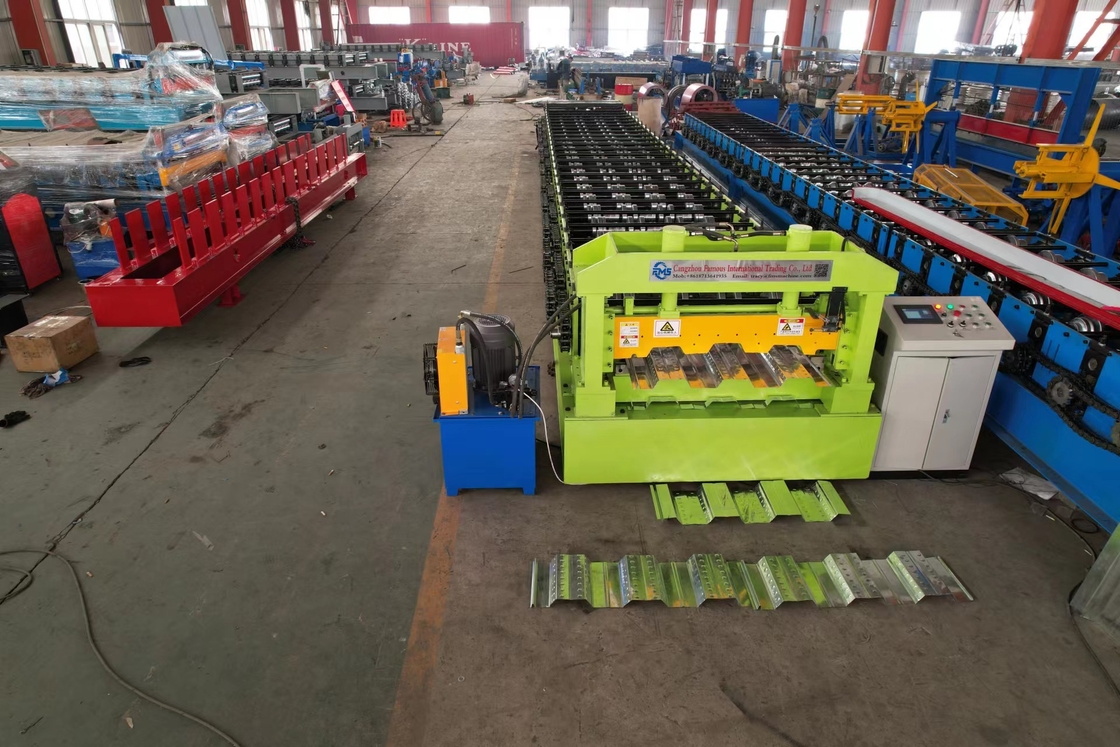

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

45 steel deck roll forming machine

excellent performance deck roll forming machine

7.5KW metal deck roll forming machine

Hubungi Kami
Minta Penawaran Harga
Detail Produk
Voltase:
380V/50Hz/3Phase
Kekuatan:
7.5kw
Sistem Pengendalian:
PLC
Bahan:
Baja galvanis
Berat:
4.5t
Nama Produk:
Mesin Membentuk Rol Dek Lantai
Diameter rol:
70mm
Diameter poros:
50mm
Menyoroti:

45 steel deck roll forming machine

,

excellent performance deck roll forming machine

,

7.5KW metal deck roll forming machine

Syarat Pembayaran & Pengiriman
Deskripsi produk

Product Description:

Our floor deck roll forming machine is the perfect choice for making galvanized steel floor decking steel sheets. It features a thickness of 0.3-0.8mm, 13-18 roller stations, 45# steel roller material, 7.5KW power, and a 50mm shaft diameter. It is a highly precise and reliable machine that produces superior quality floor deck sheets with exceptional consistency. It is also equipped with advanced safety features for maximum safety during operation. With its user-friendly interface, the floor deck roll forming machine can be easily operated and monitored, making it ideal for those who need to make high-quality floor deck sheets in a short amount of time.



Technical Parameters:

Technical Parameters Value
Cutting Tolerance ±2mm
Material Galvanized Steel
Weight 4.5T
Power 7.5KW
Voltage 380V/50HZ/3Phase
Thickness 0.3-0.8mm
Roller Stations 13-18 Stations
Shaft Material 45# Steel
Roller Material 45# Steel
Cutting Mode Hydraulic Cutting


Applications:

Floor Deck Roll Forming Machine Application Scenarios

The Floor Deck Roll Forming Machine is suitable for producing close type floor deck and galvanized steel floor decking steel sheet. This machine is powered by a 7.5KW motor and features a 45# steel shaft and 70mm roller diameter. The shaft diameter of the Floor Deck Roll Forming Machine is 50mm. This machine is highly efficient and can produce large quantities of floor decks at high speed. It is also energy-efficient and cost-effective. This machine is widely used in the construction industry to produce floor decks for residential and commercial buildings. It can also be used in the manufacturing of steel plates for various industrial and commercial applications. The machine is also suitable for producing galvanized steel floor decking steel sheets for use in roofing, wall cladding, and other applications. The machine is easy to operate and maintain, and it is also highly reliable and durable.

Support and Services:

We provide technical support and services for Floor Deck Roll Forming Machine. Our services include:

  • Troubleshooting and repair for existing Floor Deck Roll Forming Machine
  • Technical consultation and maintenance
  • On-site installation, commissioning and training
  • Software updating and upgrading
  • Spare parts supply, replacement and customization



Packing and Shipping:

Packaging and Shipping for Floor Deck Roll Forming Machine:

The floor deck roll forming machine will be packaged in a wooden box with a foam lining for extra protection. The box will be labeled with the product name, model number, and serial number. After the machine is packaged, it will be shipped out within 2-4 business days.



FAQ:

Q1: What is Floor Deck Roll Forming Machine? A1: Floor Deck Roll Forming Machine is a machine that is used to produce floor decking for construction purposes. It is a cost-effective solution that allows you to easily and quickly form metal sheets into floor decking. Q2: What materials can Floor Deck Roll Forming Machine work with? A2: Floor Deck Roll Forming Machine can work with steel, aluminum, copper, and other metal materials. Q3: What is the maximum width of floor decking that Floor Deck Roll Forming Machine can produce? A3: The maximum width of floor decking that can be produced by Floor Deck Roll Forming Machine is up to 600 mm. Q4: What is the speed of Floor Deck Roll Forming Machine? A4: The speed of Floor Deck Roll Forming Machine is up to 10m/min. Q5: What is the power requirement of Floor Deck Roll Forming Machine? A5: The power requirement of Floor Deck Roll Forming Machine is 3.75kw.
