Name: Full Automatic Perforated Type Cable Tray Production Line 380v50hz
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Baki kabel
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Full Automatic Perforated Type Cable Tray Production Line 380v50hz

perforated type cable tray production line

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Nomor model:

Baki kabel

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Otomatis Penuh Mesin Roll Forming Baki Kabel Tipe Berlubang

Lebar profil:

90-600mm

Tinggi profil:

50mm-100mm

Voltase:

380V50Hz 3PH sesuai permintaan

Motor utama:

7,5 kW

Ketebalan material:

Kumparan galvanis 1,0-2,1 mm

Otomatisasi:

Otomatis

Bahan roller:

45 # baja tempa

Ukuran Panjang mesin:

13000mm* Lebar 800mm* Tinggi 1000m

Menyoroti:

perforated type cable tray production line

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

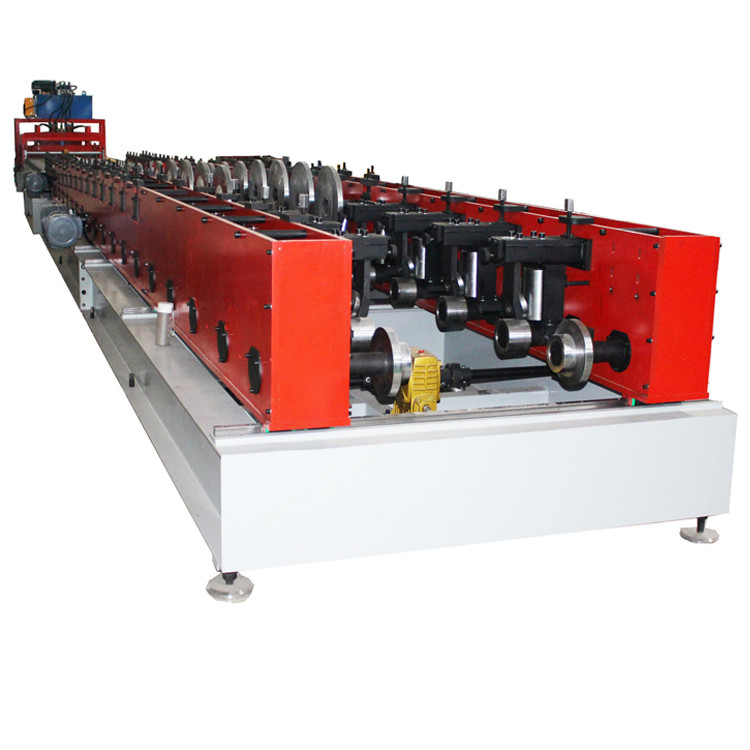

Full Automatic Production Line Perforated Type Cable Tray Roll Forming Machine

Ventilated tray is made of ladder side,bottom plate and cross arm.they are made of profiles materials. The length of the standard is 2m per session. Long-span distance is 6m per session.

Profile material are made of aluminium alloy& stainless steel& Galvanized steel.
Main cable ladders range are designed to be a cost effective cable support system for high volumes of heavy weight cables. they can support very high loads, over long spans and provide cable laying depths from 200 up to 800 mm.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

Advantage

1. Full automatic steel cable tray production line.
2. As a manufacturer, we could delivery more faster, 10days for a 20ft container.
3. Competitive price, comparing with the distributor and warehouse, we are more cheaper.
4. Faster and effective solution to problem.
5. Using PLC control system for cutting the sizing products.
