Name: Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Baki kabel
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom

90mm automatic roll forming machine

cable tray automatic roll forming machine

perforated type cable tray roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Nomor model:

Baki kabel

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Ukuran Mesin Roll Forming Baki Kabel Profil yang Dapat Diubah Kontrol PLC

Lebar profil:

90-600mm

Tinggi profil:

50mm-100mm

Voltase:

380V 50Hz 3PH sesuai permintaan

Motor utama:

7,5 kW

Ketebalan material:

Kumparan Galvanis 1,0-2,0mm

Otomatisasi:

Otomatis

Bahan roller:

45 # baja tempa

Ukuran Panjang mesin:

11000mm* Lebar 800mm* Tinggi 1000m

Menyoroti:

90mm automatic roll forming machine

cable tray automatic roll forming machine

perforated type cable tray roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Automatic Perforated Type Cable Tray cover and bottom roll forming machine

With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.

With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.

The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 90 days after the down payment is received.

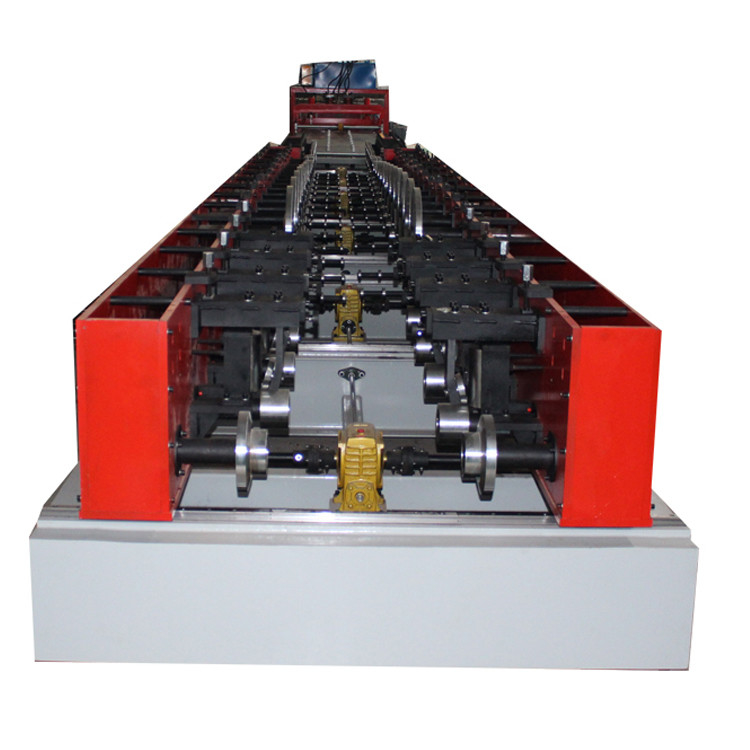

Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom 0
