Plc Control Channel Roll Forming Machine Hydraulic Cutting

Plc Control Channel Roll Forming Machine Hydraulic Cutting

plc control channel roll forming machine

hydraulic cutting channel roll forming machine

hydraulic cutting channel rolling machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

pintu rana

Hubungi Kami
Minta Penawaran Harga
Plc Control Channel Roll Forming Machine Hydraulic Cutting
Plc Control Channel Roll Forming Machine Hydraulic Cutting Plc Control Channel Roll Forming Machine Hydraulic Cutting Plc Control Channel Roll Forming Machine Hydraulic Cutting Plc Control Channel Roll Forming Machine Hydraulic Cutting Plc Control Channel Roll Forming Machine Hydraulic Cutting
Detail Produk
Nama Produk:
Mesin Pembuat Pintu Panel Mesin Rolling Shutter Slats Roller Forming
Kecepatan:
15m/mnt
Voltase:
380V 50Hz 3 Fase Atau Pelangganisasi
Bahan pemotongan:
45# Baja Tempa Disepuh dengan Krom Keras
Komponen inti:
Motor, Bantalan, Roda Gigi, Pompa, PLC
Kekuatan:
3kw/5.5kw
Sistem Pengendalian:
PLC
Berat:
1500 kg
Menyoroti:

plc control channel roll forming machine

,

hydraulic cutting channel roll forming machine

,

hydraulic cutting channel rolling machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

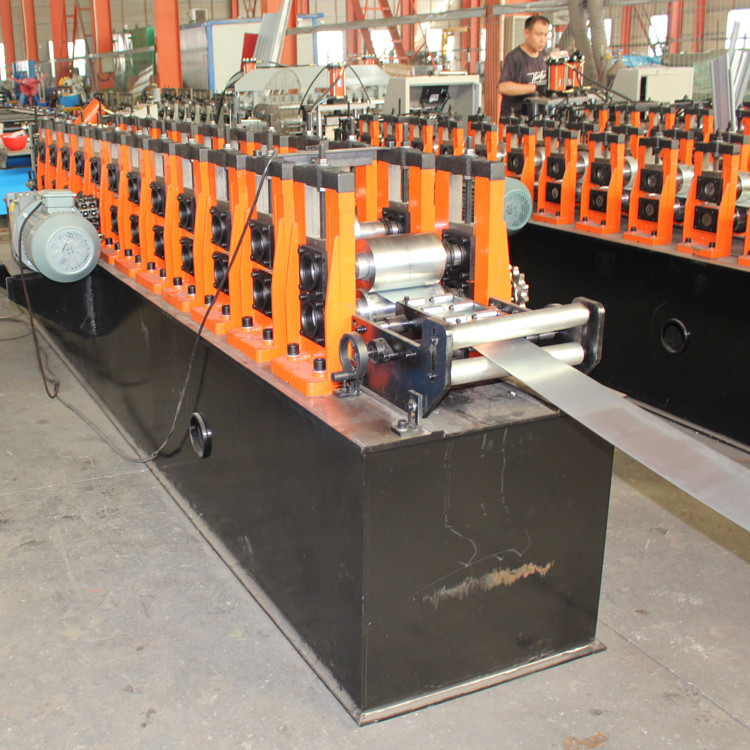

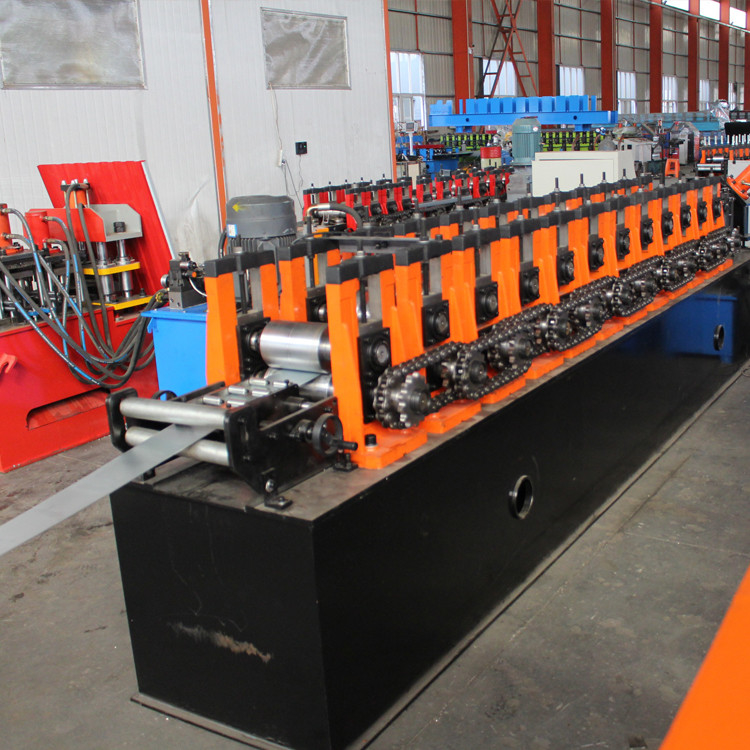

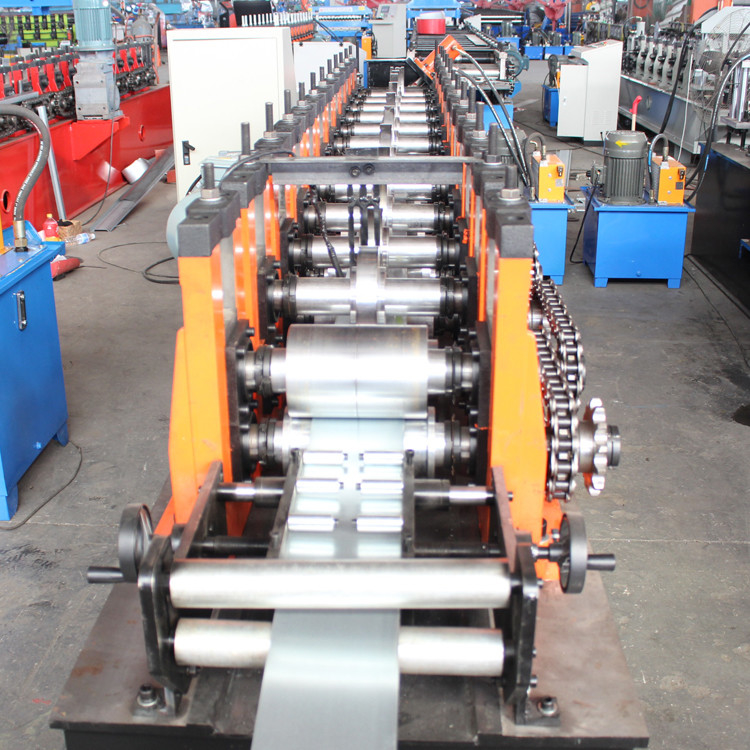

Roller shutter channel U shape channel roll forming machine



the product produce by this machine using for built shutter door system. it works at the side of shutter slat. the channel deep can be adjusted according to customer requested. we also make shutter door slat roll forming machine ,shutter door slat bottom machine to composition the whole shutter door system.


Specification



No
Item
Specification

Material
Raw material
GI or PPGI
Material thickness
0.7-1.2MM






Machine body
Roller material
High grade 45# steel with Cr12 quenched
Shaft material
High grade 45# steel with Cr12 quenched
Shaft diameter
50mm
Roller stations
14
Middle plate thickness
16mm
Machine size
5*0.8*1.2m
Productivity
8-15m/min

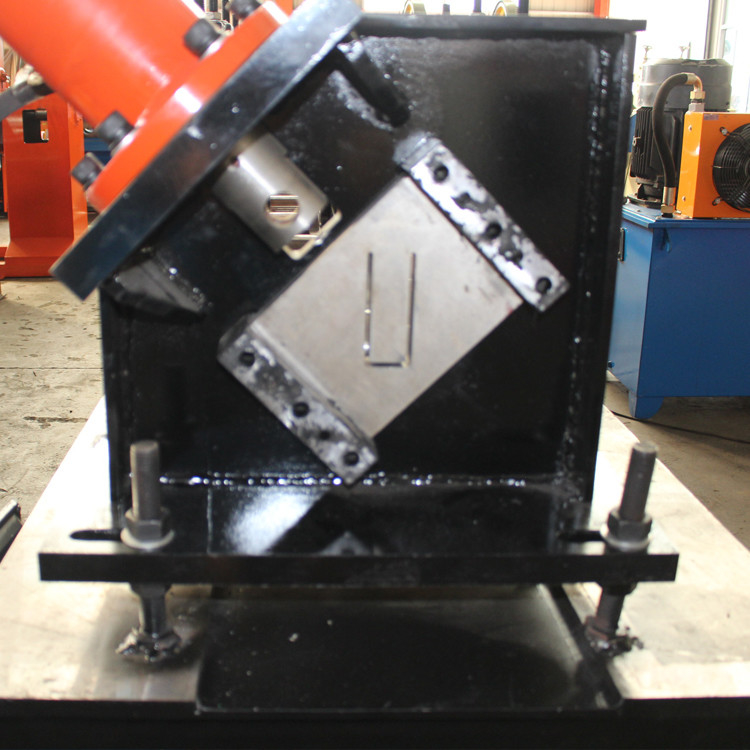

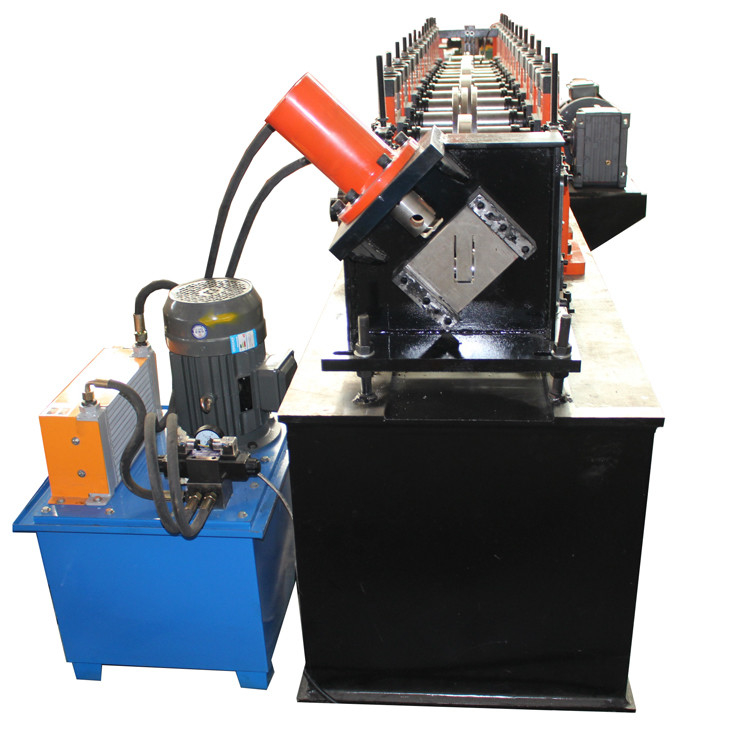

Cutter
Material
GCR12
Method
Hydraulic cutting



Power
Driving way

Chain 1.2 inch
Motor
4KW
Hydraulic oil pump
3KW
Voltage
380V,50HZ ,3 phase or customized as your need




Plc Control Channel Roll Forming Machine Hydraulic Cutting 0


Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
