Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting

Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting

Galvalume roof roll forming machine

high accuracy roof roll forming machine

low noise metal roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Panel samping EPS

Hubungi Kami
Minta Penawaran Harga
Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting
Detail Produk
Nama Produk:
Mesin Roll Forming Panel Samping EPS Pemotongan Hidraulik Akurasi Tinggi
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem kontrol:
PLC
Ketebalan:
0.3-0.8mm
Jenis ubin:
mesin roll forming / mesin bahan bangunan
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Tenaga Motorik:
3.5kw
LEBAR BAHAN BAKU:
1200
Berat mesin:
2,9 ton
Menyoroti:

Galvalume roof roll forming machine

,

high accuracy roof roll forming machine

,

low noise metal roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
25 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

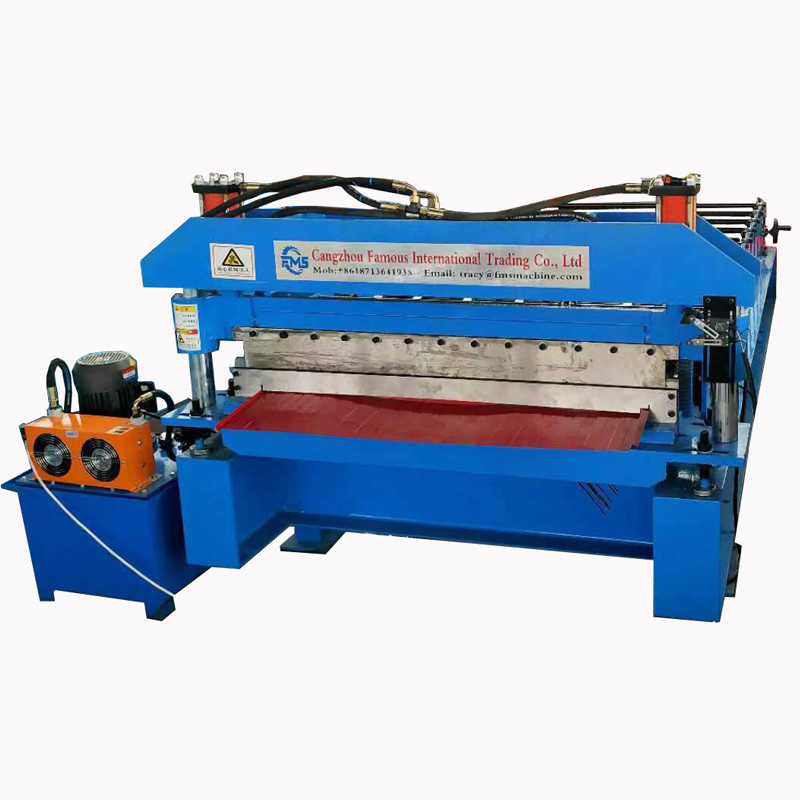

High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine



High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is accompanied by the efficient integration of PLC  control system,equip with  hydraulic cutting  system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers

the profile can be made according to customer requirement.





Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 6 Row
5

Dimension (L*W*H)

 3500 mm*1200 mm*1100 mm
6 Machine Weight 2900 KG
7

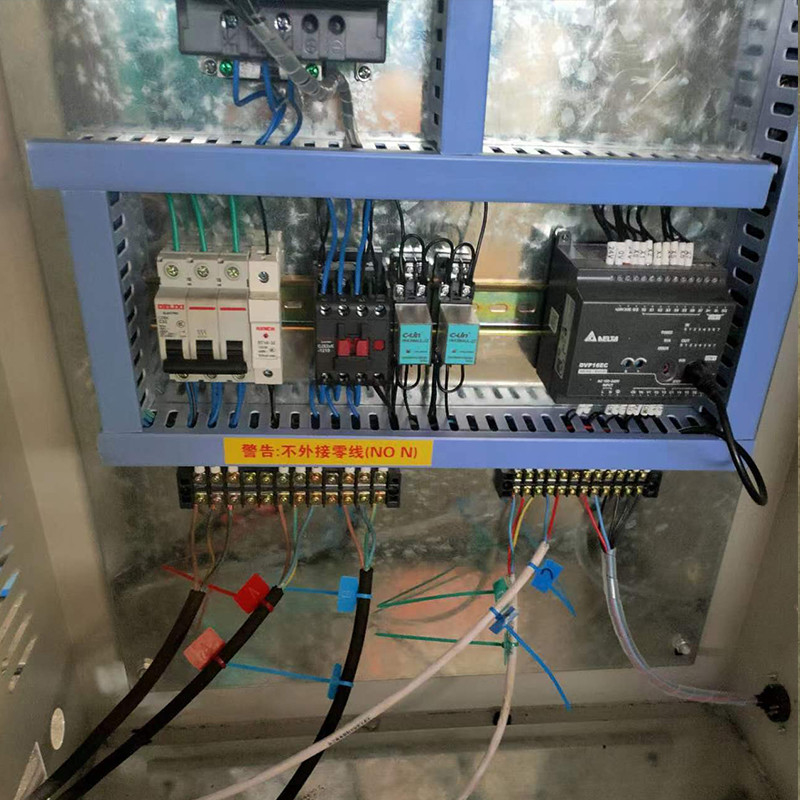

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 3.5KW
9

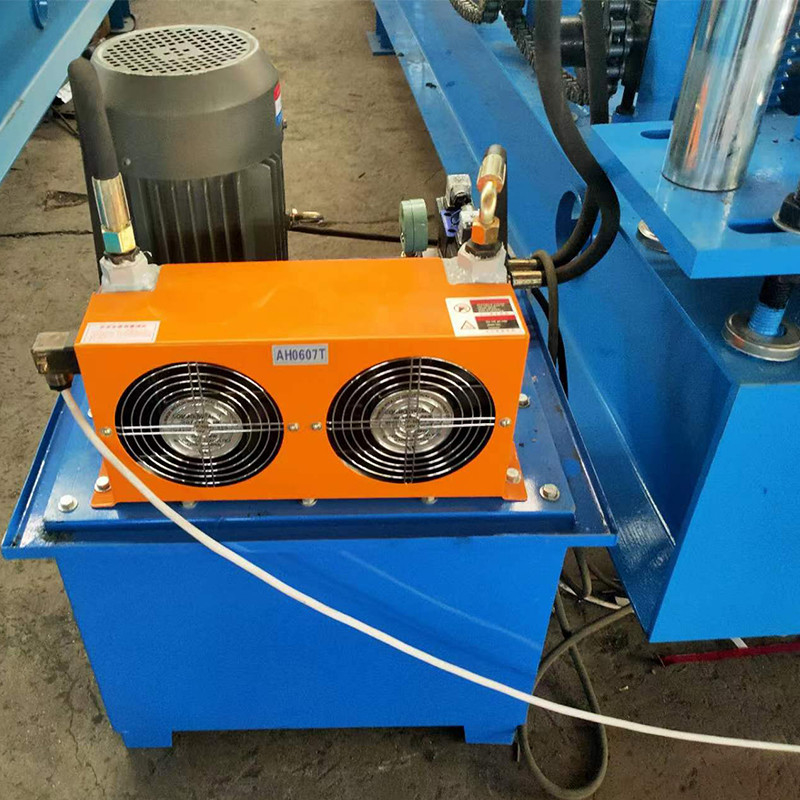

Hydraulic Station Power

 3.5KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is made side panel which is using for eps sandwich panel . due to it have good looking ,long service life ,high quality , it widely used in  workshop wall and roofing , shopping mall wall and roofing , garage wall and roofing etc.



Advantage



The advantages of EPS side panel are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
