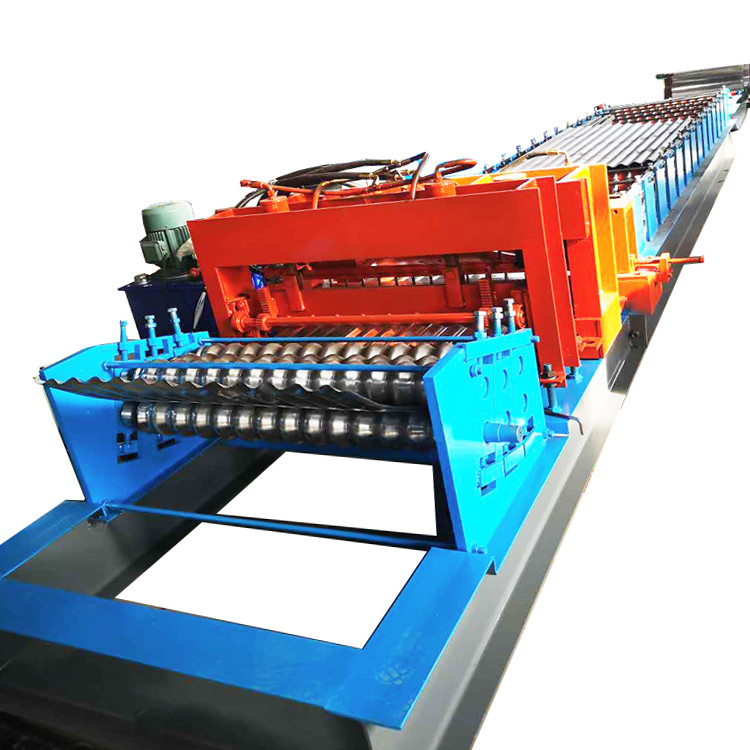

Name: Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

Silo Wall Sheet Roll Forming Machine

Galvanized Metal Sheet Roll Forming Machine

CE corrugated roof roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

Detail Produk

Deskripsi produk:

Mesin Roll Forming Lembaran Dinding Silo Penyimpanan Biji-bijian Bergelombang Baja Galvanis Logam

Bahan mentah:

GL GI PPGL PPGI

Dimensi (P*L*T):

8,5*1,65*1,5m

Lebar makan:

914-1450mm

Thinckness:

0,9-3,5 mm

Voltase:

380V 50Hz 3Phase

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Motor utama:

15+5,5KW

Berat:

sekitar 12500kg

Kecepatan:

1-2 buah/menit

Menyoroti:

Silo Wall Sheet Roll Forming Machine

Galvanized Metal Sheet Roll Forming Machine

CE corrugated roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

This equipment can be widely used in grain storage enterprises and food processing enterprises. It can effectively kill pests in grain piles including eggs, pupae, etc. during various growth periods. It is an indispensable and ideal storage equipment for national grain storage depots.

Main Features
1. The roll forming machine can rollform metal profile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7. One roll forming machine can produce one or two profiles.

.
Detailed Parameters:

Suit material	Gi /Carbon steel/Stainless steel
Feeding width	1000mm
Sheet thickness	0.9-3 5mm
Roller material	Bearing steel, heat treatment, surface polishing, hard chromium plating
Power	Main power 30kw+hydraulic station 22kw
Roller station	20 rollers
Leveling roller station	9 rollers
Speed	1-2 pcs/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
