Name: Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: C Purlin
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting

C Channel Purlin Roll Forming Machine

U Channel Purlin Roll Forming Machine

Hydraulic Cutting purlin roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

C Purlin

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Purlin Saluran C & U Baja Dingin Pemotongan Hidrolik

Kecepatan Bentuk:

15-20m/mnt

Voltase:

380 V atau sesuai gambar

Motor hidrolik:

7.5kw

Otomatisasi:

Otomatis

Cutting Blade Material:

Kr 12 Bergerak

Berat:

4000kg

Stasiun rol:

14 Mentah

Menyoroti:

C Channel Purlin Roll Forming Machine

U Channel Purlin Roll Forming Machine

Hydraulic Cutting purlin roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

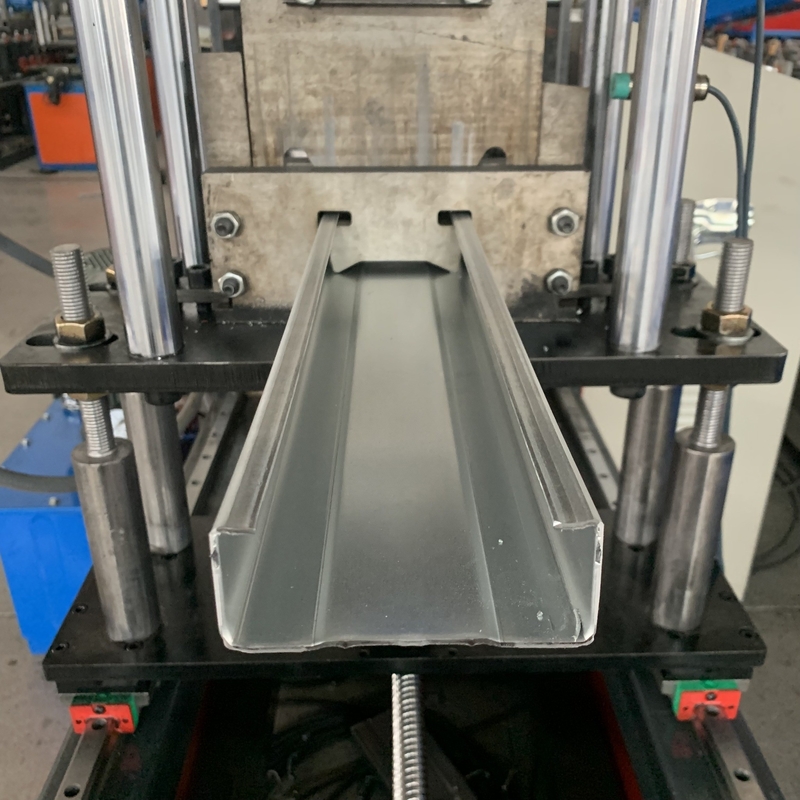

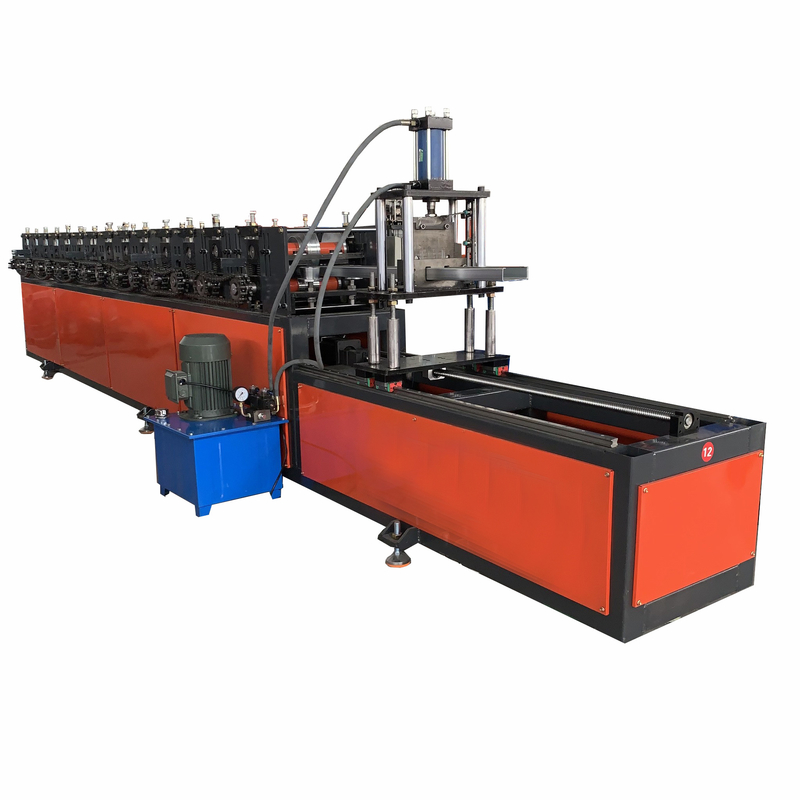

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2
minutes can finished the changing size. This machine can be customized. Just send us your smaple, we will design and produce the machine for you.

You can automatically complete the molding process according to the given sizes. It is suitable for industrial and civilian buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and internal and external wall decorations. It has light quality, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, life span The characteristics of long, exempt maintenance, have been widely promoted and applied to the color steel encirclement building system

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
main motor	7.5kw
Weight	4000kg
main shaft diameter	80mm
material thickness	1.2-2.5mm
Hydraulic Station Pressure	12.0 Mpa
Warranty of core components	1 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
