Color Steel Roll Metal Roof Ridge Cap Roll Forming Machine PCL Control

0.8mm Ridge Cap Roll Forming Machine

metal roof tile making machine

PCL Ridge Cap Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Ridge Cap Baja Warna Roll Forming Atap Logam Ridge Cap Mesin Roll Forming

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Ketebalan:

0,3-0,8 mm

Spesifikasi:

6500x850x1250mm

Tenaga Motorik:

4KW

Akurasi pemotongan:

±2 mm

Bahan Pemotong:

Cr12 Bergerak HRC 58-62

Nilai Otomasi:

Otomatis

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Sistem Pengendalian:

PCL

Menyoroti:

0.8mm Ridge Cap Roll Forming Machine

metal roof tile making machine

PCL Ridge Cap Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

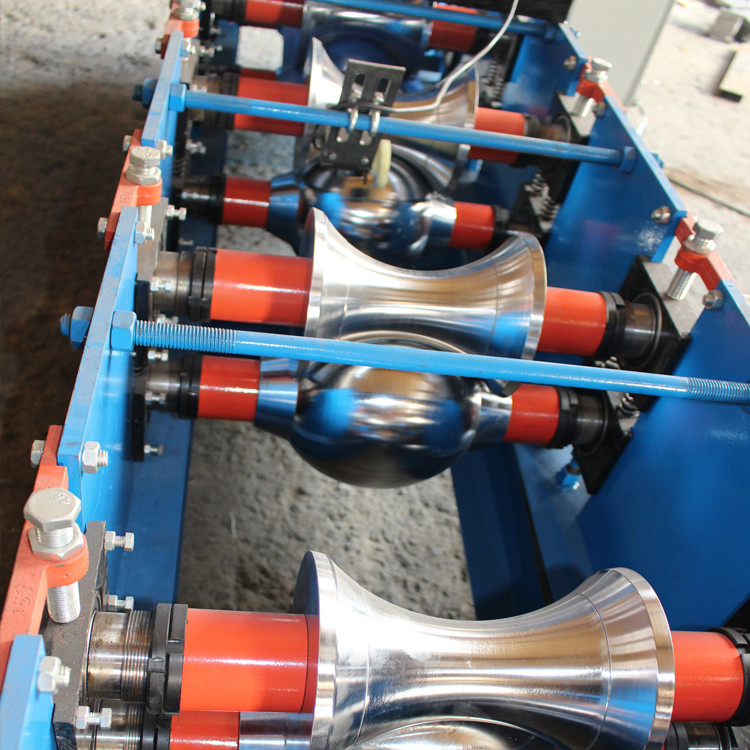

Ridge Cap Color Steel Roll Forming Metal Roof Ridge Cap Roll Forming Machine

Ridge cap roll forming machine make the ridge cap is a new building material with rich colors and classical elegance, adding a finishing touch to your building. It has the characteristics of light weight, high strength, good waterproof, convenient and fast installation, and can be widely used in villa roofs, urban flat slope roofs and tourist attractions. Compared with other materials, the combined construction of lightweight materials and various auxiliary materials is not only short in construction period, but also simple in construction method, and can maintain the beautiful roof without editing and repairing. The arc color steel roof ridge tile is more complete than the manual roof ridge tile. It is a better partner for color steel glazed tiles or color steel plates

Specification

Specification	6500x850x1250mm
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Frame	welded with 350H section steel
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Control system	PCL

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
