Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automatic

Metal Roof Tile Roll Forming Machine

Roof Tile Roll Forming Machine Automatic

Plc metal roof tile making machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Ubin Logam Ridge Cap

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Ketebalan:

0,25-0,8mm

Jenis ubin:

Tutup Punggung Bukit

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Akurasi pemotongan:

±2 mm

Bahan Pemotong:

Cr12 Bergerak HRC 58-62

Nilai Otomasi:

Otomatis

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Menyoroti:

Metal Roof Tile Roll Forming Machine

Roof Tile Roll Forming Machine Automatic

Plc metal roof tile making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

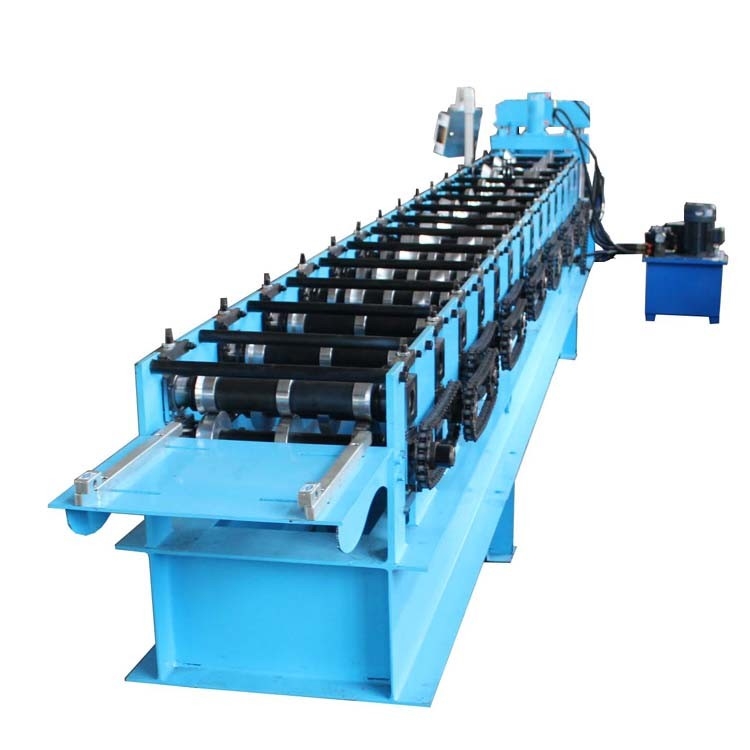

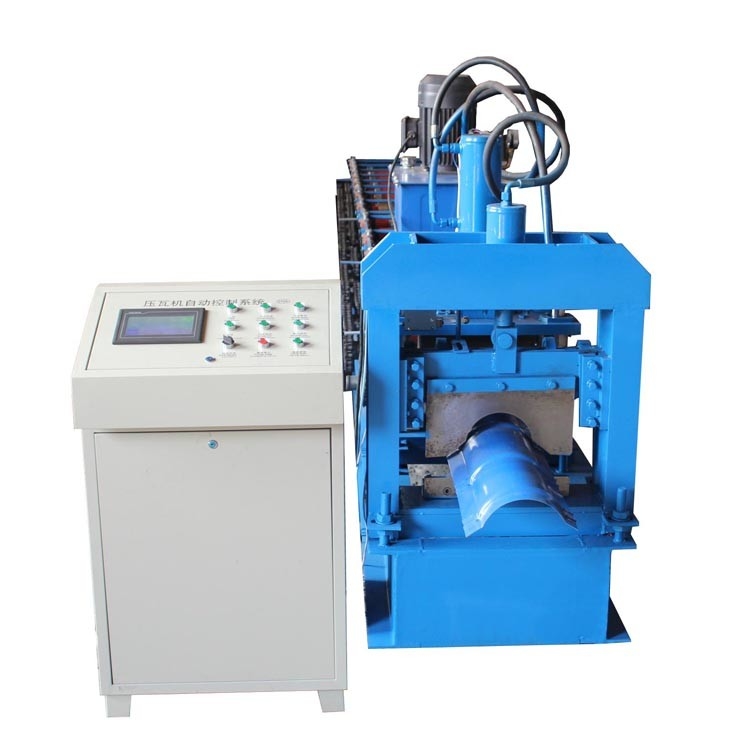

Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automatic

The Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automaticand is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification

Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Frame	welded with 350H section steel
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
