Name: High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: selokan
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control

Downspout Roll Forming Machine High Speed

PCL Controlled Gutter Downspout Machine

Downspout Roll Forming Machine PCL Controlled

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

selokan

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Downspout Talang Hujan Otomatis Berkecepatan Tinggi Kontrol PCL

Kapasitas Produksi:

12-15m/mnt

Cutting Blade Material:

Kr 12 Bergerak

Ketipisan bergulir:

0.3-0.8mm

Dimensi (P*L*T):

7800*1200*1400MM

Berat kotor per satuan produk:

3000kg

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Menyoroti:

Downspout Roll Forming Machine High Speed

PCL Controlled Gutter Downspout Machine

Downspout Roll Forming Machine PCL Controlled

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

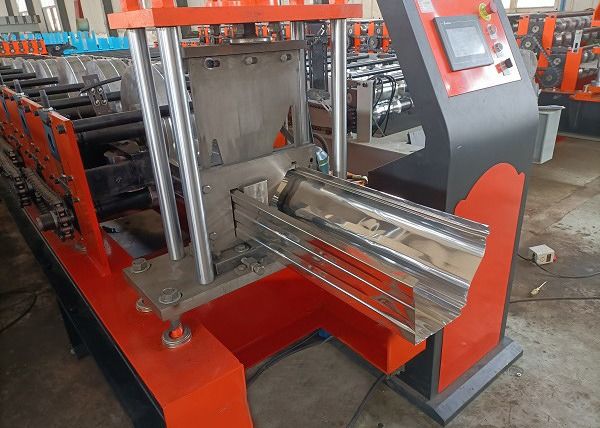

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control

Rain Gutter refers to the lower part of the two spans between the roof of the building. The roof drainage is divided into tissue drainage. Generally, the rainwater is collected in the Rain Gutter and then discharged by the rainwater pipe. The gap of the rainwater is called Rain Gutter. Rain Gutter is mostly made of steel plate.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	colored steel coil
Material thickness	0.4-0.8mm
Frame design	according to design drawing
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ70mm
Max. Line speed of roll former	15m/min
Hydraulic group power	3 KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the equipment, our engineers should provide the buyer's personal request to provide training and maintenance for the equipment. Including basic buildings, electrical engineering, hydraulic oil, safe operation and non-standard safety items, testing materials, etc.

Guarantee

The warranty will be maintained during the delivery period and within the delivery period. Due to the quality of the equipment during the warranty period, we will provide parts free of charge, which is the correct operating condition. Natural disasters or factors that cannot be imposed by humans are excluded.

Payment terms

40% in advance

60% is paid before shipping and pass the inspection

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control 0
