Name: Metal Steel Sheet Decking Floor Production Roll Forming Line Machine PLC
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

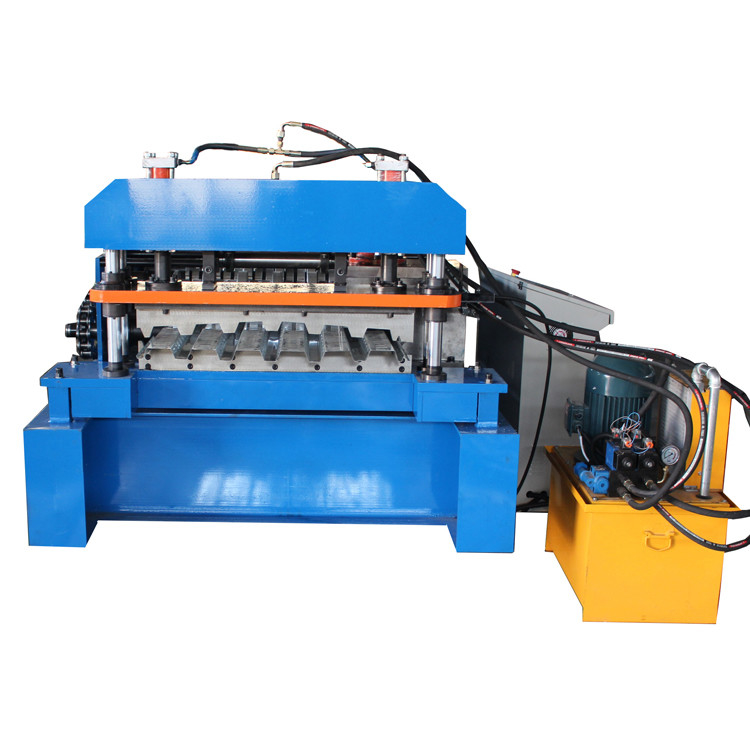

Metal Steel Sheet Decking Floor Production Roll Forming Line Machine PLC

25m/min Roll Forming Line Machine

Floor Decking Roll Forming Line

20m/min Roll Forming Line Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Jalur Roll Forming Produksi Lantai Decking Lembaran Baja Logam

Dimensi (P*L*T):

11600mm*1500mm*1510mm

Lebar efektif:

1000mm

Jenis kontrol:

Sistem PLC

Baris:

23 Baris

Berat:

sekitar 13000kg

Voltase:

380V 50Hz 3Phase

produktivitas:

20-25m/mnt

Ketipisan bergulir:

0.3-0.8mm

Tekanan hidrolik:

10-12MPa

Menyoroti:

25m/min Roll Forming Line Machine

Floor Decking Roll Forming Line

20m/min Roll Forming Line Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Metal Steel Sheet Decking Floor Production Roll Forming Line

Metal Steel Sheet Decking Floor Production Roll Forming Line

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. was established in 1995.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

Our business ablity

Till now,we have export to more than 50 countries and areas.Tha main market is South America,Africa,middel east,eastern Europe,Southeast Asia.We also take part in different exhibitions all over the world.

Working Flow:

Decoiler-------Feeding-------Roll forming-------Cutting------Finished product

Specification

Raw material
material spec	colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet	0.8-1.2 mm
material expand width	1000mm
Efficiency width	720mm

Machine details
roller material	High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	High grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	100mm
forming steps	23 rows
productivity	20-25m/min
hydraulic station power	22 KW
hydraulic pressure	10-12MPa
controlling system	famous PLC computer control
material of cutting table	Cr 12 mould steel with quenched treatment
appearance size	11600mm1500mm1510mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirements

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
