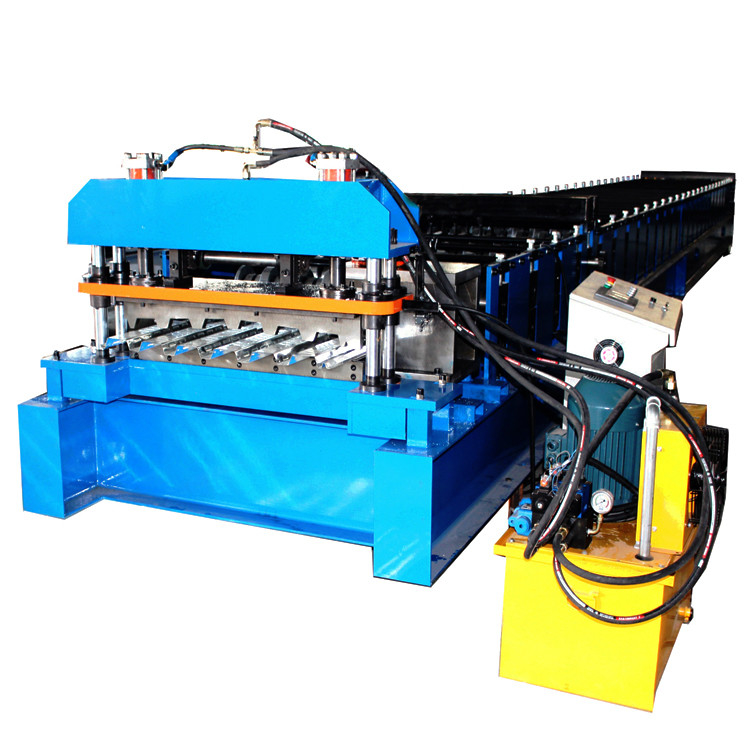

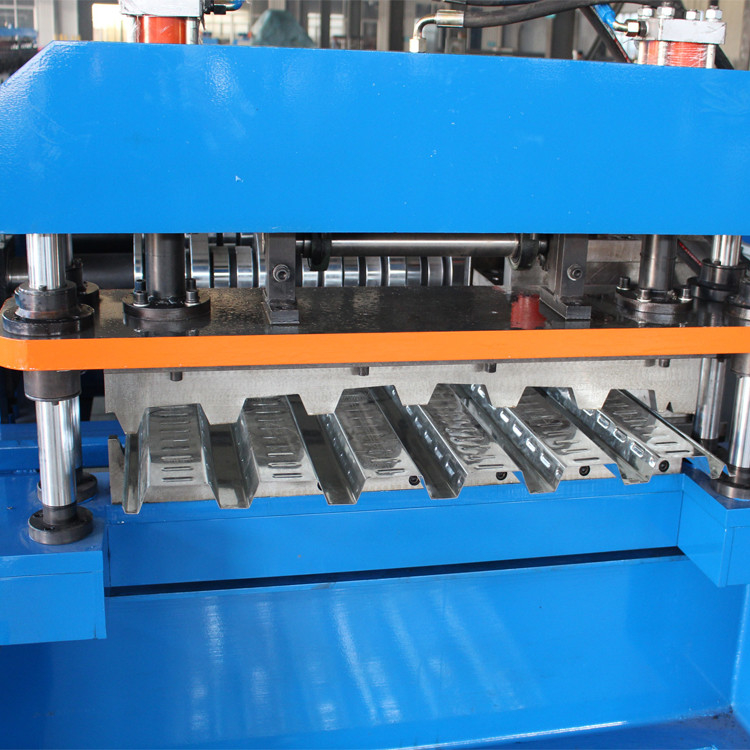

PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min

PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min

20m/min floor tile making machine

steel plate floor tile making machine

15m/min floor tile making machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami
Minta Penawaran Harga
PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min
PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min
Detail Produk
Nama Produk:
Mesin Pembuat Ubin Lantai Dek Pelat Baja Berkualitas Tinggi Untuk Pasar Eropa
Dimensi (P*L*T):
12*1.8*1.7m
Bahan:
Koil Galvanis
Jenis kontrol:
Sistem PLC
Struktur utama mesin:
Sinar 450 H
Berat:
sekitar 13000kg
Voltase:
380V 50Hz 3Phase
Kapasitas Produksi:
15-20 m/mnt
Ketipisan bergulir:
0.3-0.8mm
Sistem Pemotongan:
Sistem Pemotongan Hidrolik
Menyoroti:

20m/min floor tile making machine

,

steel plate floor tile making machine

,

15m/min floor tile making machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Cellular Composite Roofing Sheet Making Machine 3.0 Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik
Harga bagus 13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile on line Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik
Harga bagus Decking Flooring Board 1.2mm Floor Tile Making Machine on line Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik
Harga bagus 45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance on line Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

High Quality Steel Plate Deck Floor Tile Making Machine For European Market



1.High Quality Steel Plate Deck Floor Tile Making Machine For European Market


---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.


2. High Quality Steel Plate Deck Floor Tile Making Machine For European Market parameters:



Specification


Suitable Material Material GI, PPGI, PPGL
Width 1200 mm
Thickness 0.8-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 24 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 90mm
Material of cutting blade Cr12 Heat Treatment
Speed 15-20 m/min
Side plate thickness 20 mm
Chain size 2 inch
Total power 22 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 12000mm*1800mm*1700mm
Weight(About) 13 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button +Delta Touch screen


Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
