Name: Steel Metal Sheet Metal Plate Cold Roll Forming Machine Embossing
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Steel Metal Sheet Metal Plate Cold Roll Forming Machine Embossing

8m/min Cold Roll Forming Machine

Embossing Cold Roll Forming Machine

PLC Cold Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Baja Lembaran Logam Pelat Logam Embossing Mesin Cold Roll Forming Garis Embossing

Kapasitas Produksi:

8-15 m/mnt

Dimensi (P*L*T):

4000mmx2000mmx1500mm

Bahan roller:

Stee 45# bermutu tinggi

Sistem Pengendalian:

PLC

Ketipisan bergulir:

0,8-1,2mm

Voltase:

380V 50Hz 3Phase

Lebar makan:

1000mm

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Kekuatan:

10kw

Berat:

5000kg

Menyoroti:

8m/min Cold Roll Forming Machine

Embossing Cold Roll Forming Machine

PLC Cold Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

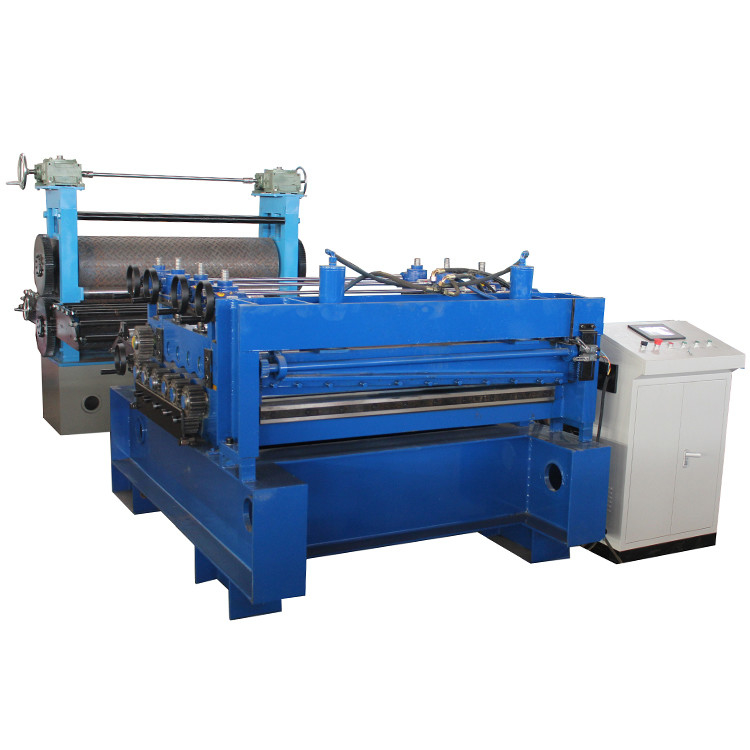

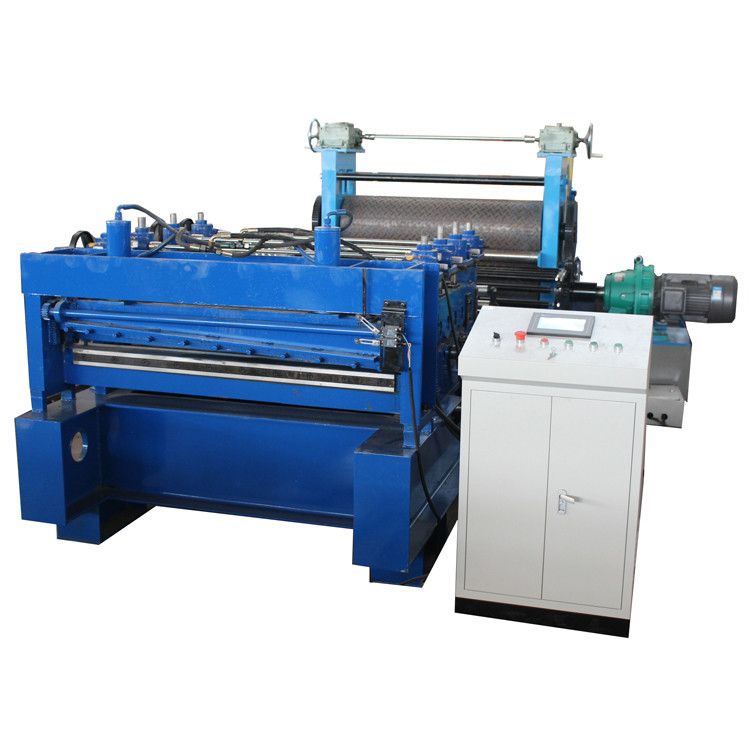

Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line

Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line, The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers,so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.
Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing,and also be formed by the full automatic by PLC controling box.The embossing profile can be customized as customer's request.

Welcome you send us the profile drawing.

Feeding table-- Embossing Machine---Leveling Device- Runout table

Detailed Parameters:

item	value
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Automatic Grade	Automatic
Production Capacity	8-15M/MIN
Voltage	380V 50HZ OR AS CUSTOMER REQUIRED
Power	10kw
Dimension(LWH)	4000x2000x1500mm
Weight	5000kg
Warranty	1 Year
Key Selling Points	Long Service Life
Automatic Grade	Automatic
Weight	5000 kg
Voltage	380V 50HZ OR AS CUSTOMER REQUIRED
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Steel Metal Sheet Metal Plate Cold Roll Forming Machine Embossing 0
