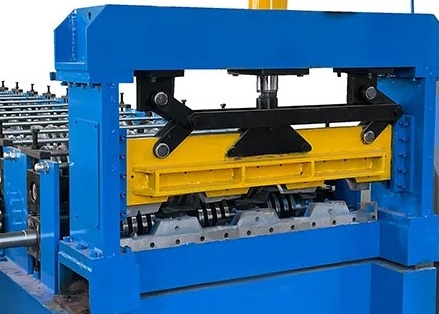

Name: Roof Metal Steel Floor Deck Roll Forming Machine 900 - 1250mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

Roof Metal Steel Floor Deck Roll Forming Machine 900 - 1250mm

1250mm Floor Deck Roll Forming Line

PLC Floor Deck Roll Forming Machine

1250mm Floor Deck Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Garis Mesin Roll Forming Dek Lantai Baja Logam Atap 900-1250mm

Dimensi (P*L*T):

15*2*1,5 m

Bahan poros:

CR12

Jenis kontrol:

Sistem PLC

Bahan roller:

45 # baja tempa

Berat:

5000 kg

Voltase:

380V 50Hz 3Phase

Pembentukan kecepatan:

8-12 m/mnt

Ketipisan bergulir:

0.3-0.8mm

Menyoroti:

1250mm Floor Deck Roll Forming Line

PLC Floor Deck Roll Forming Machine

1250mm Floor Deck Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Roof Metal Steel Floor Deck Roll Forming Machine Line 900-1250mm

FlRoof Metal Steel Floor Deck Roll Forming Machine Line 900-1250mm | metal deck roll forming machine | 1000 decking floor machine | 1000 metal deck roll forming machine | steel floor decking machine

1000 floor deck roll forming machine popular sell in many countries, Coil width before rolling is 1220mm /1000mm. After rolling product width is 1000mm or 688mm, Material common is GI material, material thickness common between 0.8-1 mm.

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.8-1.2 mm
Machine	Roller station	25 or depend on customer' drawing
	Shaft diameter	95 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	GCr 15
	Machine size	About 15×2×1.3 m
	Machine weight	About 14 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 2 inch
	Main power	15 kw * 2
	Pump power	5.5 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	5 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
