Name: Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine PLC Control

PLC Metal Deck Roll Forming Machine

PLC Floor Deck Roll Forming Machine

Hydraulic Floor Deck Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lantai Dek Logam Geser Hidraulik Mesin Dek Logam

Dimensi (P*L*T):

12,5*1,8*2,0

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Jenis kontrol:

Sistem PLC

Struktur utama mesin:

Sinar 450 H

Berat:

10500 KG

Voltase:

380v/440v/220v/415v

Kapasitas Produksi:

10-15 m/mnt

Ketipisan bergulir:

0.3-0.8mm

Rol:

26 baris

Menyoroti:

PLC Metal Deck Roll Forming Machine

PLC Floor Deck Roll Forming Machine

Hydraulic Floor Deck Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

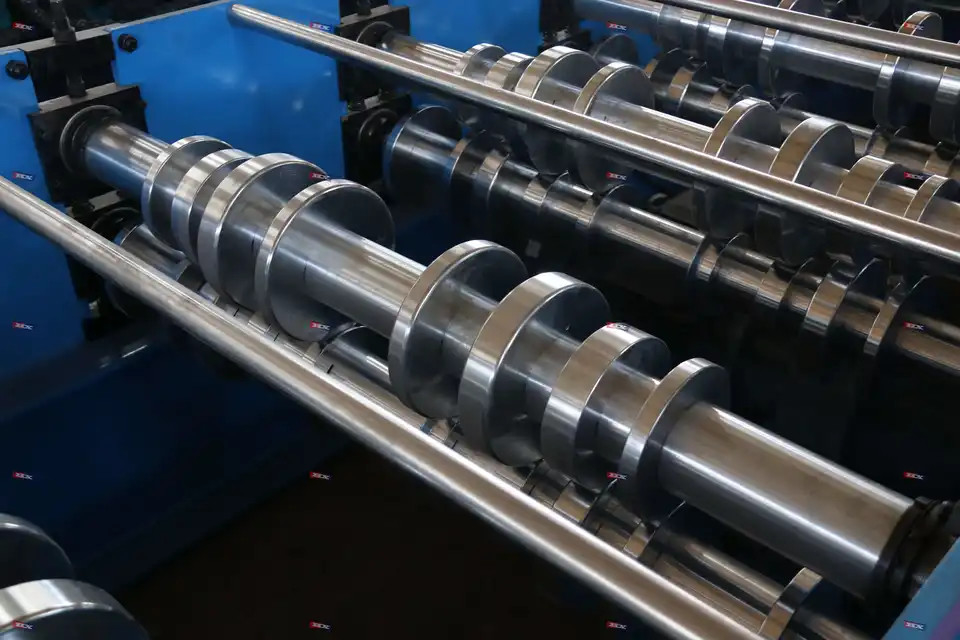

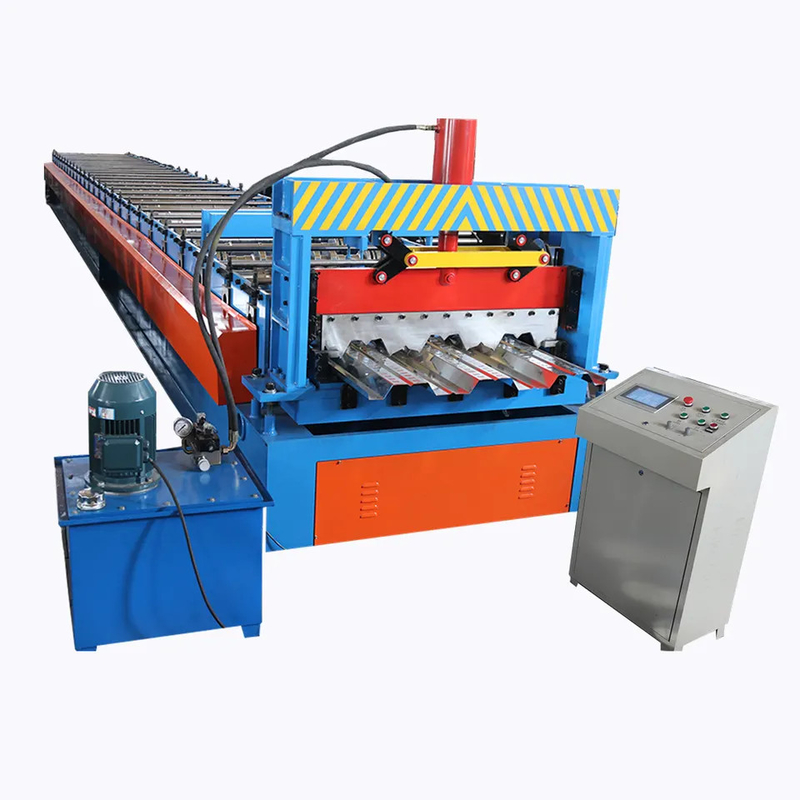

Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines

Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines :

The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.

metal decking floor deck roll forming machine is mainly used to produce press-formed steel plate to support floor concrete,the floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.

Specification

Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines
Dimensions	12.51.82.0m
Weight	About 10500kgs
Roller	26 Rows
Material of the Cutting Blade	Cr12, Quenched treatment 58℃-60℃
Rolling Materials	45# forging steel with chromium plate
Diameter of the Roller	Φ90mm
Main Structure of the Machine	450H beams
Side Panel of Machine	20mm
Chain	1 Inch
Motor Power	15Kw*2
Pump Station Motor	4Kw Lichao Brand
Productivity	10-15m/min
Thickness of the Plate	0.5-1.2mm
Length Tolerance	±2mm
Touch Screen	Delta
Voltage	380V 50Hz 3 phases or as customer's need
Drive Mode	Motor driver
Suitable to Process	GI/GL/PPGI/PPGL/Aluminum coils

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
