Name: Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making

PLC Control Roof Roll Forming Machine

Double Layer Roof Roll Forming Machine

12m/min Roof Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Mesin Roll Forming Atap Lapisan Ganda Baja Warna Mesin Pembuat Lembaran Logam

Kapasitas Produksi:

8-12 m/mnt

Dimensi (P*L*T):

6500*1500*1300mm

Bahan roller:

Stee 45# bermutu tinggi

Sistem Pengendalian:

PLC

Ketipisan bergulir:

0,8-1,2mm

Voltase:

380V 50Hz 3Phase

Lebar makan:

1000mm

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Bingkai utama:

Baja 350H

Berat:

3500 kg

Menyoroti:

PLC Control Roof Roll Forming Machine

Double Layer Roof Roll Forming Machine

12m/min Roof Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

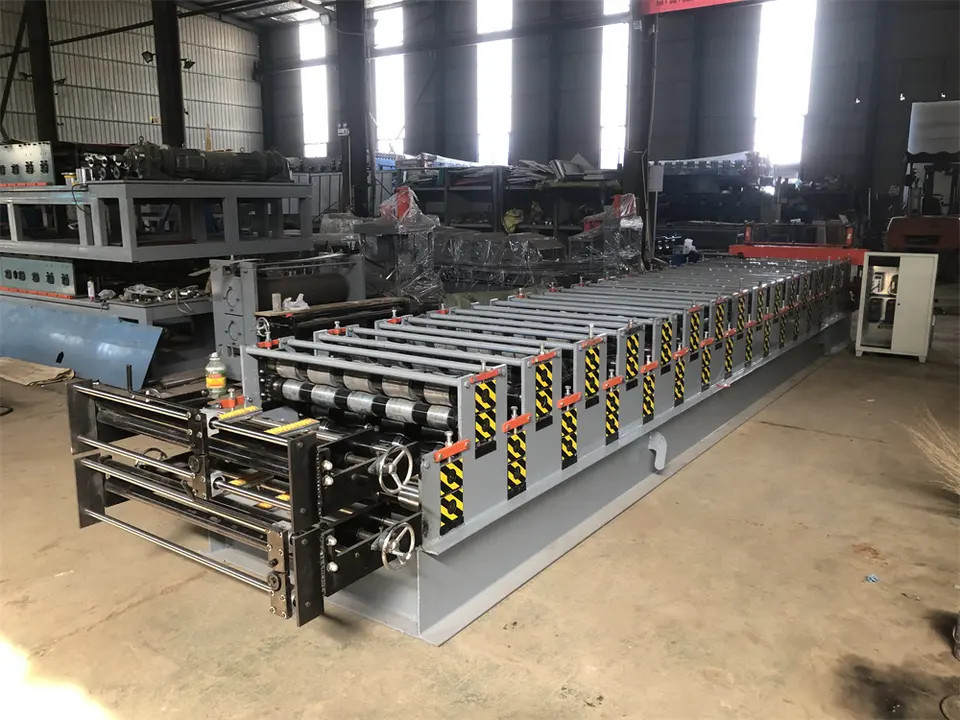

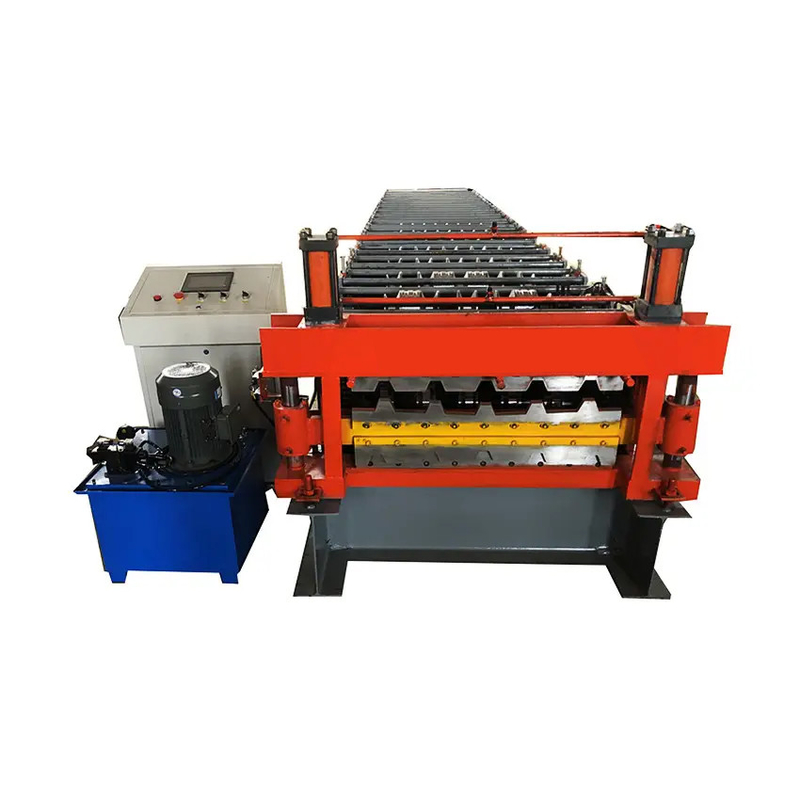

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.

We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

Detailed Parameters:

No.
1	Suitable material	color steel sheet, galvanized steel sheet, aluminium sheet
2	Material width	1000mm or as your required
3	Material thickness	0.3-0.8 or as your required
4	Working speed	8-12m/min, can be 20-25m/min
5	Main motor power	5.5kw with cycloidal with reducer
6	Hydraulic pump power	4kw
7	Electrical control system	PLC control system with inverter
8	Shaft diameter	75mm
9	Roller station	15 rows, depend on your panel profile drawing
10	Roller	high grade 45# steel, hard chrome plating
11	Working time	24 hours
13	Cutting head material	Cr 12 mould steel with quenched treatment
14	Voltage	380V 3Phase 50Hz or as your required
15	Weight	3.5T
16	The machine size	650015001300mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
