Name: Double Deck Roofing Panel Roll Color Steel Tile Making Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Double Deck Roofing Panel Roll Color Steel Tile Making Machine PLC Control

PLC Control Tile Making Machine

Color Steel Tile Making Machine

12m/min Tile Making Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Mesin Roll Forming Panel Atap Dek Ganda Mesin Pembuat Genteng Baja Berwarna

Kapasitas Produksi:

8-12 m/mnt

Dimensi (P*L*T):

Sekitar 18m*2.2m*1.5m

Bahan roller:

45 # baja tempa

Sistem Pengendalian:

PLC

Ketipisan bergulir:

0.3-0.8mm

Voltase:

380V 50Hz 3Phase

Lebar makan:

900-1250mm

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Bingkai utama:

Baja 350H

Berat:

3500 kg

Menyoroti:

PLC Control Tile Making Machine

Color Steel Tile Making Machine

12m/min Tile Making Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

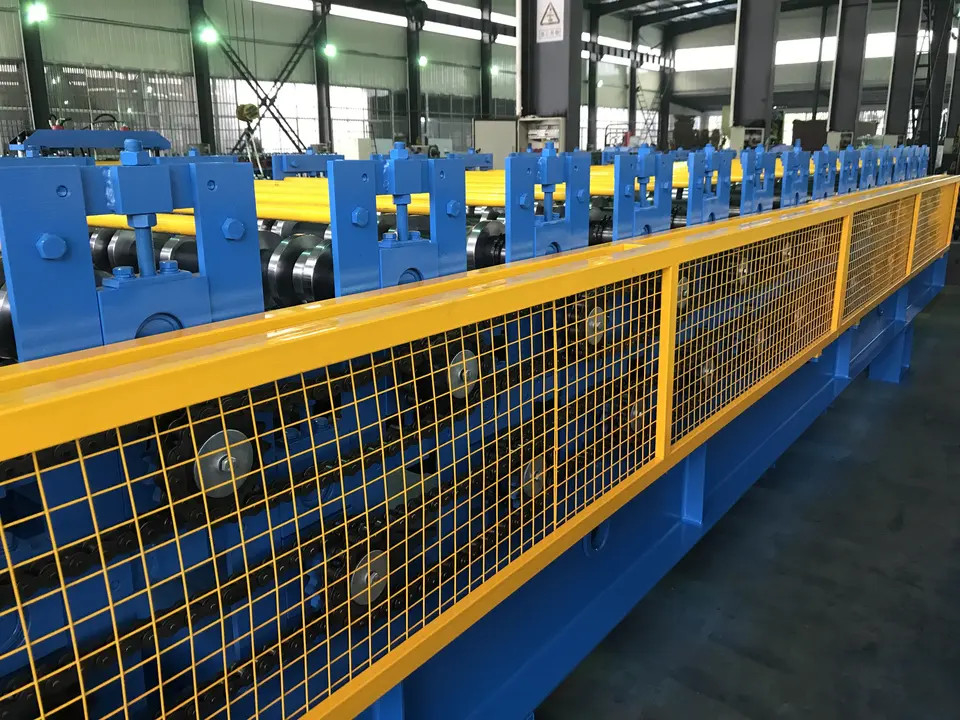

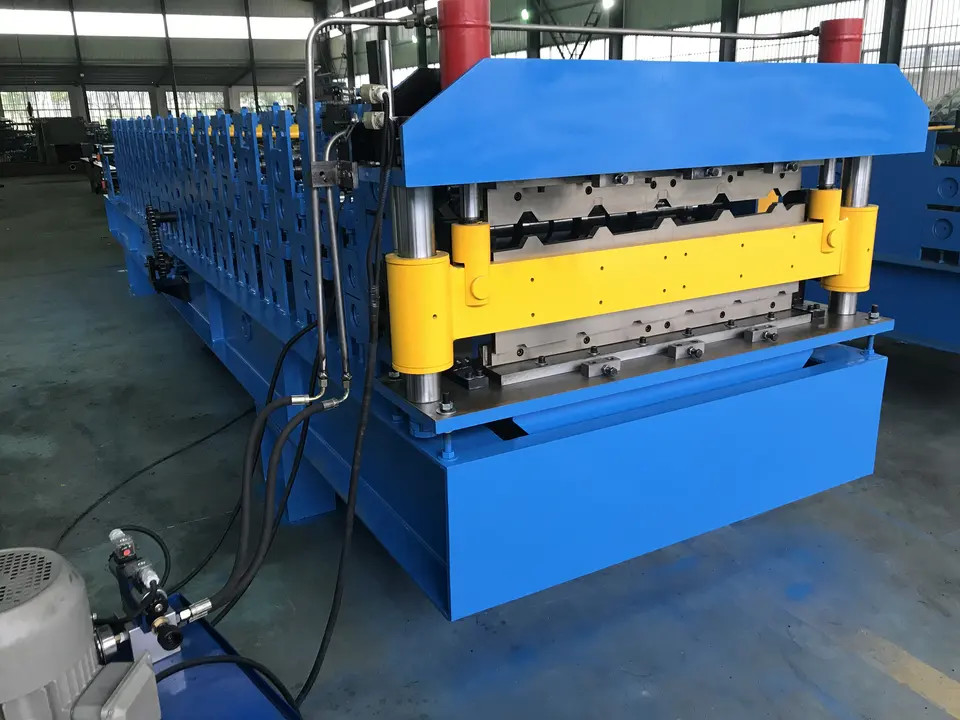

Double Deck Roofing Panel Roll Forming Machine Color Steel Tile Making Machine

Double Deck Roofing Panel Roll Forming Machine Color Steel Tile Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.

Detailed Parameters:

Item NO.	Item Name	Description
	Raw material	Galvanized steel or PPGI
1	Material thickness	0.3-0.7mm
2	Forming speed	0-15m/min
3	Roll station	upper 20stations, down 22 stations
4	Main power	11kw
5	Hydraulic power	7.5kw
6	Control system	PLC Panasonic
7	Drive	by chain
8	Voltage	380V/50HZ, 3P or Customized

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
