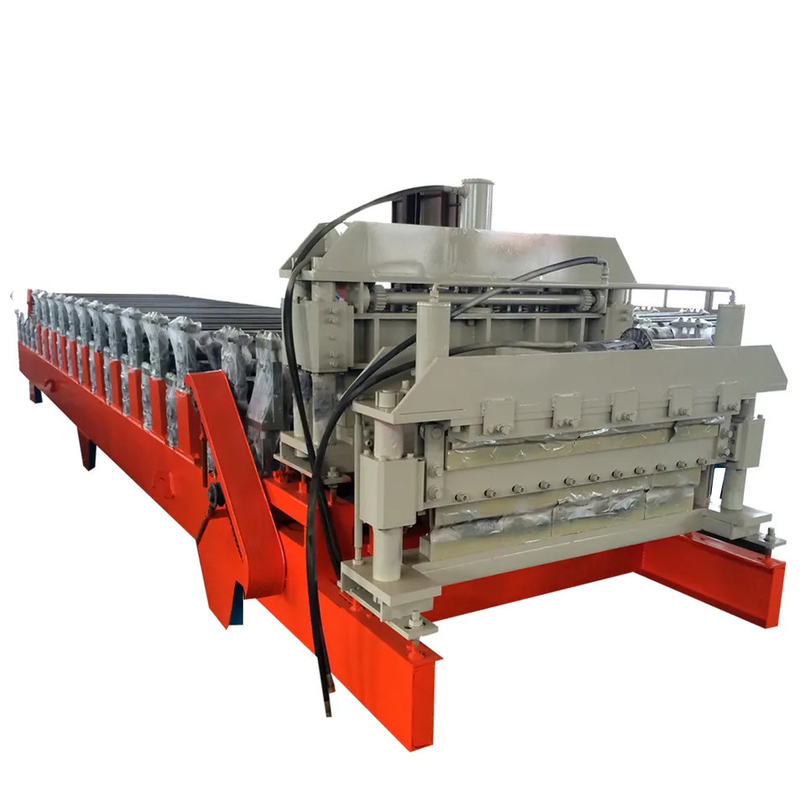

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

double layer forming machine 12m/min

double layer forming machine PLC

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Detail Produk
Deskripsi produk:
Mesin Roll Forming Lapisan Ganda Lembaran Atap Untuk Produksi Lembaran Atap Logam
Kapasitas Produksi:
8-12 m/mnt
Dimensi (P*L*T):
7,5*1,3*1,3m
Bahan roller:
45 # baja tempa
Sistem Pengendalian:
PLC
Ketipisan bergulir:
0.3-0.8mm
Voltase:
380V 50Hz 3Phase
Lebar makan:
1250mm
Cutting Blade Material:
Cr 12 baja bermutu tinggi
Bingkai utama:
Baja 350H
Berat:
5000 kg
Menyoroti:

double layer forming machine 12m/min

,

double layer forming machine PLC

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production


   Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
  Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.


Detailed Parameters:

Part details Item Name Specification
Manual uncoiler carrying capacity 5-8 tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 6.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-12 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 3 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English




Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
