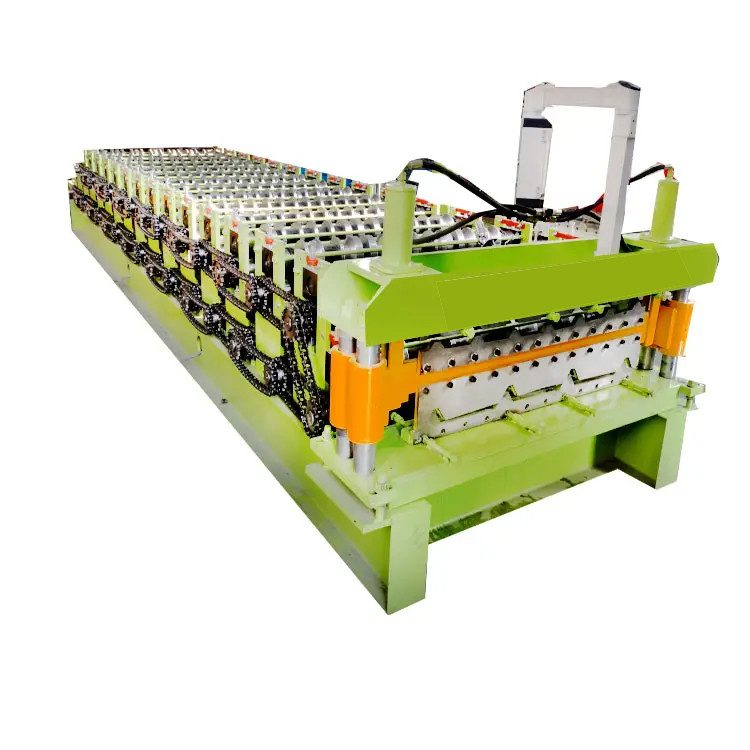

Name: Roof Panel Double Layer Roll Forming Machine 0.3 - 0.8mm 18 Stations
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Roof Panel Double Layer Roll Forming Machine 0.3 - 0.8mm 18 Stations

Double Layer Roll Forming Machine 0.8mm

double layer forming machine 0.3mm

12m/min double layer forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Mesin Roll Forming Lapisan Ganda Panel Atap 0,3-0,8mm 18 Stasiun

Kapasitas Produksi:

8-25m/menit

Dimensi (P*L*T):

6500mm*1300mm*1200mm

Bahan roller:

45# baja

Sistem Pengendalian:

PLC

Ketipisan bergulir:

0.3-0.8mm

Voltase:

380V 50HZ 3PH

kapasitas produksi:

0-12m/mnt

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Bingkai utama:

Baja 350H

Menyoroti:

Double Layer Roll Forming Machine 0.8mm

double layer forming machine 0.3mm

12m/min double layer forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations

Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.

Detailed Parameters:

The total length of the equipment	Length 6.5m, width 1.2m and height 1.2m
The motor power	Motor actuating motor pump station 4Kw working voltage 380V
Production speed	8-25 m/min
The transmission way	1 .2inch chain drive
rack	Large frame: 350H section steel
shaft	11 row axis diameter phi 70 axis
The thickness of the plate	14 mm
Set of	Galvanized pipe finishing, electrostatic spraying
Wheel material	45# steel hard chrome plating
The molding part	Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system	Easy control king, letter letter press button screen, counter,
shear	Welded iron frame, hydraulic cylinder automatic shear
The thickness of the plate	0.3- 0.8 mm
Feed width	1000 mm
accessories	One feeding rack and two sets
Warranty period	12 months

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
