Name: 8-15 M/Min Double Layer Roll Forming Machine Glazed Tile IBR
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

8-15 M/Min Double Layer Roll Forming Machine Glazed Tile IBR

15m/min glazed tile forming machine

IBR glazed tile forming machine

IBR glazed tile roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lapisan Ganda Berkualitas Tinggi Glazed Tile IBR

Dimensi (P*L*T):

7*1.4*1.5m

Bahan mentah:

PPGI PPGL GI GL

Kecepatan kerja:

8-15 m/mnt

Ketipisan bergulir:

0.3-0.8mm

Cutting Blade Material:

Cr 12 Stee Kelas Tinggi

Tenaga Motorik:

7,5 kW

Pasokan daya:

380V, 50 Hz, 3 fase (sesuai kebutuhan Anda)

Lebar Bahan Baku:

1000mm

Berat:

5000 kg

Bahan roller:

45 # baja Berlapis Krom

Menyoroti:

15m/min glazed tile forming machine

IBR glazed tile forming machine

IBR glazed tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

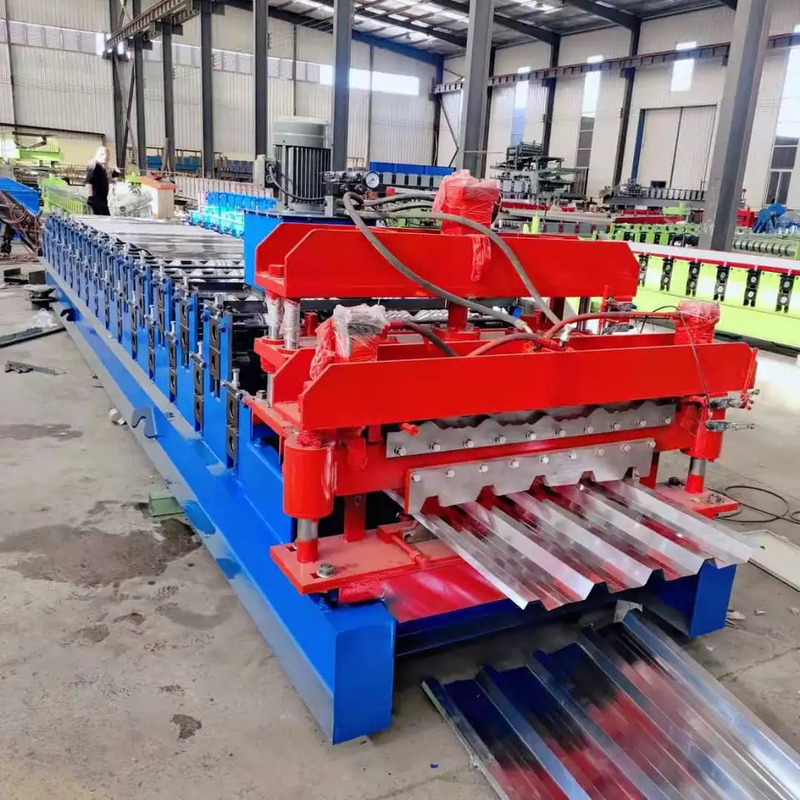

High Quality Double Layer Roll Forming Machine Glazed Tile IBR

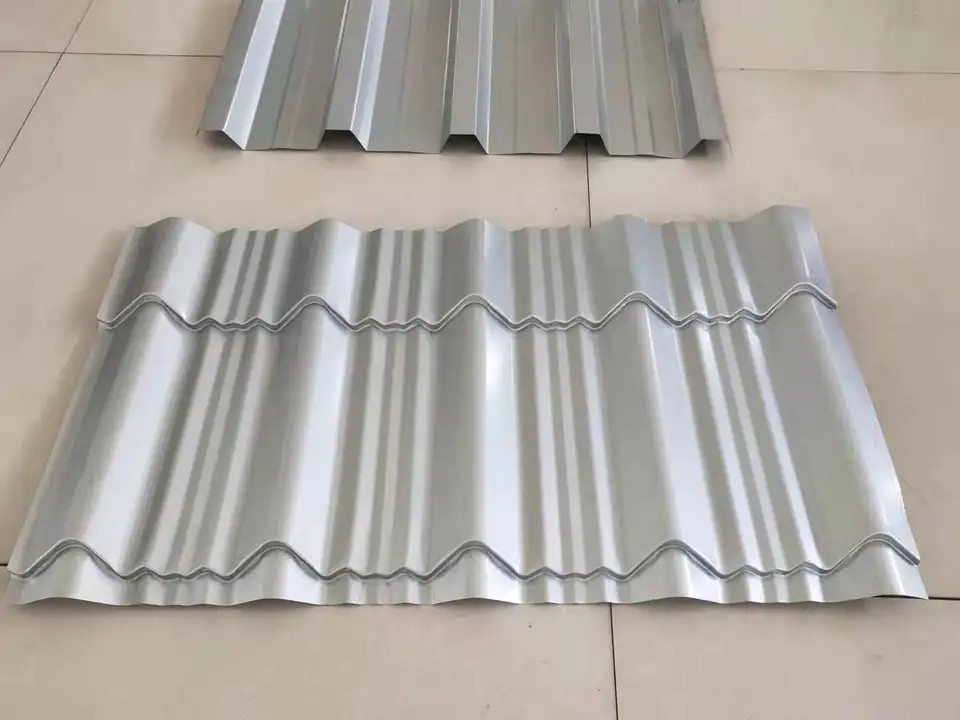

High Quality Double Layer Roll Forming Machine Glazed Tile IBR.The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem.

The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

Superior Quality Colored Glazed Metal Roof Tile Roll Forming Machine
General details	Suitable Material	PPGI/PPGL/GI/GL
	coil width	1000/1200/1250MM(according to your need)
	Materials thickness	0.3mm-0.8mm
	Dimension	About 71.41.5m(LWH) , as per the drawing
	Length of the Sheet	can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm.
	Cutting	Automatically stop and cutting when it comes to the set length.
Components Details	Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
	Main Frame	350# steel. More stable and no shaking.
	Middle Plate	16mm. We use thicker plates to ensure stability of our products.
	Forming Steps	9-20 steps, according to the drawing.
	Shaft Material	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.
	Cutting Blade Material	Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting.
Electric Components	Suitable Power	380V, 50 Hz, 3 phase(according to your need)
	Screen	7 inch touch screen, easy to operate.Brand Delta or based on your need
	PLC	Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance.
	Frequency Converter	Sanjing It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
	Length Measurement Device	Omron, made in Japan. It features with high accuracy and stability.

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
