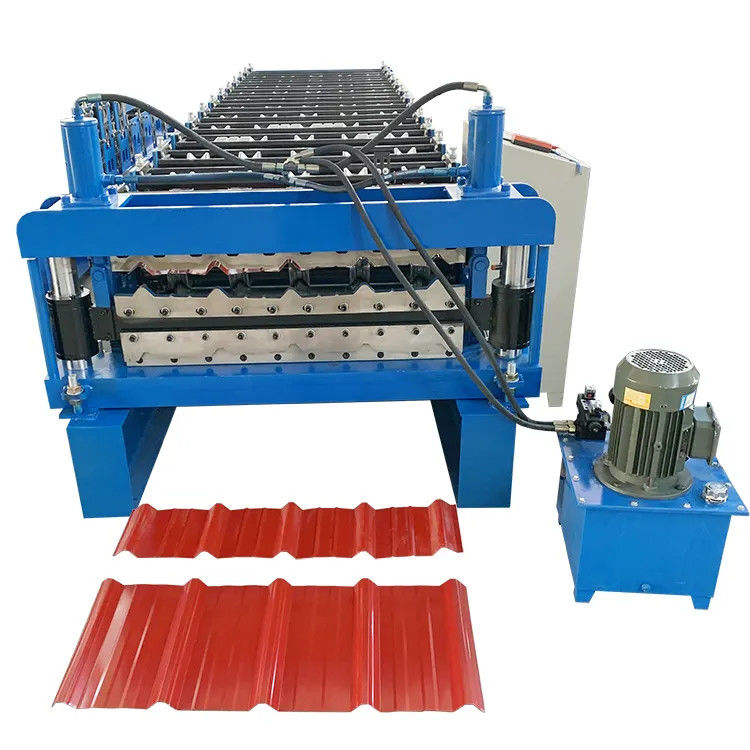

Name: Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof

15m/min trapezoidal roll forming machine

Trapezoidal Tile double layer forming machine

double layer forming machine 8m/min

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lapisan Ganda Ubin Trapesium Pembuatan Atap Rentang Panjang

Dimensi (P*L*T):

6,8m*1,35m*1,25m

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

8-15 m/mnt

Ketipisan bergulir:

0.3-0.8mm

Bahan poros:

45# baja

Tenaga Motorik:

7,5 kW

Pasokan daya:

380V, 60Hz, 3Ph

Lebar Bahan Baku:

850mm

Berat:

5000 kg

Bahan roller:

45 # berlapis Cr

Menyoroti:

15m/min trapezoidal roll forming machine

Trapezoidal Tile double layer forming machine

double layer forming machine 8m/min

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Control system:

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.

Forming system:

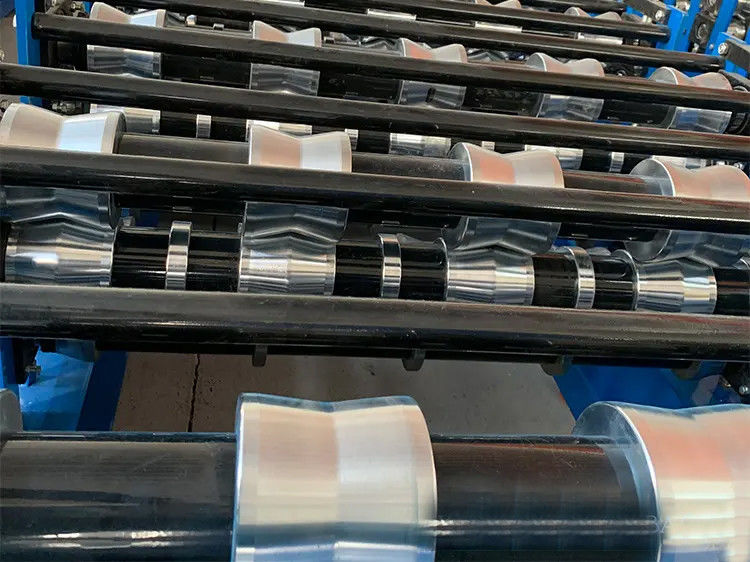

Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm

Cutting system:

Hydraulic cutting file bit

cutting knife material: Cr12

Kind of drive:

The average transmission ratio of the chain drive is accurate, the work is reliable and the efficiency is high; the transmission power is large and the overload capacity is strong.

The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

Total power	11 – 18kw
Speed	4 – 10m/min
Dimension (LxWxH)	(8-11)x(1.6-2.2)x1.8m
Weight of machine	5 – 8 tons
Roller station	12 – 20
Material thickness	0.15 – 0.5mm (G300-G550)
Material width	914;1200;1219;1450mm

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
