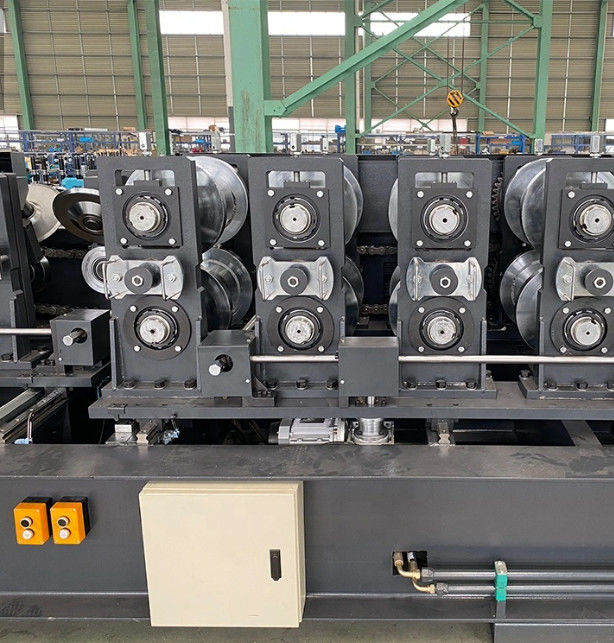

Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming CZ Purlin Aotomatic Stud Dan Track Cold Roller Bekas Harga Bagus Peb

Tipe Kontrol Higzh:

Akurasi Sistem Kontrol PLC

Kapasitas Produksi:

8-12 m/mnt

Ketebalan material:

1-3mm

Bilah:

sesuai kebutuhan pembeli

Sistem Pengendalian:

Kontrol komputer PLC dengan inverter

Daya pompa:

5.5kw

Bingkai:

baja 400 jam

Spesifikasi:

10*1.35*1.75m

Bahan poros utama:

40 cr

Menyoroti:

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Product name: Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Production Process: Decoiling - Feeding - Flattening - Lip forming - Flange forming - Angle forming - Straightening - Punching - Cutting - Stacking

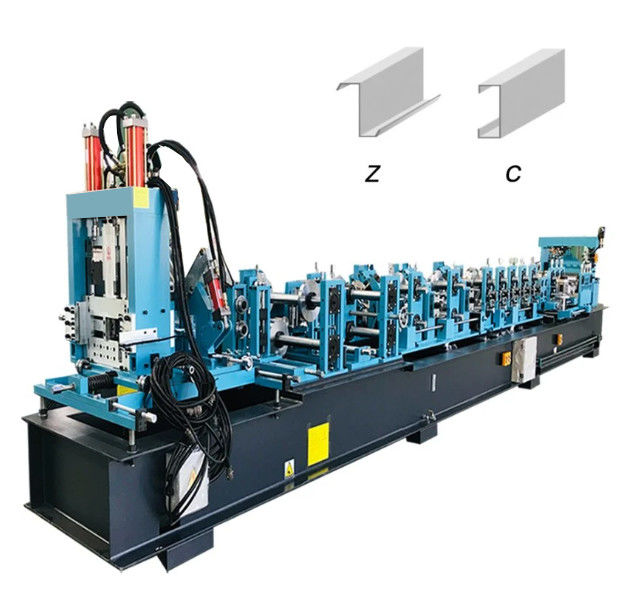

This automatic CZ purlin roll forming machine can produce both C and Z shape purlin, C Z shape change by computer automatically in 1 minute, which highly improve the efficiency and save space&time&cost.

It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel
2	Material thickness:	1.5 mm-3.0 mm
3	Capacity:	8-12m/Min
4	The weight:	13-15 ton
5	Roll Forming Machine Shaft Material	Cr12, Heat Treatment
6	Hydraulic Station	5.5kw
7	Specification	101.351.75m
8	Cutting Blade	Cr12MOV After Heat Treatment
9	Forming Stations	18
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
