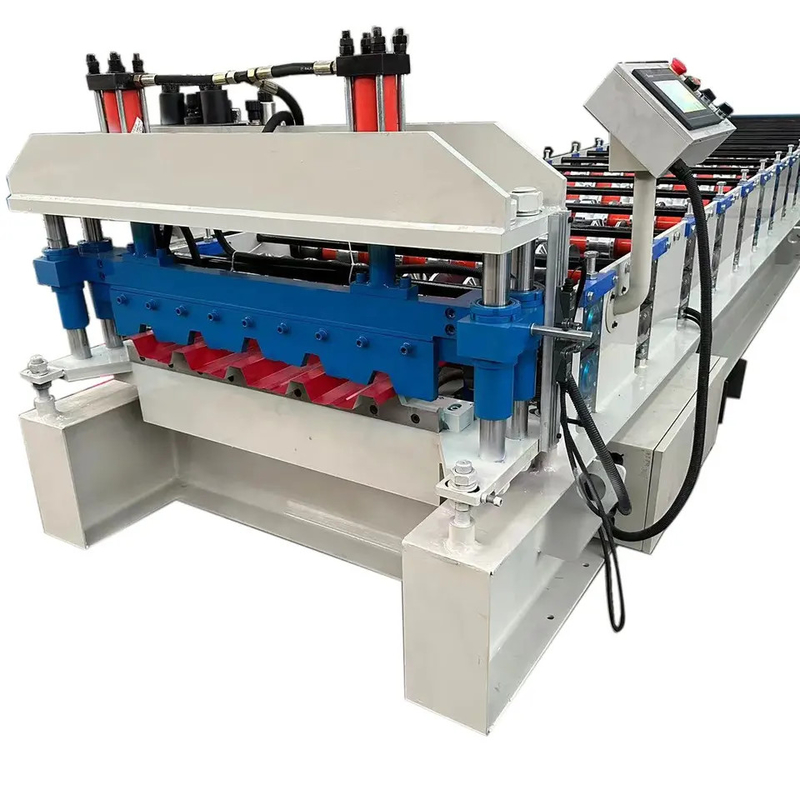

Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

1000mm PBR roll former

Ibr 686 Roof Tile Making Machine

1000mm Roof Tile Making Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

Detail Produk

Nama Produk:

Mesin Roll Forming Panel PBR Portabel Ibr 686 Mesin Pembuat Genteng Berkecepatan Tinggi

Penggunaan:

Atap, Dinding

Bahan yang cocok:

PPGI PPGL GI GL

Berat:

3000 kg

Kecepatan:

8-12 m/mnt

Bahan roller:

380V 50HZ 3P atau Sesuaikan sebagai pelanggan

Ketipisan bergulir:

0,3 mm -0,8 mm

Dimensi (P*L*T):

6*1,5*1,3 m

Rol:

45# Baja sesuai Kebutuhan Pelanggan

Lebar Bahan Baku:

1000mm

Menyoroti:

1000mm PBR roll former

Ibr 686 Roof Tile Making Machine

1000mm Roof Tile Making Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

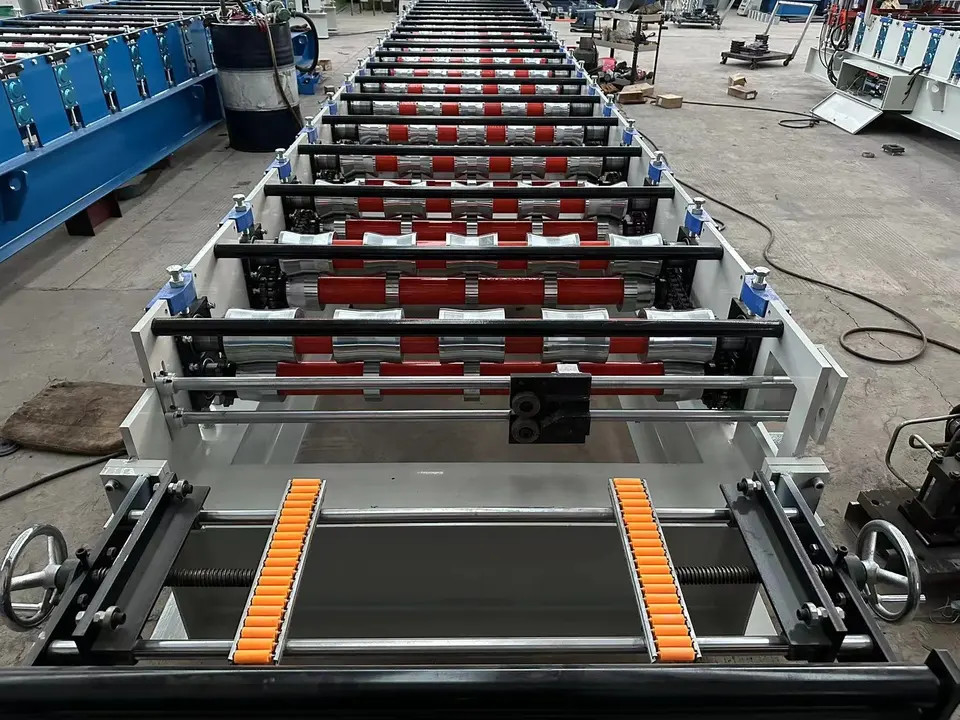

Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine

Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine process for work:

decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The Roll Forming Machine is composed of feeding material , forming, and post-forming cutting. The color plate produced has a flat and beautiful appearance, no any scratch on surface of sheets . It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

No	Item	Data
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3000KG

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
