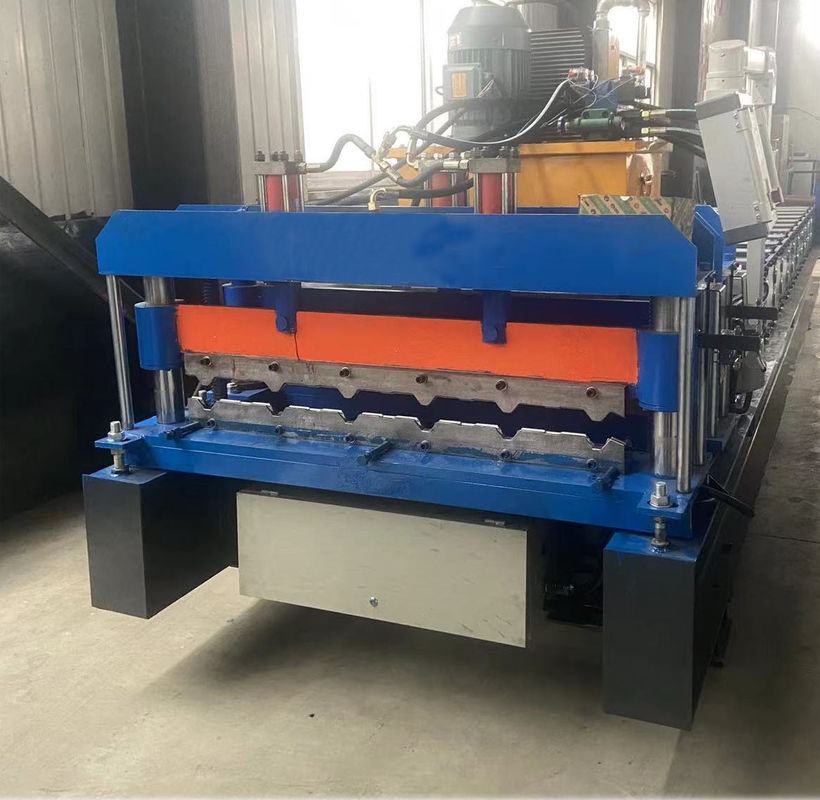

Trapezoidal Roof Tile Roll Forming Machine With 18 Stations Simple Structure No Pollution

18 Stations Roof Tile Roll Forming Machine

Roof sheet Roll Forming Mahcine No Pollution

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Genteng Trapesium Roll Forming Mahcine Dengan 18 Stasiun Struktur Sederhana Tanpa Polusi

Penggunaan:

Atap, Dinding

Bahan yang cocok:

PPGI PPGL GI GL

Berat:

4500 kg

Kecepatan:

8-20 m/menit

Bahan roller:

380V 50HZ 3P atau Sesuaikan sebagai pelanggan

Ketipisan bergulir:

0.3-0.8mm

Dimensi (P*L*T):

6*1,5*1,3 m

Rol:

45# Baja sesuai Kebutuhan Pelanggan

Lebar koil sebelum digulung:

900mm, 915mm, 1000mm, 1200mm, 1250mm

Menyoroti:

18 Stations Roof Tile Roll Forming Machine

Roof sheet Roll Forming Mahcine No Pollution

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Trapezoidal Roof Tile Roll Forming Mahcine With 18 Stations Simple Structure No Pollution

Product Advantage

(1) The color steel plate equipment adopts high-level automatic control software to realize production information management.
(2) The entire unit automation control system uses a highly integrated network to make the automation system perform better.
(3) The color steel tile pressing machine also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

Brief Introduction

Roof roll forming machines has different types .Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.

The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,ancient architectures and modern villas

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	13
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6.2×1.5×1.3 m
	Machine weight	About 4.5 KG
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Weight capicatity	5 ton

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
