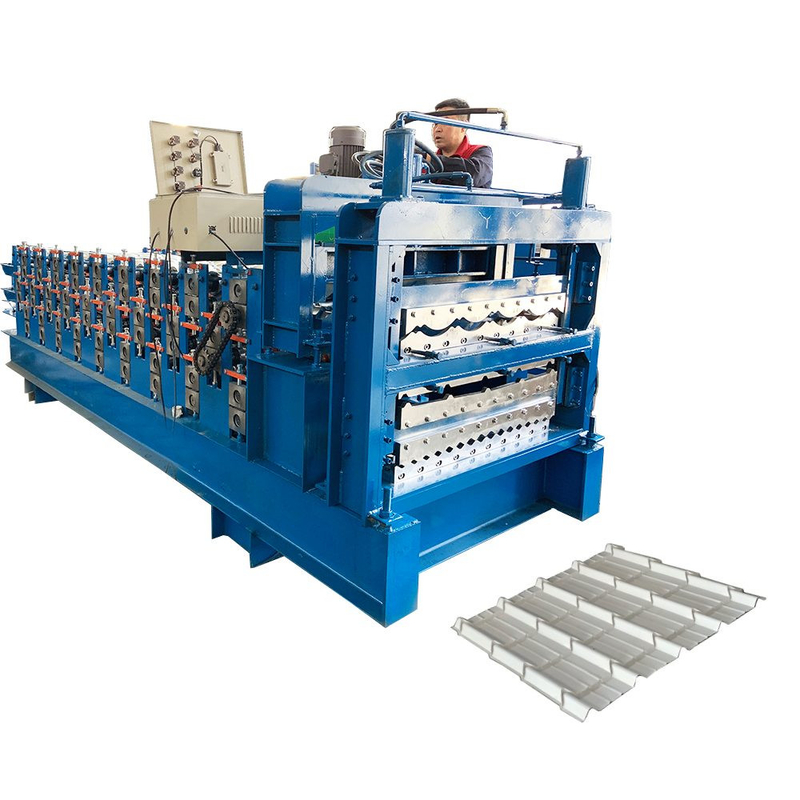

Name: 7Kw Three Layers Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

7Kw Three Layers Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine

Three Layers Roof Tile Roll Forming Machine

Three Layers Corrugated Tile making machine

7Kw Roof Tile Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

7Kw Three Layers Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine

Detail Produk

Nama Produk:

Mesin Roll Forming Genteng Tiga Lapis Berkualitas Tinggi Mesin pembuat Genteng Bergelombang Ibr

Sistem Pengendalian:

PLC (merek impor)

Bahan roller:

45 # baja Berlapis Krom

Voltase:

380/50Hz/3PH atau disesuaikan

Lebar makan::

1250mm

Kecepatan:

18-20m/menit

Ketebalan:

0,3mm-0,7mm

Kekuatan total:

7kw

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Daya Stasiun Hidrolik:

3kw

Menyoroti:

Three Layers Roof Tile Roll Forming Machine

Three Layers Corrugated Tile making machine

7Kw Roof Tile Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

High Quality Three Layer Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine

Superior Quality Colored Metal Roof Tile Roll Forming Machine

1.This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The machine is stable,no noise,no shake.
3.Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4.Cutting machine is characterized by stable driving,easy operation.

5.Hydraulic system use the hydraulic pump,long operating life,no noise.

Specification

High Quality Three Layer Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine
General details	Suitable Material	PPGI/PPGL/GI/GL
	coil width	1000/1200/1250MM(according to your need)
	Materials thickness	0.3mm-0.8mm
	Dimension	About 81.21.3m(LWH) , as per the drawing
	Length of the Sheet	can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm.
	Cutting	Automatically stop and cutting when it comes to the set length.
Components Details	Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
	Main Frame	350# steel. More stable and no shaking.
	Middle Plate	16mm. We use thicker plates to ensure stability of our products.
	Forming Steps	9-20 steps, according to the drawing.
	Shaft Material	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.
	Cutting Blade Material	Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting.
Electric Components	Suitable Power	380V, 50 Hz, 3 phase(according to your need)
	Screen	7 inch touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% TT in advance

60% TT before the shipment and after inspection

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received
