Rumah > Produk > mesin roll forming double layer >

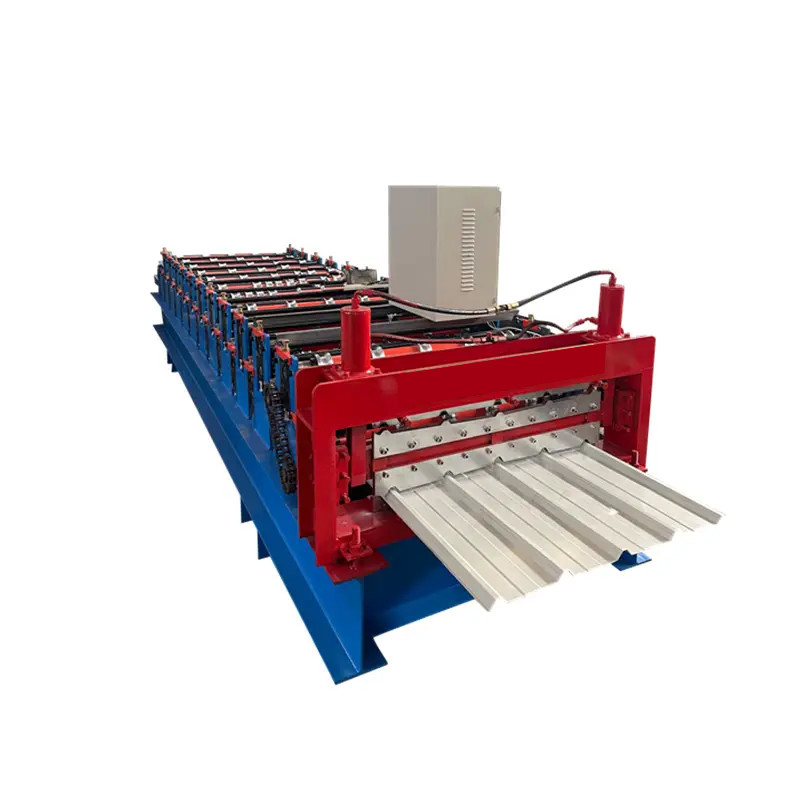

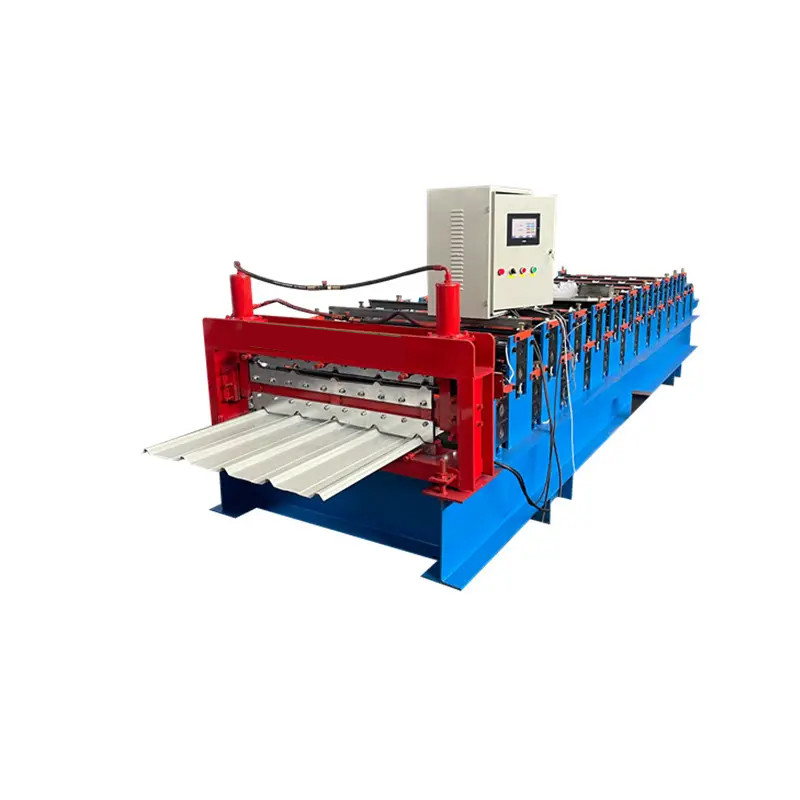

Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw

Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw

Wall Panel Roll Forming Machine 7.5kw

IBR Roll Forming Machine 7.5kw

Double Layer Wall Panel Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw
Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw
Detail Produk
Nama Produk:
Panel Dinding Lembaran Atap Mesin Roll Forming Lapisan Ganda Mesin Roll Forming IBR
Dimensi (P*L*T):
7,5*1,3*1,3m
Bahan mentah:
Galvalum, Galvanis
Kecepatan kerja:
8-15 m/mnt
Ketipisan bergulir:
0.3-0.8mm
Bahan poros:
45# baja
Tenaga Motorik:
7,5 kW
Pasokan daya:
380V, 60Hz, 3Ph
Profil:
Seperti yang diminta pelanggan
Menyoroti:

Wall Panel Roll Forming Machine 7.5kw

,

IBR Roll Forming Machine 7.5kw

,

Double Layer Wall Panel Roll Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Roofing Sheet Wall Panel Double Layer Roll Forming Machine IBR Roll Forming Machine


  Double layer color steel tile press will be the combination of two models together, reasonable structure, beautiful appearance,with the characteristics of saving space, simple operation and so on.
  The basic procedure is combine decoiler & straightener, high speed punch press, servo feeder, main roll forming machine, auto shearing station and output tables.




Specification

Model 840/900
Rod 18
Production and processing speed 10 m/min
Processing thickness color steel 0.8mm
Axle diameter of roll Ø70
Frame 300H steel welding
Medium plate 16mm
Transmission mode 1 inch sprocket chain drive
Shaft material 45# quenching and finishing machining
Wheel material 45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power 4KW pure copper motor
Oil pump motor 4KW
Control system touch screen setting
Shear hydraulic mold shear
Cutter plate Cr12 blade







Advantage



   The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.



Payment terms



  30% in advance as down payment

  70% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.





Double Layer Wall Panel Roll Forming Machine IBR Roll Forming Machine 7.5kw 0
