Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min

Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min

Customizable Cold Roll Forming Machine

Customizable Double Layer Roll Forming Machine

Cold Roll Forming Machine 15m/min

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Detail Produk
Nama Produk:
Mesin Bentuk Atap Gulungan Dingin Lapisan Ganda Trapesium Panel Baja yang Disesuaikan
Dimensi (P*L*T):
7,5m*1,6m*1,4m
Bahan mentah:
Galvalum, Galvanis
Kapasitas Produksi:
15m/mnt
Berat:
3500 kg
Bahan roller:
45 # berlapis Cr
Pasokan daya:
380V 50Hz 3 fase (dapat disesuaikan)
Bahan pemotong mesin:
CR12
Ketebalan pelat:
0.3-0.8mm
Sistem Pengendalian:
Kontrol PLC
Menyoroti:

Customizable Cold Roll Forming Machine

,

Customizable Double Layer Roll Forming Machine

,

Cold Roll Forming Machine 15m/min

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine

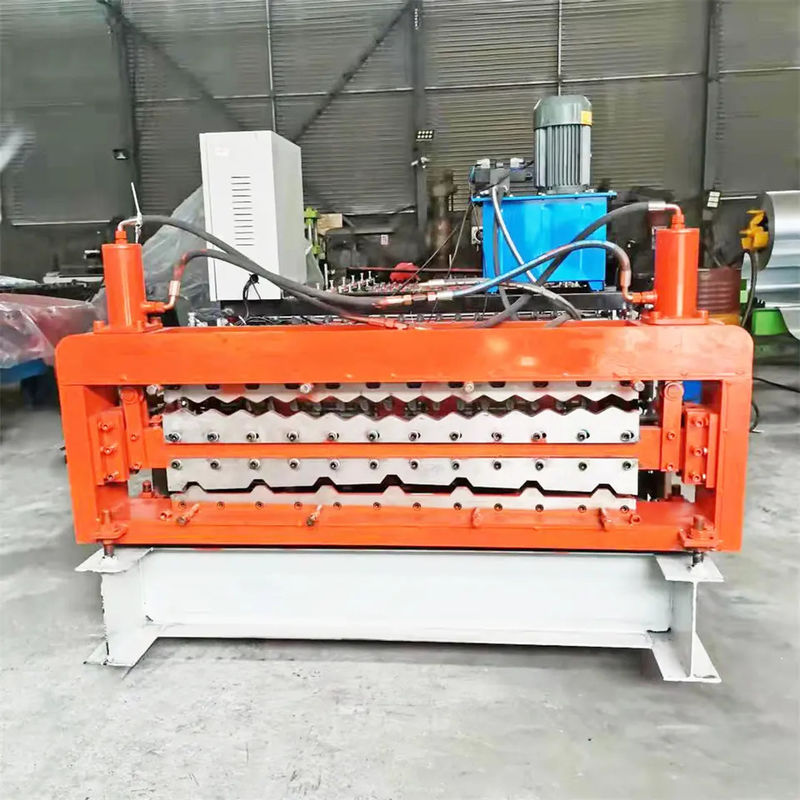

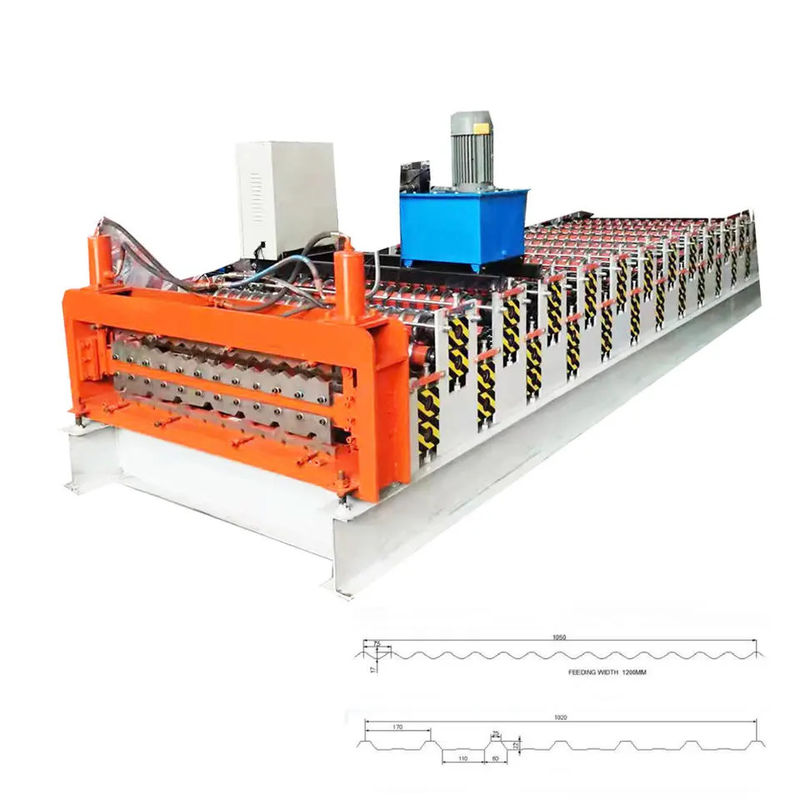

The picture shows the whole process of Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine : MOCustomized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form MachineTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.



New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine
1.This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Set length and quantity on the control panel,machine will auto working
5.Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.


Specification

No
Item
Data
1
Raw material width
1000-1200 mm
2
Sheet effective width
750-1000 mm
3
Raw material
Color steel sheet or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Main motor power
3 KW 4 KW 5.5 KW(according to type)
7
Shaft diameter
70mm
8
Control system
PLC control



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min 0
