840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

IBR Type Roof Cold Roll Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
Detail Produk
Nama Produk:
Desain Baru 840 900 Mesin Cold Roll Forming Atap Tipe IBR Lapisan Ganda
Dimensi (P*L*T):
7,5m*1,6m*1,4m
Bahan mentah:
Galvalum, Galvanis
Kapasitas Produksi:
8-15m/mnt
Berat:
6300kg
Bahan roller:
45 # berlapis Cr
Pasokan daya:
380V 50Hz 3 fase (dapat disesuaikan)
Bahan pemotong mesin:
CR12
Lebar makan:
1200mm
Sistem Pengendalian:
Kontrol PLC
Menyoroti:

IBR Type Roof Cold Roll Forming Machine

,

Roof Cold Roll Forming Machine PLC Control

,

IBR Type Double Layer Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

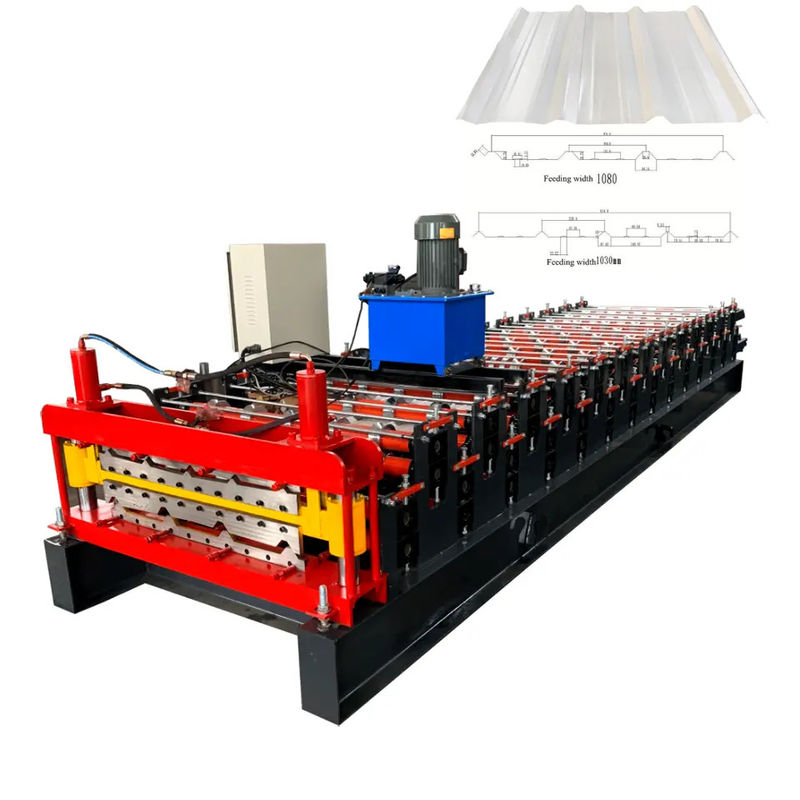

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

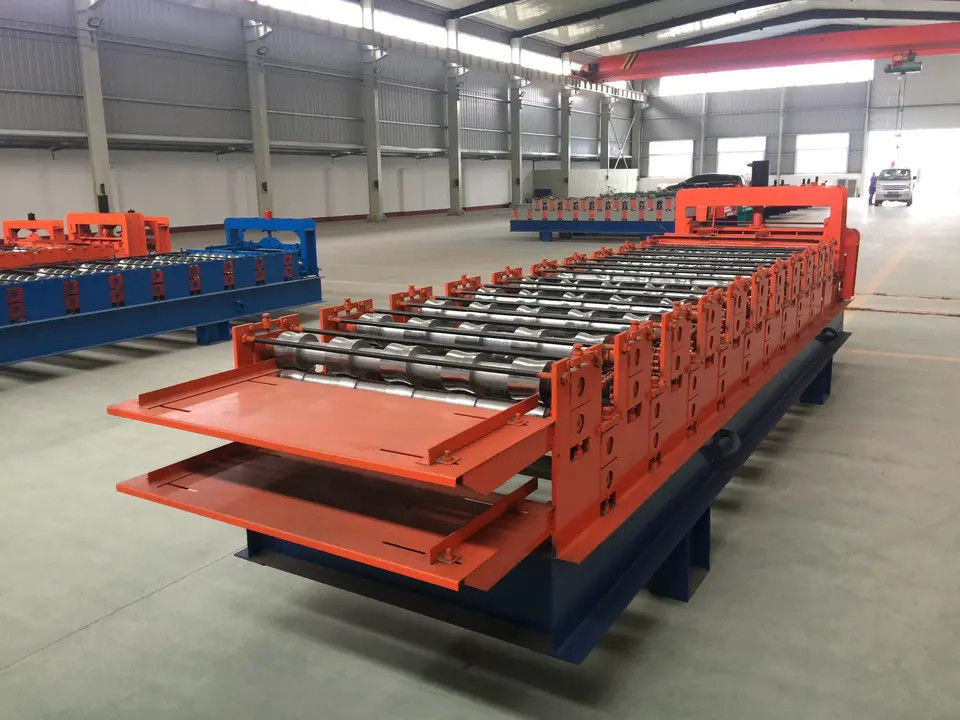

The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.



New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

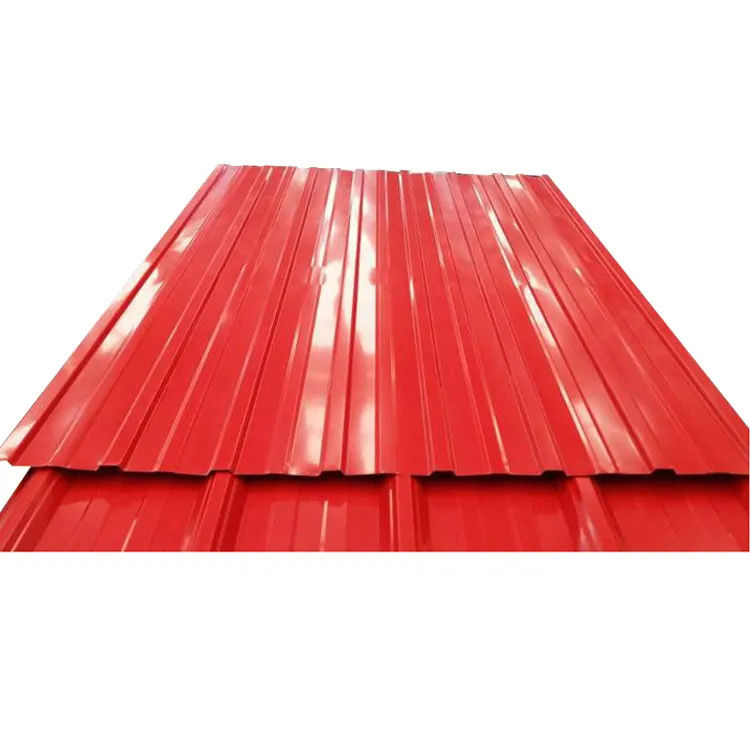

1.This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Set length and quantity on the control panel,machine will auto working
5.Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.


Specification

Dimensions
5600mm*1300mm*1500mm
Weight
 6300 kg
Main frame material
300H Steel
Thickness of plate in equipment
14mm
Roll forming row number
high layer:9 row (900), under layer: 11 row (840)
Forming shaft material
45# steel quenching treatment
Molding shaft dimension
Diameter of 70
Roll shape material
45# steel with hard chrome plating
Kind of drive
Chain wheel chain drive/hydraulic motor drive
Shaft Dia
inch 0.6
Power
6kw
Main motor power
4kw
Forming speed
8-10 m/min/hydraulic transmission 15 m/min
Material thickness
0.3-0.8mm



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 0
