Name: Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control

Double Layer Forming Machine Fully Automated

ibr roll forming machine Fully Automated

ibr roll forming machine Plc Control

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Ibr Dan Mesin Roll Forming Lapisan Ganda Bergelombang Kontrol Plc Otomatis Penuh

Dimensi (P*L*T):

5000*1500*1800mm

Bahan mentah:

Galvalum, Galvanis

Kapasitas Produksi:

10-20m/mnt

Berat:

5000 kg

Bahan roller:

45 # berlapis Cr

Daya hidrolik:

4 KW (sesuai tipe)

Pasokan daya:

380V 50Hz 3 fase (dapat disesuaikan)

Bahan pemotong mesin:

CR12

Lebar makan:

914mm / 1000mm / 1200mm / 1220mm / 1250mm

Menyoroti:

Double Layer Forming Machine Fully Automated

ibr roll forming machine Fully Automated

ibr roll forming machine Plc Control

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

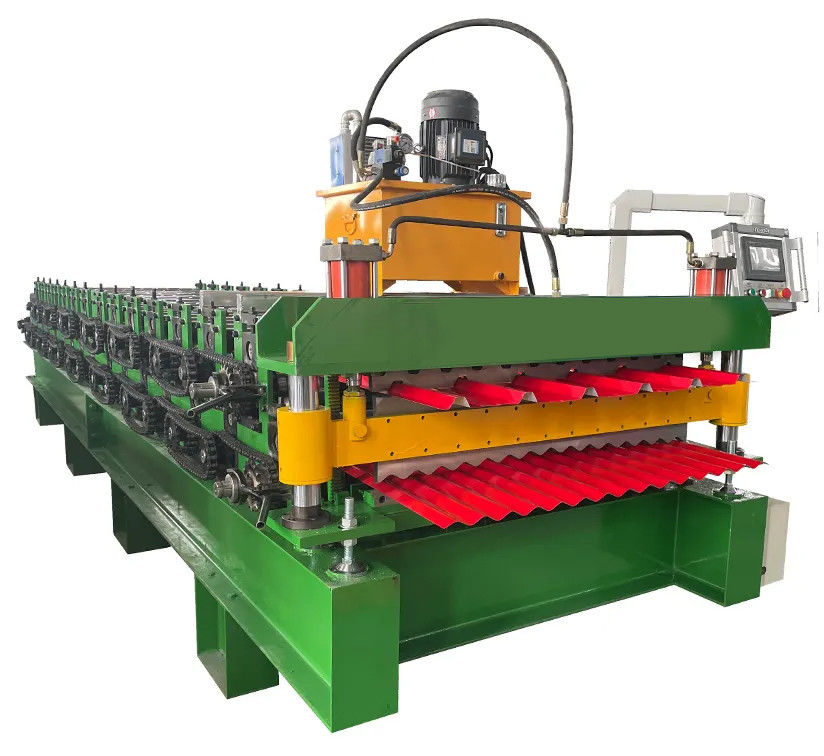

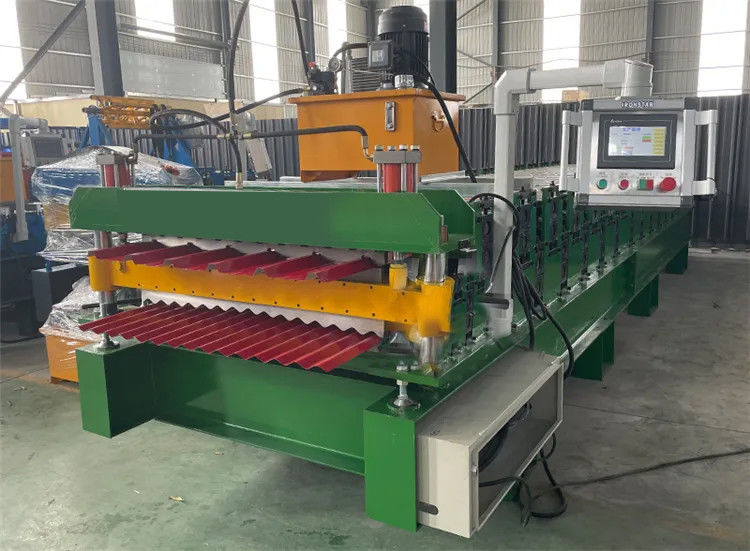

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control Main Features

This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

Roll forming process: uncoiler, roll forming, cut to length, receive the finished product.

Fully Automatic Control System with PLC.

Easy operation: Key in the length and quantity on the control panel.

Two years warranty.

We also can do a customized roll forming machine, We can design the machine according to your specification and profile drawing.

The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors.

Specification

Part Details	Item Name	Specification
Material	Raw Material	PPGI material
Material	Thickness	0.3-0.6 mm
Machine	Roller Station	12-18
	Shaft Material	70 mm
	Shaft Material	45# steel with 0.05mm chrome
	Roller Material	45# steel with 0.05mm chrome
	Machine Size	About 5.51.51.8m
	Machine Weight	About 5 ton
	Machine Color	As customer request
	Working Speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting Tolerance	± 1mm
	Material	CR12
	Operate	Hydraulic cutting
Power	Driving Way	Chain 1 inch
	Main Power	5.5 KW
	Pump Power	4 KW
	Voltage	380v 50hz 3P, or Customize as Customer' request
Control System	PLC Brand	Delta made in Taiwan
	Screen	Touchable Screen
	Language	Chinese, English or Add customer' need
Decoiler	Operation	Manual
	Weight Capacity	3 ton
	Price	Free as gift
Receiving Table	Operation	Manual
	Length	3m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control 0
