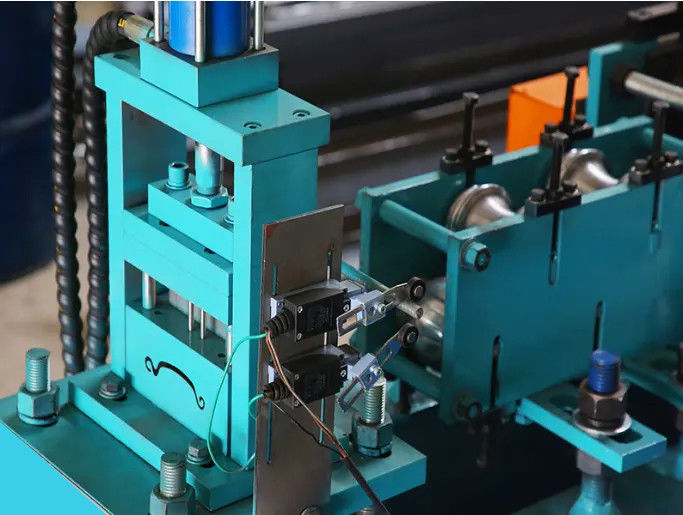

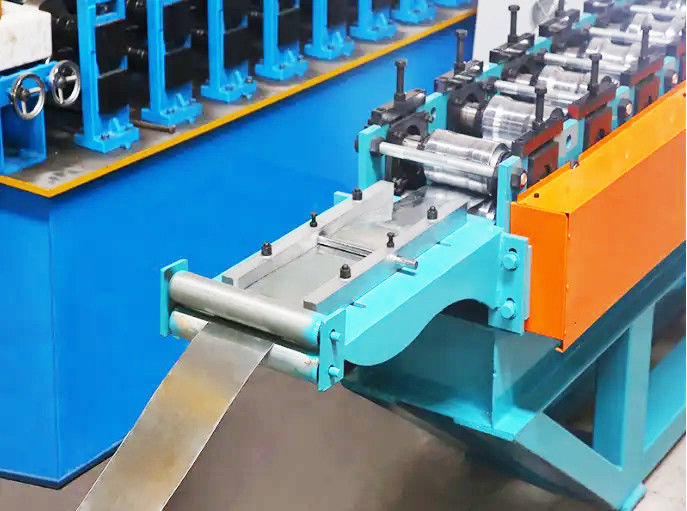

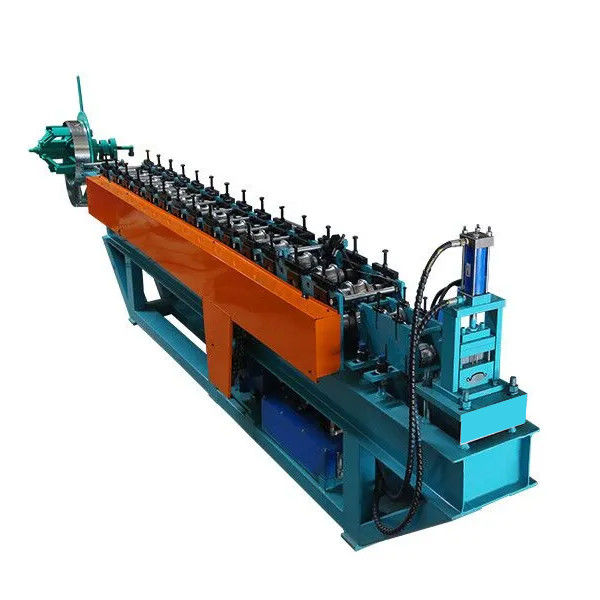

Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving

Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving

Fast Speed Roller Shutter Door Forming Machine

Roller Shutter Door Forming Machine 16m/Min

shutter door roll forming machine Power Saving

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

pintu rana

Hubungi Kami
Minta Penawaran Harga
Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving
Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving
Detail Produk
Nama Produk:
Mesin Roll Forming Pintu Rana Roller Berkualitas Tinggi
Bahan Kerja:
Lembaran Galvanis (GI), baja gulungan dingin (CRC)
Kecepatan kerja:
14-16m/mnt
Ketebalan:
0.3-0.8mm
Voltase:
380V 50Hz, 380V.50HZ.3Fase
Berat:
7000 kg
Bahan Pemotong:
Baja Perkakas Cr12Mov
BATANG:
50mm
Kekuatan:
22kw
Bahan gulung:
45 # baja bermutu tinggi
Menyoroti:

Fast Speed Roller Shutter Door Forming Machine

,

Roller Shutter Door Forming Machine 16m/Min

,

shutter door roll forming machine Power Saving

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door Machine



High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door MachineWork Follow:

Decoiler→Feed Guide Device→Rolling Forming System→Leveling Device →Hydraulic Post Cutting Device→Exit Rack


   Roll forming machines have a variety of applications, like steel doors industry. FMS is experienced in the designing and building for various steel door components roll forming machines.

During years of experience in roll forming developing and researching, FMS supplies optimal roll forming machines for the manufacturing of steel doors; the most common door products roll formers that can be found in the markets are like steel rolling shutter panel roll forming machine, rolling shutter slat roll forming machine, door track or guide rail roll forming machine and steel safety door frame roll forming machine etc.





Specification

Body frame made
400#H type steel by welding
Voltage
380V 50Hz
Weight
7000kg
Real forming speed
14-16m/min
Power
22Kw
Side wall thickness
Q235 t18mm
Shaft Diameter
φ50mm, precision machined
Main motor
5.5KW,frequency speed control
Chain size
 one inch with 18 teeth
Roll material
45# high grade steel
Cutting blade material
Cr 12 high grade steel
Hydraulic motor
3KW
Core Components
Motor, PLC
Cutting pressure
0-16Mpa,
Material Thickness
0.5-0.8mm;0.8-1.2mm
Dimension(L*W*H)
20*1*12m



Guarantee





  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
