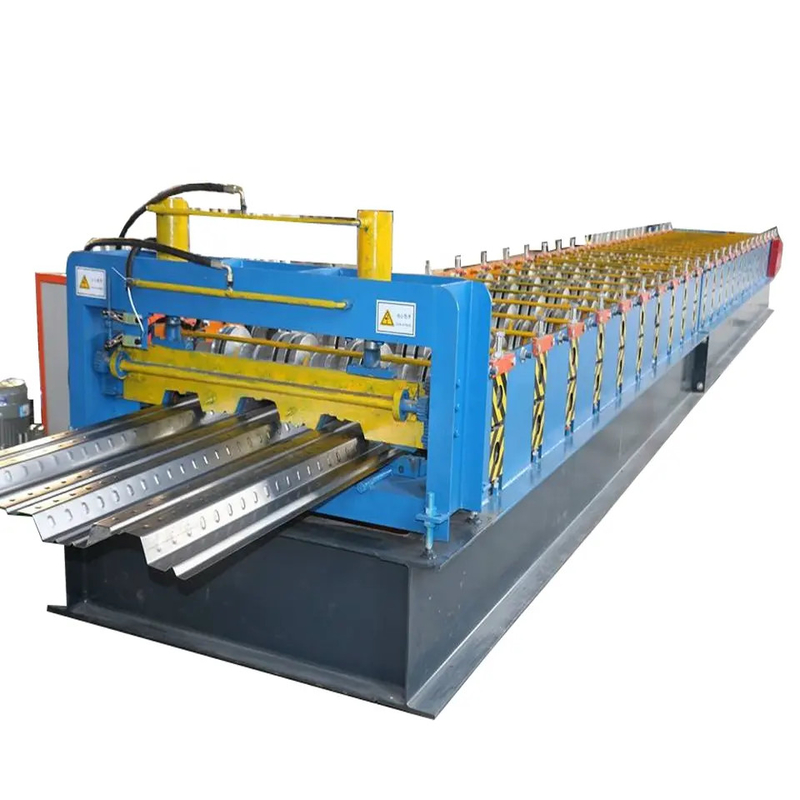

Name: 22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min

22KW steel deck roll forming machine

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dek Lantai Logam Tenaga Motor 22KW Kecepatan Pembentukan 10-12m/Min

Cutting Blade Material:

CR12 padam

Rangka mesin:

Baja 400 jam atau 450 jam

Bahan poros:

Kelas Tinggi No.45 Ditempa

Berat:

6.0t

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

10-12m/mnt

Ketipisan bergulir:

0.8-1.5mm

Dimensi (P*L*T):

11500*1500*1500mm

Tenaga motor hidrolik:

3kw-7.5kw

Menyoroti:

22KW steel deck roll forming machine

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

22KW Motor Power Metal Floor Deck Roll Forming Machine 10-12m/Min Forming Speed

Working flow

Decoiler----feeding----roll forming----pressing----cut to length----output table

Features of Deck Floor Roll Forming Machine:

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.

Applications of Deck Floor Roll Forming Machine:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.

Specification

Cutting & Hydraulic type	Cut slide/Double guide pillar
Feeding Thickness	0.8mm -1.5mm
Hydraulic motor power	7.5kw
Effective width	Better as your drawing or from our designer
Cutting drive	Decelerating motor Chain drive gear all by high frequency
Productivity	10-12m/min
Length measurement	Encoder
Roll material	45#steel
Control System	Panasonic/Siemens/Schneider/Delta PLC Colored Touch Screen
Cutter material	Cr12 mould steel heat-treated hardness of HRC=60-62 degrees
Chain Size	1 inch/2 inch
Overall Size	Size of our designer
Backboard Thickness	17mm-200mm
Total Weight	5t-12t
Feeding Material	Better as your drawing or from our designer

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
