Name: 380Volt PU Sandwich Shutter Door Roll Forming Machine Making Machine 22Kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pintu rana
Price: 12000.00 USD
Availability: InStock

Rumah > Produk > Mesin pembentuk gulungan pintu rana >

380Volt PU Sandwich Shutter Door Roll Forming Machine Making Machine 22Kw

380Volt Shutter Door Roll Forming Machine

Shutter Door Roll Forming Machine 22Kw

roller shutter door making machine 22Kw

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

pintu rana

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

PU Sandwich Shutter Door Mesin Roll Forming Membuat Mesin Memproduksi Harga

Bahan mentah:

Galvalum, Galvanis, PPGI

Kecepatan kerja:

8-15m/mnt

Ketebalan:

0.3-0.8mm

Voltase:

380V 50Hz, 380V.50HZ.3Fase

Berat:

9000 kg

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Bahan Pemotong:

CR12

Kekuatan:

22kw

Bahan gulung:

45 # baja bermutu tinggi

Menyoroti:

380Volt Shutter Door Roll Forming Machine

Shutter Door Roll Forming Machine 22Kw

roller shutter door making machine 22Kw

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

PU Sandwich Shutter Door Roll Forming Machine Making Machine Manufactures Prices

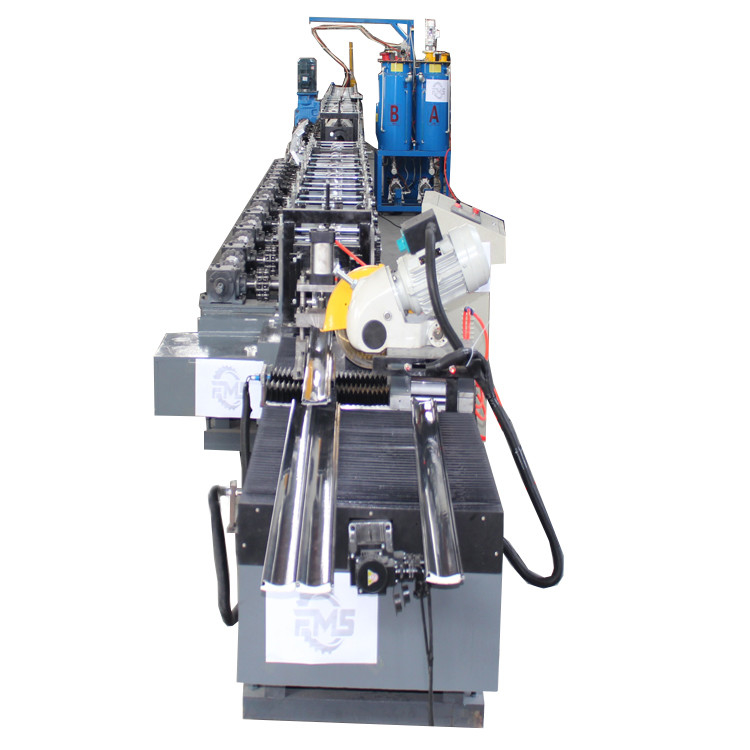

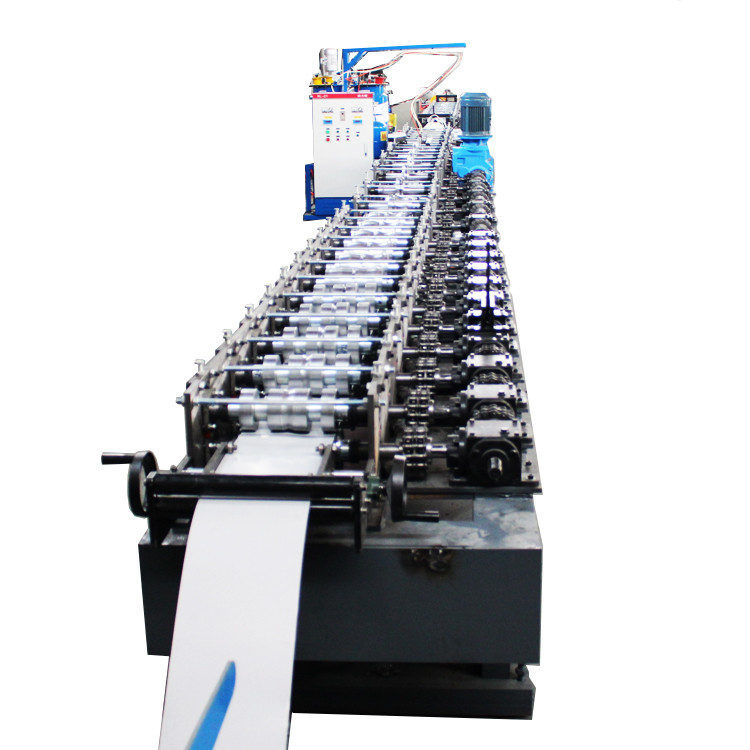

Put the steel coil on the un-coiler----Feeding guide equipment----Roll-forming Machine----Foaming machine ----Adjusting device ----Punching device----Flying saw cutting-----finished products on stacker

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thuscontinuous automation production of foaming roller shutter door is achieved.

PU Sandwich Shutter Door Roll Forming Machine

1. Rolling up and down, the noise is smaller, the work is quieter, which means less damage to the door every day, longer working hours, and more suitable for human care in some crowded areas.

2. PU shutter doors and windows are sound absorbing materials, so once you shake the shutter door, most of the street sound will be absorbed by the foam in the shutter door.

3. Fireproof and energy saving: The foam density is large, which can save area energy and fire. Therefore, it is highly recommended to install the main door and window in a safer and more economical room.

Specification

Warranty of core components	1 Year
Voltage	380V 50Hz
Weight	9000kg
Production Capacity	5-8m/min
Power	22Kw
Dimension(LWH)	2011.2m
Applicable Material	UPVC, Aluminum
Production Capacity	8-15M/Min
Voltage	380V.50HZ.3Phase
Weight	9000 kg
Roll material	45# high grade steel
Cutting blade material	Cr 12 high grade steel
Frame material	300 H-high grade steel
Core Components	Motor, PLC
Roll stations	18 rows
Rolling thinckness	0.3-0.8mm
Dimension(LWH)	20112m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
