Name: PLC Controlled Arch Curving Roof Roll Forming Machine High Productivity
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Crimping Hidraulik
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

PLC Controlled Arch Curving Roof Roll Forming Machine High Productivity

PLC Controlled Roof Roll Forming Machine

Roof Roll Forming Machine High productivity

roof panel roll forming machine High productivity

Tempat asal:

China daratan

Nama merek:

CANGZHOU

Sertifikasi:

ISO CE

Nomor model:

Crimping Hidraulik

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Melengkung Lengkung/Mesin Roll Forming Atap Melengkung

Bahan mentah:

PPGL,GL,PPGI,GI,

Dimensi (P*L*T):

8900mm*2230mm*2300mm

Ketipisan bergulir:

0,6-1,5mm

Bahan poros:

45# Baja Luar

Bingkai utama:

Baja 350H

Sistem Pengendalian:

PLC

Voltase:

380v50hz3ph

Menyoroti:

PLC Controlled Roof Roll Forming Machine

Roof Roll Forming Machine High productivity

roof panel roll forming machine High productivity

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

40 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

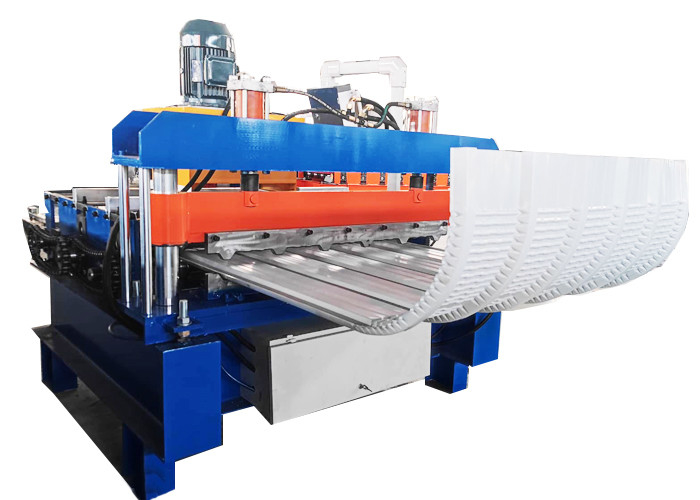

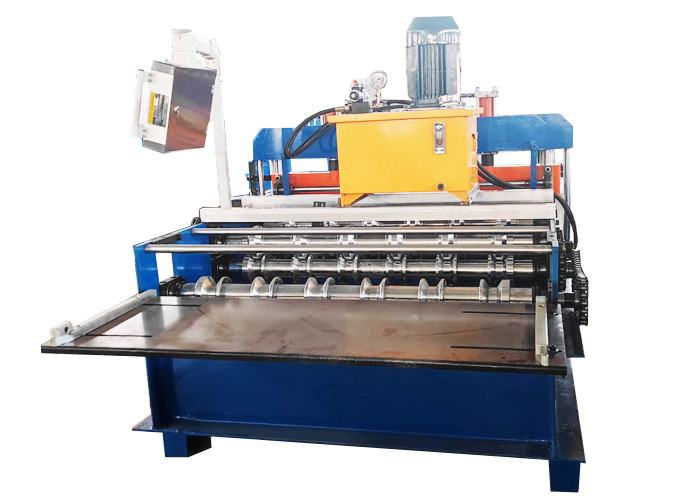

Arch Curving Roof Roll Forming Machine/Curved Roof Roll Forming Machine

1 More efficient and accurate execution of production orders;

2. High equipment reliability;

3. Little waste of materials and energy;

4. High productivity;

5. High quality materials, get a longer service life;

6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;

7. Customized coil processing solutions to solve all aspects of technical problems.

All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.curving roof sheet cold roll forming machine roof curving cold roll forming machinery

Specification

No.	Item	parameter
1	machine size	8900mm2230mm2300mm
2	Feeding width	914-1250mm
3	Equipment weight	0.5T
4	Material of shaft	45#steel adjustable treatment
5	Out diameter of shaft	φ70mm
6	Material of roller	Cr12, hard chromize coated HRC58-60°C
7	Number of forming rollers	3-4 rows
8	Main frame	300 H steel
9	Thickness of medium plate	16mm
10	Thickness of formed steel	0.3-0.8mm
11	Main motor power	4 KW
13	Forming speed	8-10m/min
15	Removable or not	Removable type with 4 wheels
16	Product name	IBR metal sheet curve forming machine

Application

This Curved roofing arch sheet building machine hydraulic crimping machine will be very smooth and beautiful without any scratch on surface.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.Fully Automatic Control System with PLC.Easy operation: Key in the length and quantity on the control panel.

Payment terms

40% in advance.

60% before the shipment is processed.

Delivery

FOB Tianjin Xingang Port or CNF Designated port

The Delivery Time: 30 days after the down payment is received
