Rumah > Produk > mesin roll forming pipa bawah >

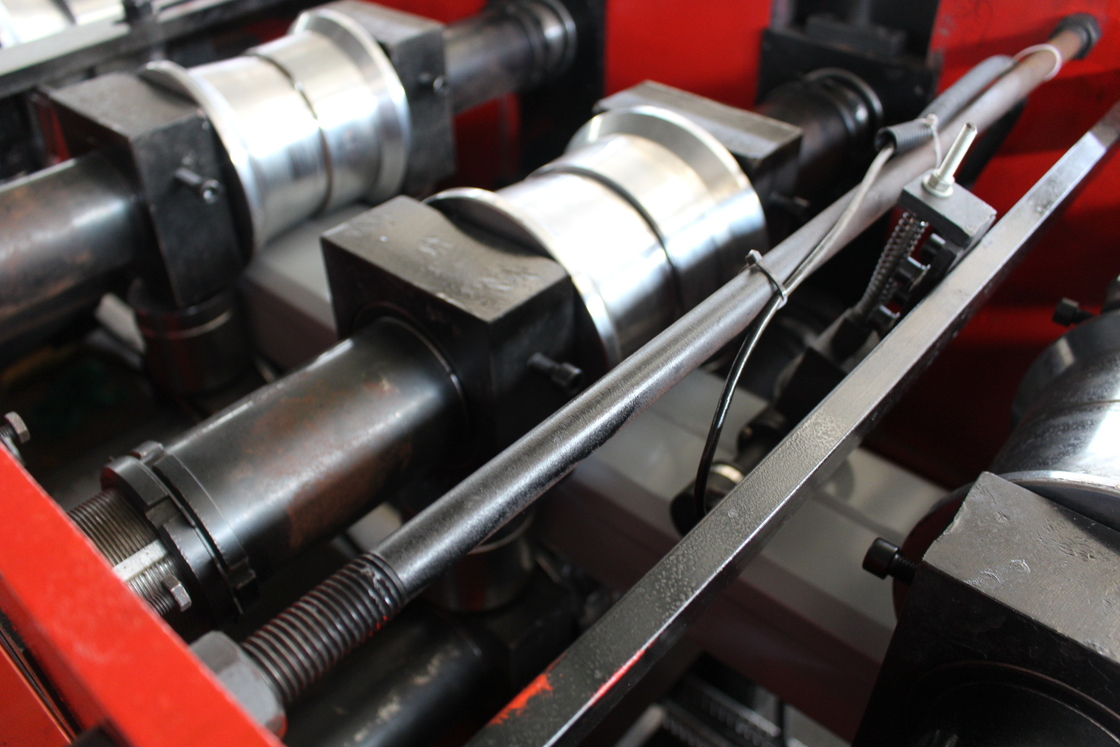

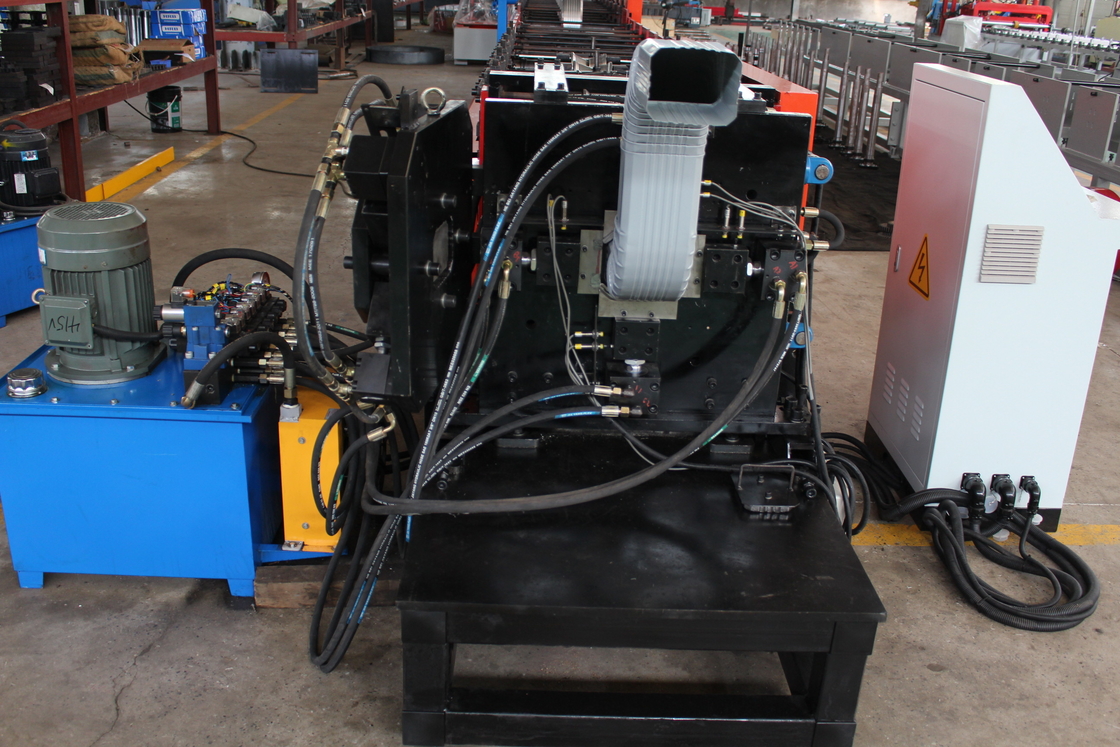

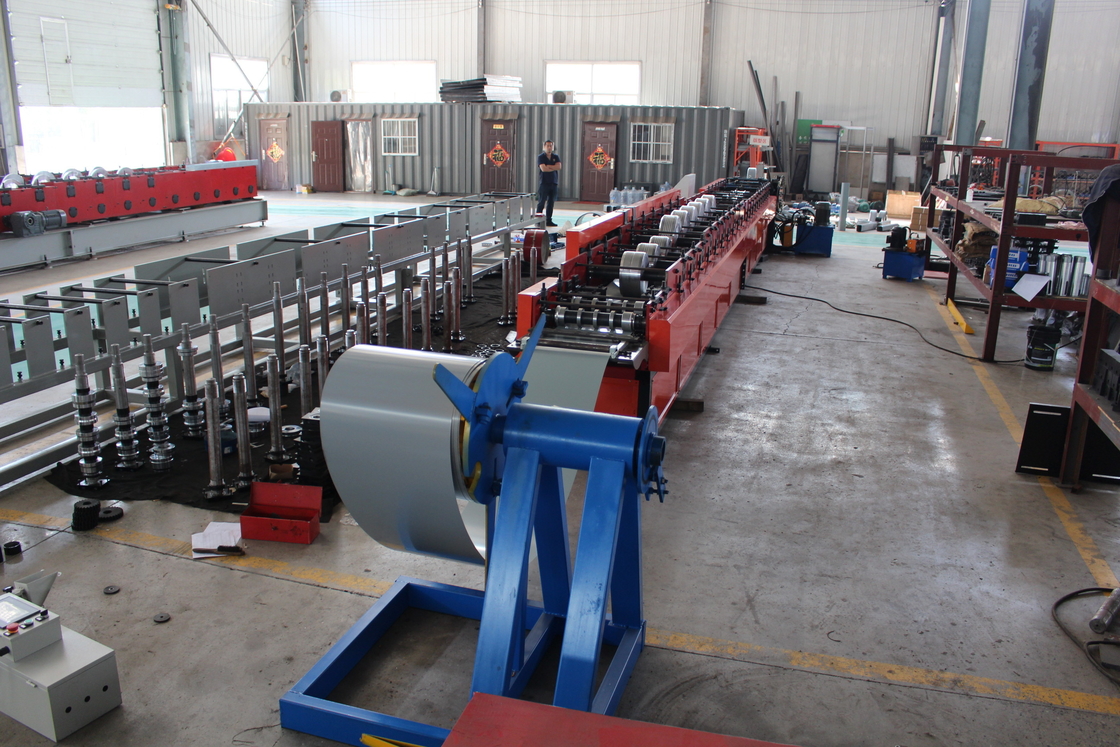

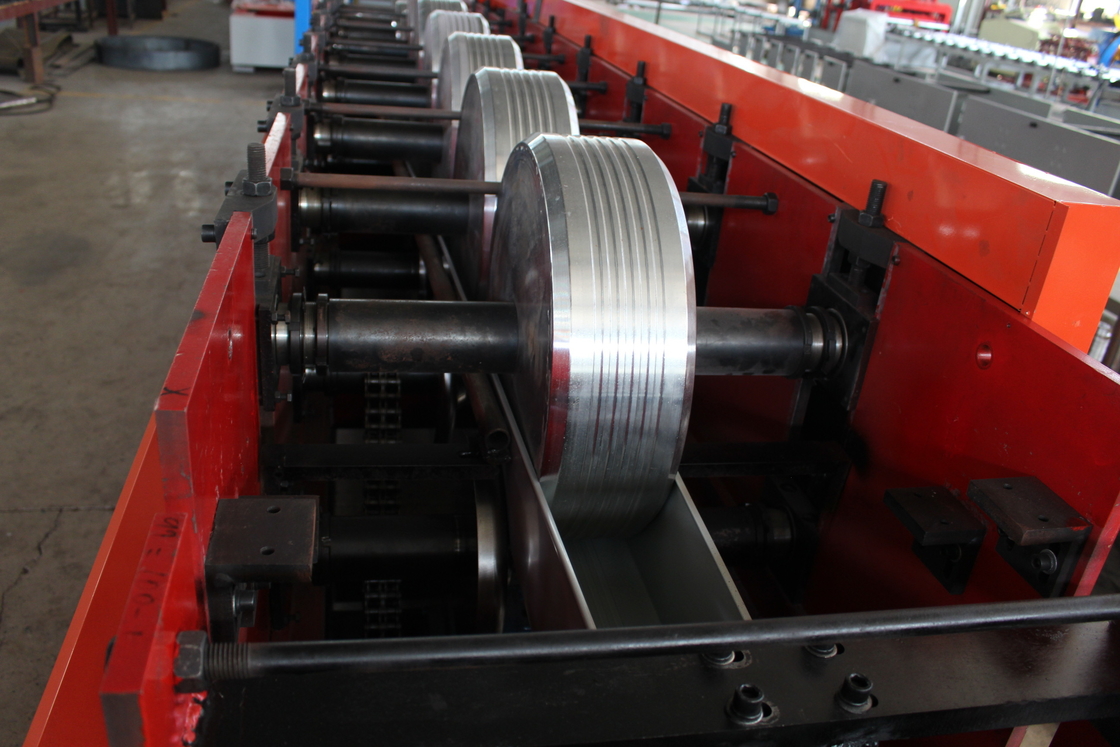

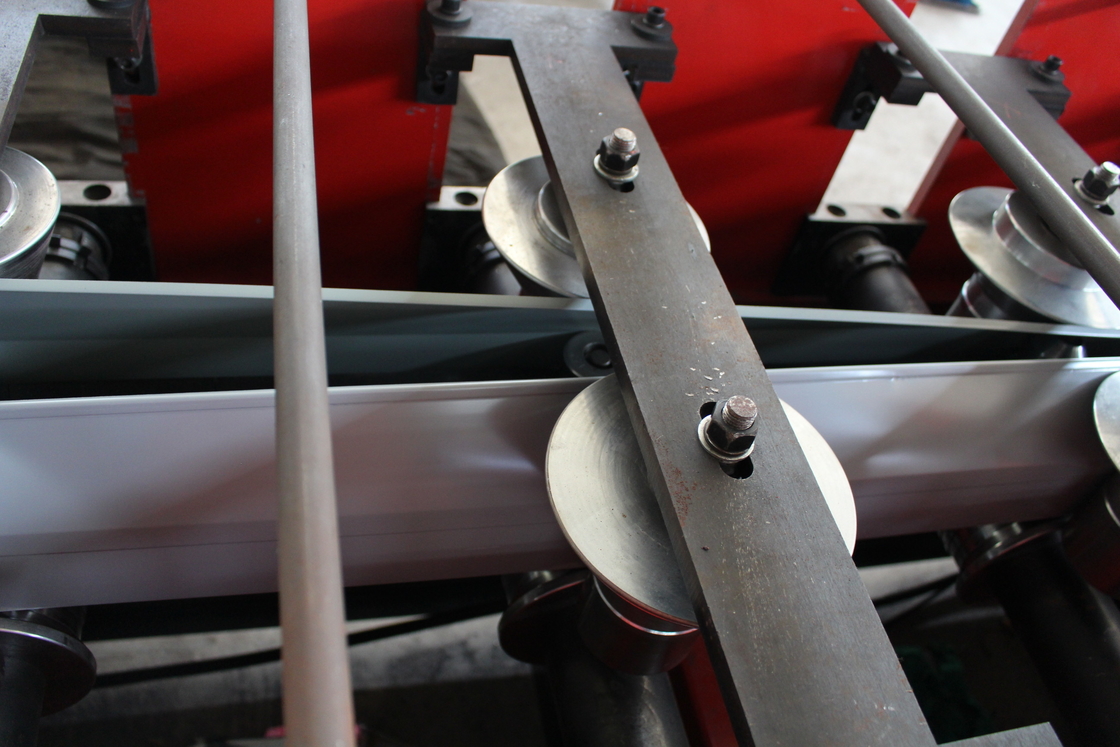

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm

0.8mm Downspout Roll Forming Machine

0.8mm downspout making machine

3phases Downspout Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Downspout Plus Siku

Hubungi Kami
Minta Penawaran Harga
3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm
3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm
Detail Produk
Nama Produk:
Mesin Roll Forming Downspout Siku Aluminium Persegi Panjang / Bulat
Bahan mentah:
PPGI,AL,GI
Voltase:
380V 50Hz 3Phase
Sistem Pengendalian:
PLC
Layanan purna jual disediakan:
dukungan teknis seumur hidup
Jaminan:
1 tahun
Menyoroti:

0.8mm Downspout Roll Forming Machine

,

0.8mm downspout making machine

,

3phases Downspout Roll Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation on line

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik
Harga bagus Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods on line

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik
Harga bagus Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor on line

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik
Harga bagus Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft on line

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Rain Water Downspout Roll Forming Machine Elbow Bending Suitable Materials Thickness 0.4 - 0.8mm


Downspout elbows connect to downspouts. In order to fit inside another elbow or downspout, one end of the gutter elbow is crimped. To direct drainage in a particular direction, downspouts are equipped with elbows at ground level.
Profile

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 0
Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI
2 Raw Material Thickness 0.3 mm - 0.8 mm
3 Working Speed 8-15 m/min
4 Roller Station 20  Stations
5

Dimension (L*W*H)

 9200 mm*800 mm*1200 mm
6 Machine Weight 9000 KG
7

Electrical Control System

PLC (can be customized)
8

Drive Motor Power

 5.5 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application







Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.











3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 1
