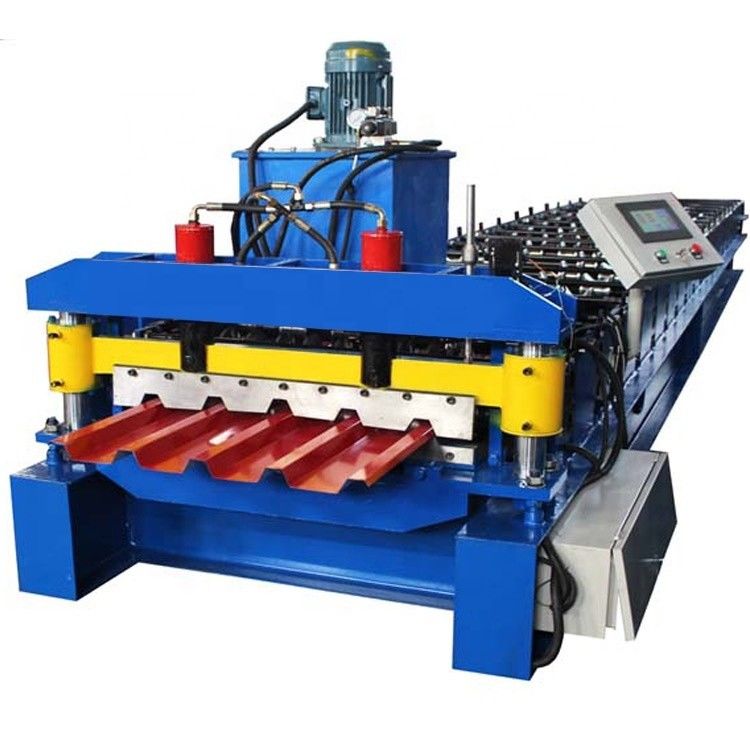

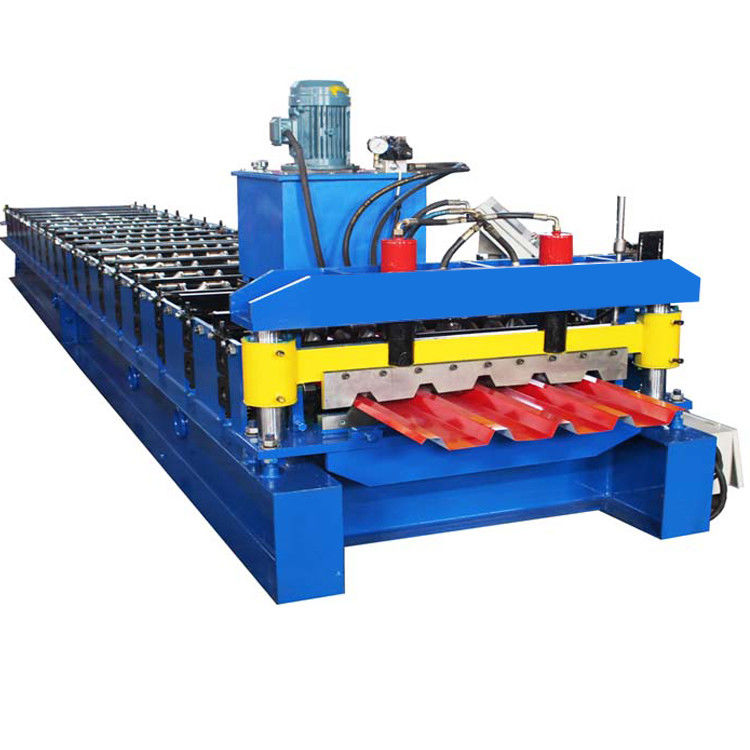

Name: Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR840
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm

IBR Type Roof Roll Forming Machine

Touch Screen Roof Roll Forming Machine

Width 840mm Roof Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Nomor model:

IBR840

Hubungi Kami

Minta Penawaran Harga

Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm

Detail Produk

Jenis ubin:

tipe IBR

Nama Produk:

Mesin Roll Forming Atap IBR Otomatis Berjalan Dengan Ubin Lebar Efektif 840mm

Bahan mentah:

Lembaran PPGI/Galvanis

Ketebalan:

0.2-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Dimensi (P*L*T):

5500*1200*1200mm

Menyoroti:

IBR Type Roof Roll Forming Machine

Touch Screen Roof Roll Forming Machine

Width 840mm Roof Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Automatic Cotrol Touch Screen IBR Roof Roll Forming Machine Effective Width 840mm

1) Linear structure, easy to install and maintain.
2) High -quality materials of the drum and axis.
3) Two -way column -type cutting system with two straight lines
4) Adopt advanced world -renowned brand components for pneumatic, electrical and operating components.
5) Run in a highly automated and intelligent environment

Equipment Detailed Parameters:

No
1	Suitable Material	PPGI
2	Width of the raw material	1000 mm
3	Rows of rollers	11 rows
4	Appearance size	550012001200mm
5	Total power	Main motor 3kw+3Kw
6	Thickness of raw material	0.3-0.6mm
7	Speed	8-15m/min
8	Diameter of shaft	￠75mm
9	Voltage	380V 50Hz 3phases
10	Big frame	350H steel
11	Middle plate	16mm

Application

It is suitable for industrial and civilian buildings, warehouses, special buildings, large-span steel structured roofs, wall surfaces, and interior and exterior wall decorations.

Advantage

As a result of its light quality, high strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, and life span, the attributes of long, exempt maintenance have been widely promoted and applied.
