Name: Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Mesin pembentuk gulungan talang
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Steel Rain Gutter Roll Forming Machine

Downspout Roll Forming Machine PCL Control

Hydraulic Downspout Roll Forming Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Mesin pembentuk gulungan talang

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Pemotongan Hidraulik Hujan Kumpulkan Mesin Roll Forming Talang Downspout Kontrol PCL

Kapasitas Produksi:

8-12 m/mnt

Cutting Blade Material:

Kr 12 Bergerak

Ketipisan bergulir:

0.3-0.8mm

Dimensi (P*L*T):

7800*1200*1400MM

Berat kotor per satuan produk:

4500kg

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Menyoroti:

Steel Rain Gutter Roll Forming Machine

Downspout Roll Forming Machine PCL Control

Hydraulic Downspout Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

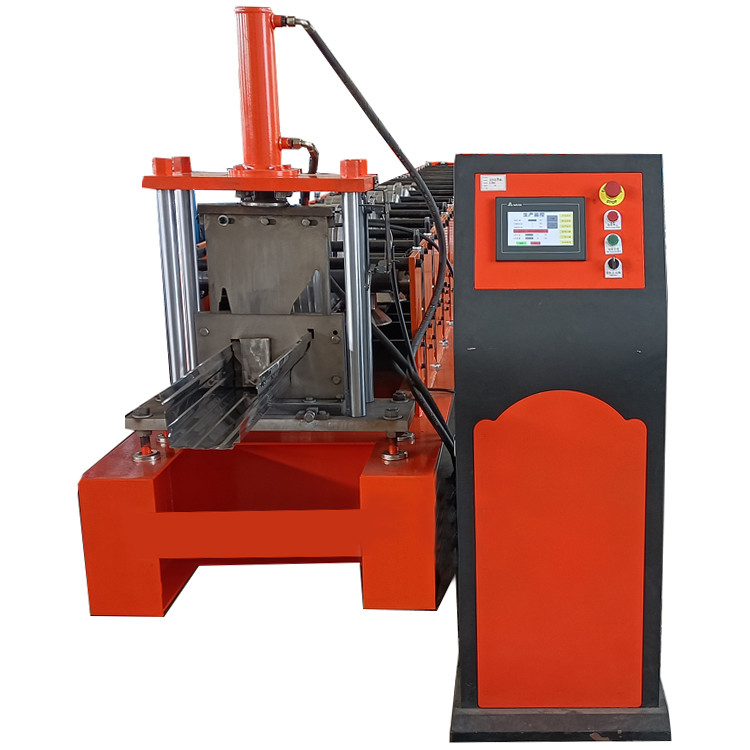

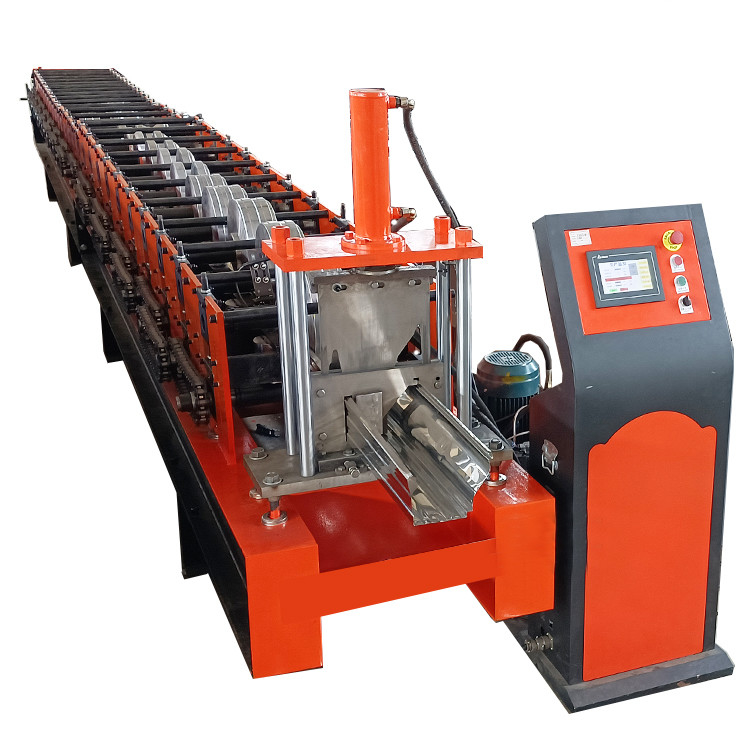

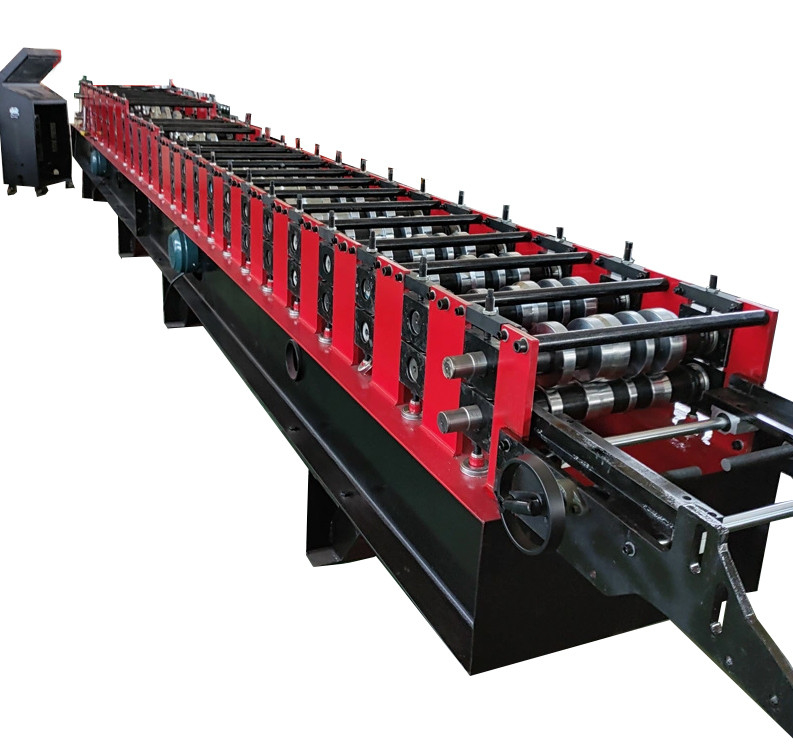

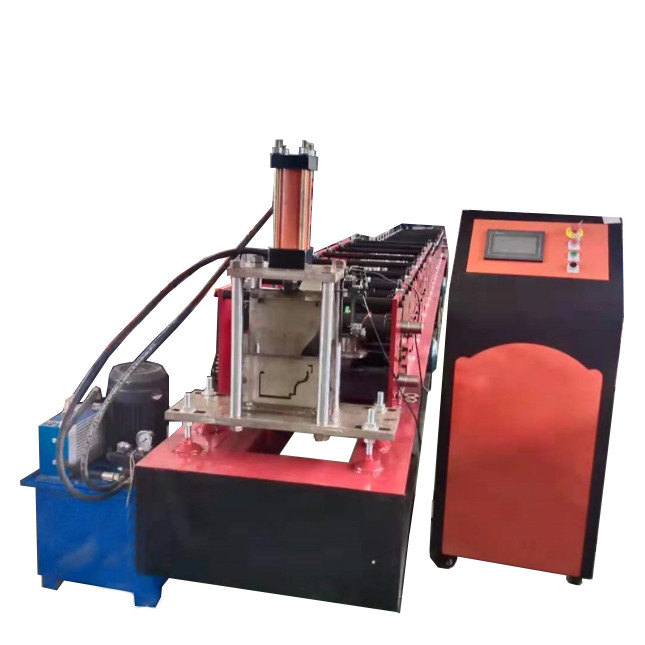

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Steel Rain Gutter Roll forming machine . After the establishment of the roll, the product is longer than the non -aging -feet PPC pipe. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC, and adjusting speed technology, and realizes the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	colored steel coil
Material thickness	0.3-0.8mm
Frame design	according to design drawing
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ70mm
Main motor power	7.5 KW
Max. Line speed of roll former	15m/min
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.

Guarantee

The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).

Payment terms

40% in advance

60% is paid before shipping
