Name: Trapezoid Type 5 Rib Hydraulic Cutting Roof Tile Roll Forming Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5 IBR
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Trapezoid Type 5 Rib Hydraulic Cutting Roof Tile Roll Forming Machine PLC Control

5 Rib Roof Tile Roll Forming Machine

Roof Tile Roll Forming Machine PLC Control

Trapezoid Type Roof Tile Roll Forming Machine

Tempat asal:

CINA

Nama merek:

fms

Sertifikasi:

Nomor model:

5 IBR

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Genteng Pemotong Hidraulik Tipe Trapesium 5 Rib Kontrol PLC

Metode:

Pemotongan hidrolik

Kisaran Ketebalan:

0,3-0,6 mm

Kecepatan kerja:

6-15m/menit

Berat mesin:

4,5 Ton

Bahan roller:

380V 3 fase 50Hz

Spesifikasi:

6300mm*1500mm*1500mm(L*L*T)

Disesuaikan:

Disesuaikan

Menyoroti:

5 Rib Roof Tile Roll Forming Machine

Roof Tile Roll Forming Machine PLC Control

Trapezoid Type Roof Tile Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

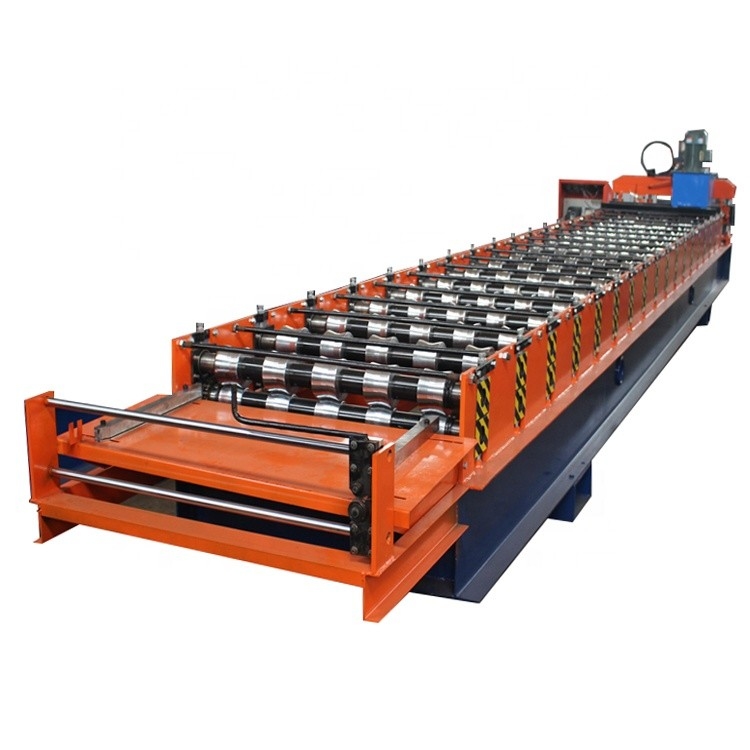

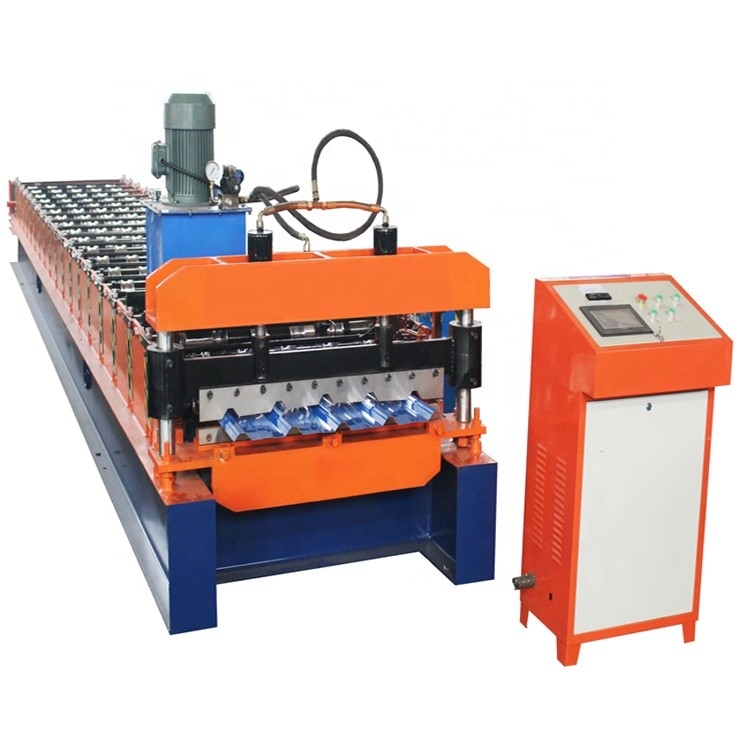

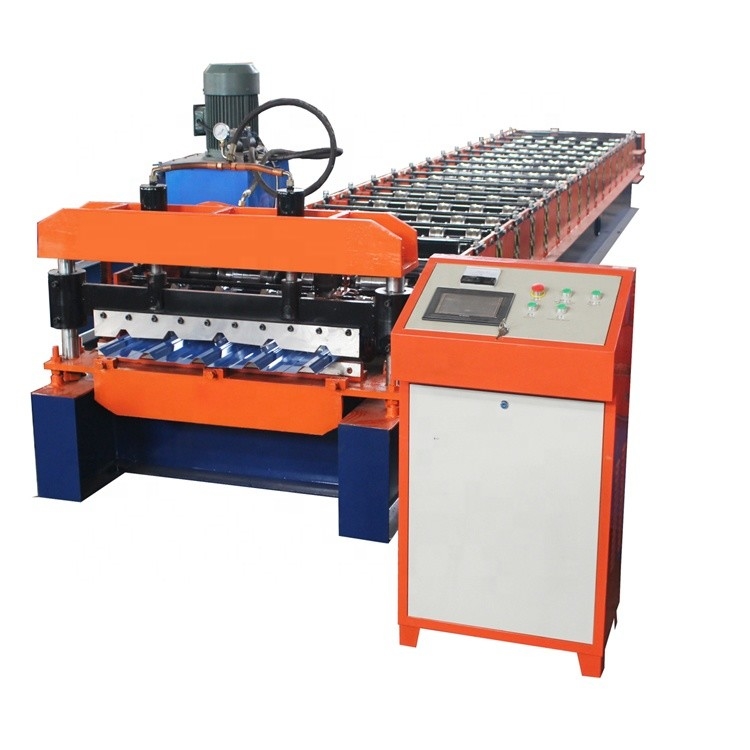

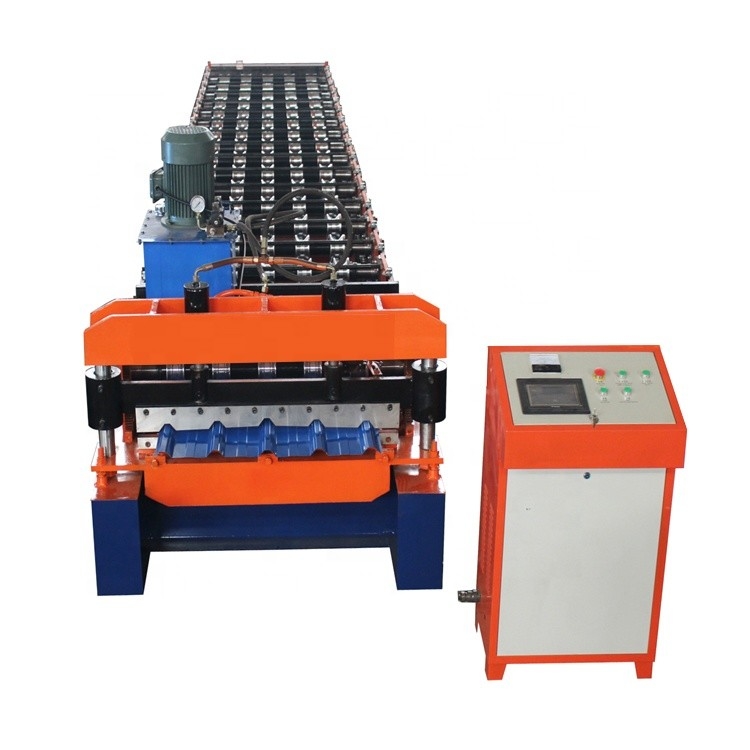

Trapezoid Type 5 Rib Hydraulic Cutting Roof Tile Roll Forming Machine PLC Control

It makes colored steel roof plates , which are used in buildings, factories, supermarkets, workshop etc. For this machine, it is suitable for width of 1220mm and thickness range from 0.3 mm to 0.6 mm. We use the 14 mm thick wall panel type to make the rack strong. Generally, it can run to 15m/min at the highest speed. PLC control operation make the machine easy to use.

Specification

Main motor power	4.5kw
Drive	1.2'' single chain
Type:	Wall board
Main shaft dia	¢60mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	18 groups
Raw material	0.3-0.6mm
Coil width	1220mm
Working speed	7m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 4.5 ton
Size of machine	About 6300×1200×1500mm L x W x H
Color of machine	as per request
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Advantage

It has the characteristics of light weight, high strength, rich color, convenient and fast structure, earthquake resistance, fire resistance, rainproof ability, longevity and no maintenance. It has been widely promoted and applied

Application

The color section steel plate is a configuration plate, which uses color coating steel plates, and rolled it into various waveforms. It is suitable for industrial and civil buildings, special buildings in warehouses, and large steel structure houses. Wall decoration, etc.
