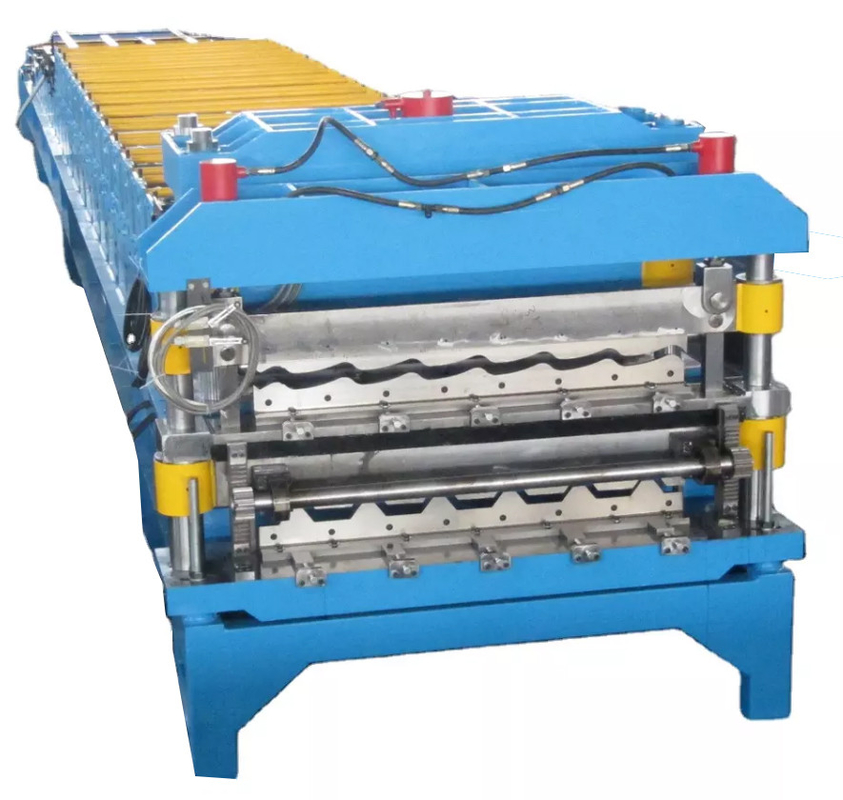

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized

10m/min Double Roll Forming Machine

Galvanized Double Roll Forming Machine

Cr12 Quenched Double Layer Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Panel Dinding Genteng Atap Mesin Roll Forming Lapisan Ganda Baja Warna Galvanis

Jenis ubin:

Baja Berwarna

Kecepatan produksi:

10-15m/mnt

Dimensi (P*L*T):

7300mm*1500mm*1200mm

Voltase:

380V 50HZ 3Phase atau sebagai permintaan pelanggan

Berat:

5000 kg

Cutting Blade Material:

CR12 padam

Ketipisan bergulir:

0,4-0,8mm

Menyoroti:

10m/min Double Roll Forming Machine

Galvanized Double Roll Forming Machine

Cr12 Quenched Double Layer Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized

Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine

Detailed Parameters:

Material of the profile	up to 235Mpa, GI or color steel
Thickness range	0.3-0.7mm
Main motor power	5.5kw, AC motor, motor inside of main machine

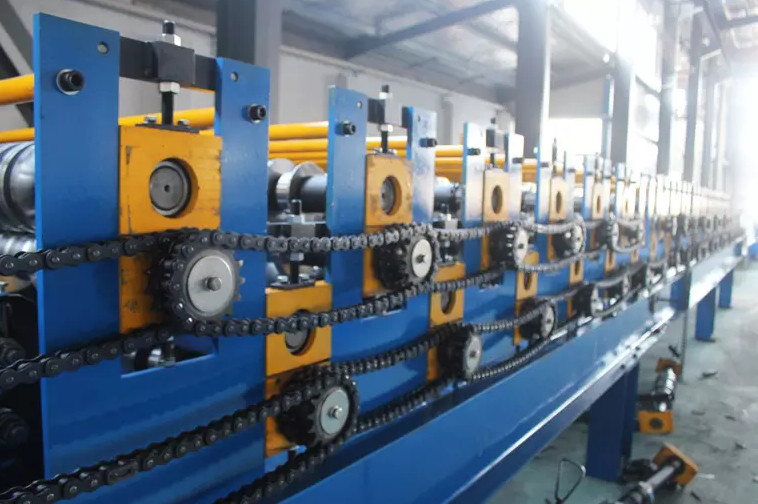

Roll station	Top layer: about 18 stations Bottom layer: about 20 stations
Shaft diameter	￠70mm
Machine roll forming speed	0-15m/min
Working pressure	12-16Mpa adjustable
Hydraulic power	4kw
Wheel material	45# steel hard chrome plating

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized 0
