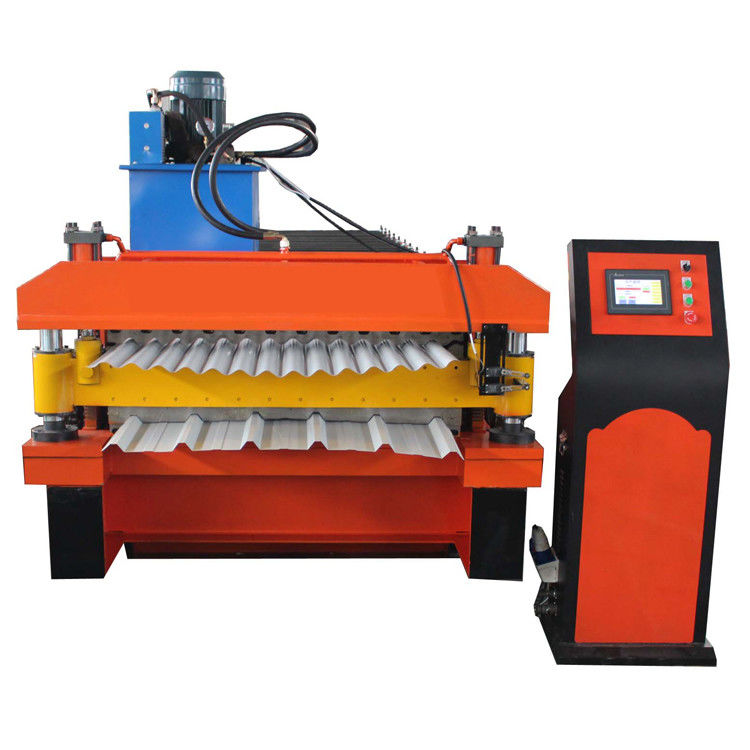

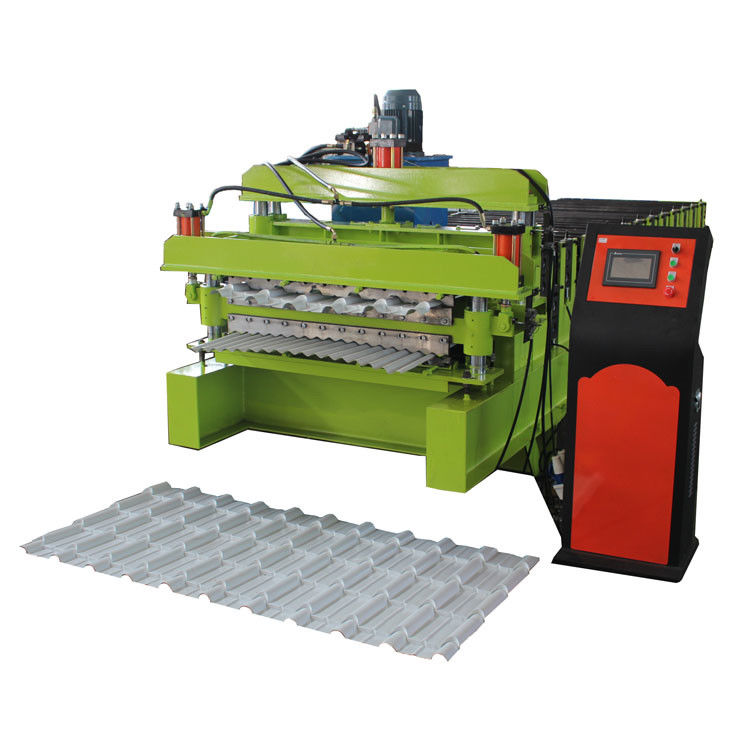

Glazed Tile Wall Panel Double Layer Roll Forming Machine For Building Material

15m/min double roll forming machine

building material double layer forming machine

5.5kw double roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Toko Bahan Bangunan Mesin Roll Forming Lapisan Ganda Panel Dinding Ubin Mengkilap

Jenis ubin:

Baja Berwarna

Kapasitas Produksi:

15 m/mnt

Dimensi (P*L*T):

8,5*1,5*1,7m

Voltase:

380V 50HZ 3Phase atau sebagai permintaan pelanggan

Berat:

6500KG

Lebar makan:

1000MM-1200MM

Ketipisan bergulir:

0.3-0.8mm

Menyoroti:

15m/min double roll forming machine

building material double layer forming machine

5.5kw double roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Building Material Shops Glazed Tile Wall Panel Double Layer Roll Forming Machine

Customized 0.3-0.8mm Metal Sheet 8 Rib Trapezoidal And 1035 Glazed Tile Double Layer Roll Forming Machine For Africa

Double layer roll forming machine popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of double layer roll forming machine to Guyana, Brazil, Colombia, South Africa, Nigeria etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

Double layer roll forming machine | double deck machine | 2 layer roll forming machine

Detailed Parameters:

No	Item	Parameter
1	Decoiler	5tons electric decoiler (Hydraulic decoiler optional), manual one free
2	Forming speed	12-18m/min
3	Material	G235grade steel or galvanized coil
6	Shaft	Diameter 75mm, all solid
7	Rollers	High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05
8	Main frame system	H350 steel. By blasting
10	Main forming power	5.5kw.
11	Pump Station Power	4Kw, or electric cutting for 3kw
12	Cutting Type	hydraulic cutting or electric cutting
13	Cutting Blade	Cr12Mov with hard treatment, HRC52-68
14	Control System	Delta PLC, Touch screen, Frequency converter
15	Measuring accuracy	Precision +/-1.5mm,with frequency converter
16	Transmission	By single chain 1’
18	Machine weight	About 6500 kg
19	Voltage	380V,50hz, 3phase, as per request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
