Rumah > Produk > Mesin Roll Forming Panel Dinding >

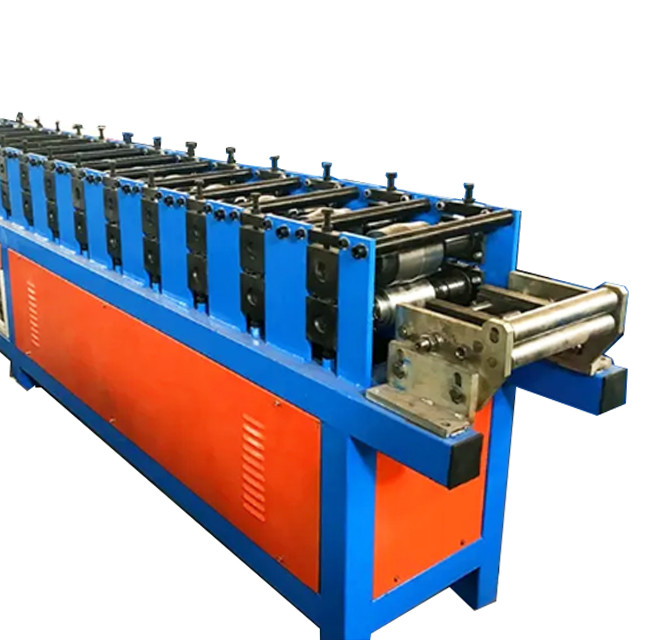

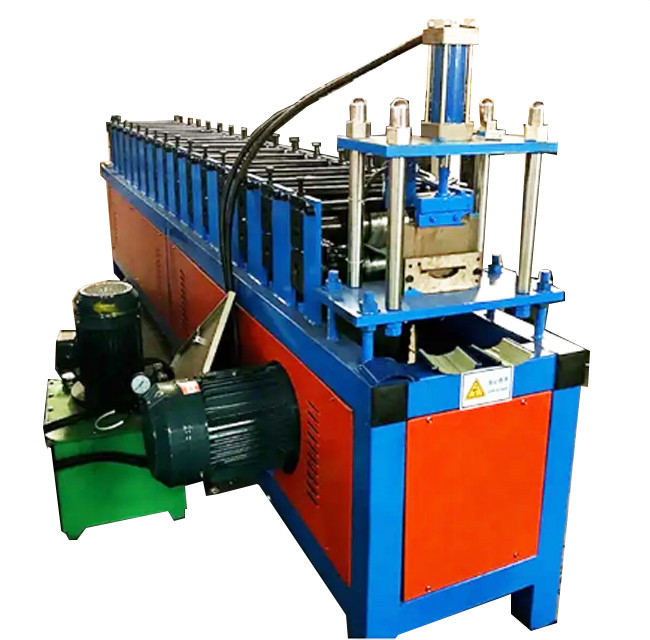

Metal Palisade Fence Roll Forming Making Machine PLC Control

Metal Palisade Fence Roll Forming Making Machine PLC Control

Metal Palisade Fence Roll Forming Making

PLC Control Fence Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

kunci sleflock

Hubungi Kami
Minta Penawaran Harga
Metal Palisade Fence Roll Forming Making Machine PLC Control Metal Palisade Fence Roll Forming Making Machine PLC Control Metal Palisade Fence Roll Forming Making Machine PLC Control
Detail Produk
Nama Produk:
Pagar Palisade Logam Mesin Pembuat Roll Forming Pagar Kayu
Kapasitas Produksi:
0.3-0.8mm
Berat:
3000 kg
Dimensi (P*L*T):
5800*1000*1500mm
Voltase:
380V/440V/220V/415V
Cutting Blade Material:
Cr 12 baja bermutu tinggi
Bahan roller:
45 # baja Berlapis Krom
Kontrol:
Sistem PLC(detla).
Menyoroti:

Metal Palisade Fence Roll Forming Making

,

PLC Control Fence Roll Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus 2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style on line Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik
Harga bagus Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic on line Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik
Harga bagus Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases on line Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik
Harga bagus Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut on line Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Metal Palisade Fence Roll Forming Making Machine Picket Fence​



About Metal Palisade Fence Roll Forming Making Machine Picket Fence:

  Our Fence Roll Forming Machine for different models based on different designs or customer's samples . It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.




Specification

No.
Metal Palisade Fence Roll Forming Making Machine
1
Suitable to process
Color alu-zinc steel strips
2
Roller
15 Rows plus leveling device
3
Dimensions
5.8*1*1.5m
4
Motor Power
3Kw
5
Pump Station Motor
4Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 3000kg
11
Main structure of the machine
Square steel frame
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Gear driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm







Application

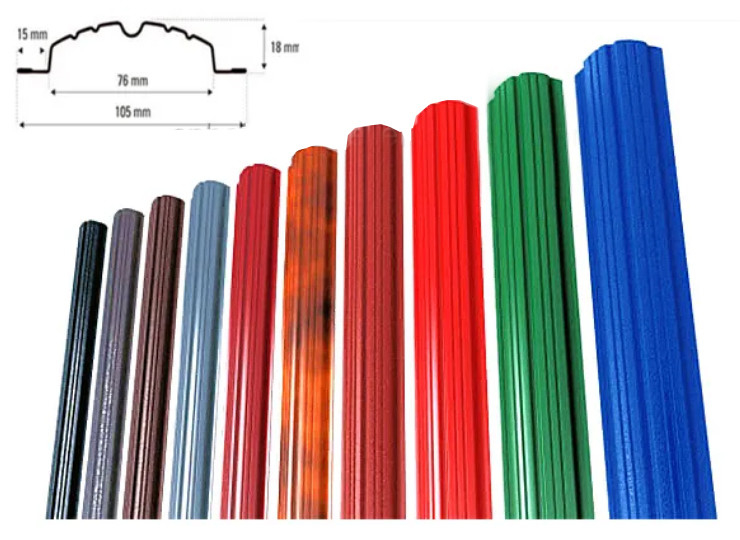

  selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.



Payment terms

  40% in advance as advance payment
  60% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port or CNF
  The Delivery Time: 30 days after the down payment is received.
