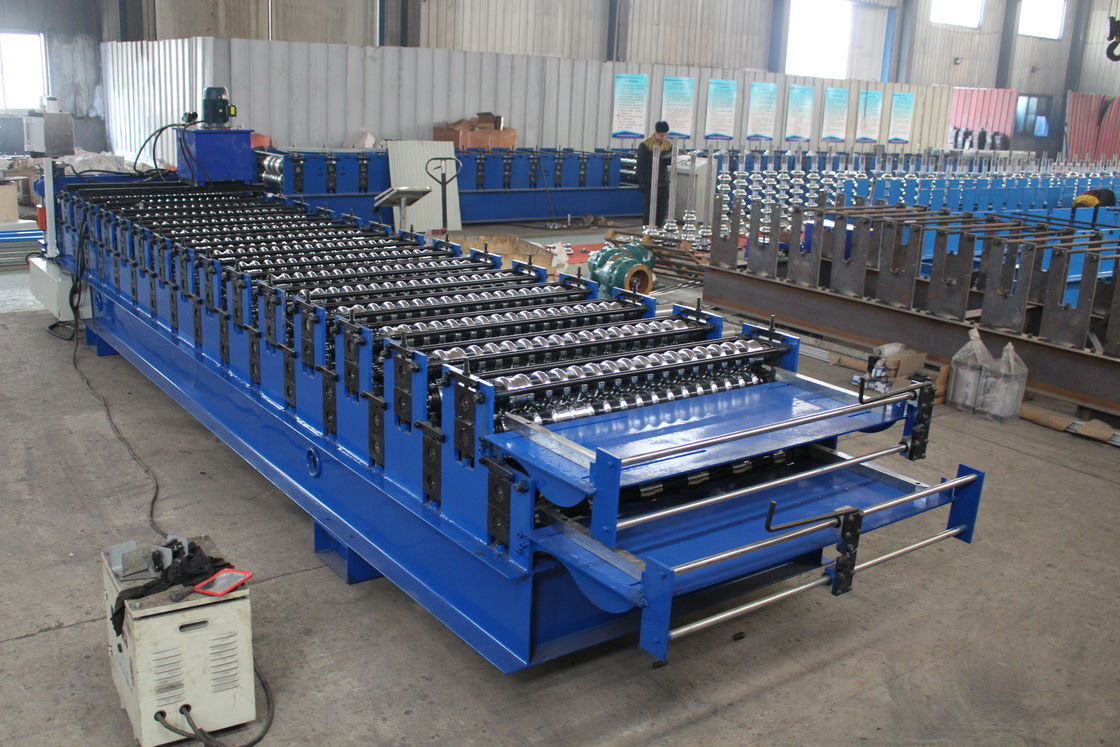

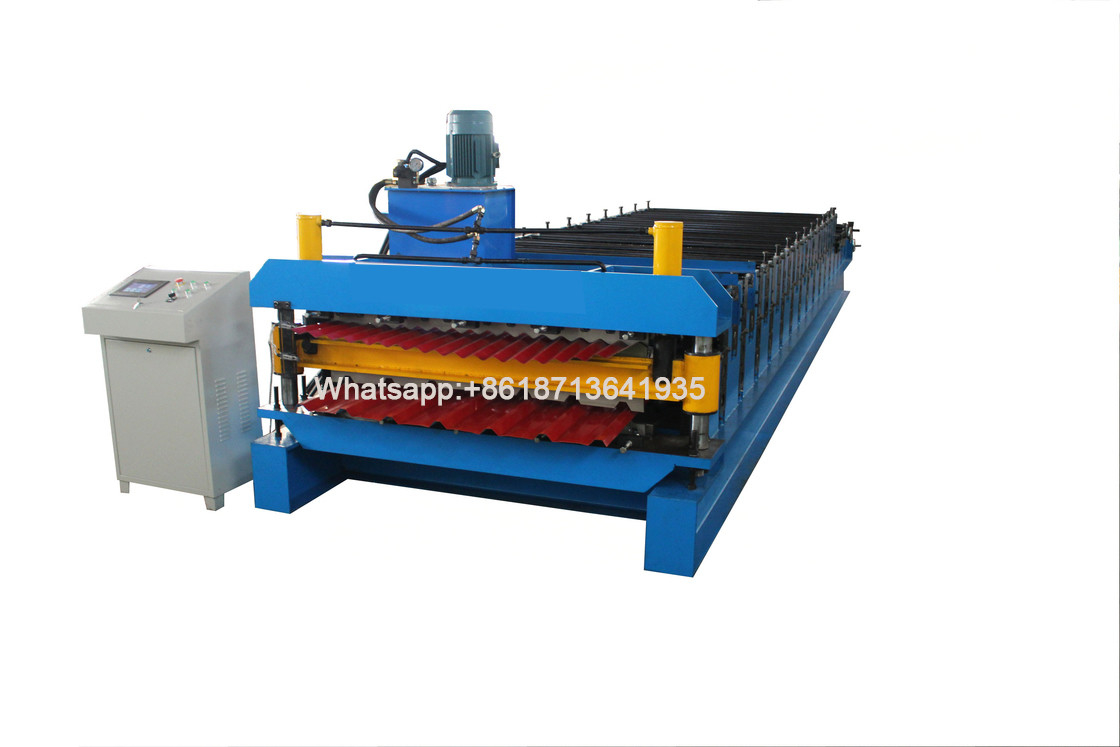

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

7.5kw Double Layer Roll Forming Machine

Double Layer Forming Machine 25m/Min

Anti Rusty Double Layer Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

840-850

Hubungi Kami
Minta Penawaran Harga
7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty
7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty 7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty
Detail Produk
Deskripsi produk:
Mesin Roll Forming Lapisan Ganda 7.5kw GI PPGI 25m/ Min Anti Karat
Jenis ubin:
Baja Berwarna
Model TIDAK:
840+850
Dimensi (P*L*T):
6500*1500*1500
Diameter poros:
80mm
Bahan poros:
Baja 40Cr
Voltase:
380V 50HZ 3PH
Berat:
3,5 t
Daya hidrolik:
3kw
Bahan pisau:
Gcr12 padam
Menyoroti:

7.5kw Double Layer Roll Forming Machine

,

Double Layer Forming Machine 25m/Min

,

Anti Rusty Double Layer Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

  7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty :Decoiler--Feeding--Roll Forming--Cutting--Output Table

Decoiler

  Capacity: 5000kg

  Width: 1250mm

  Type: Hydraulic Or Manual (Optional)

  Inner Diameter: 450-550mm

  Outter Diameter: 1500mm

Roll Forming Machine

  Power: 3kw

  Frame panel thickness: 14mm

  Bottom Frame: 360H steel

  Weight: 5t

Cutting Device

  Type: Hydraulic

  Driven; 1 inch chain

  Power; 3kw

  Cutting Blade: Cr12 steel

  Hardness for Heat Treatment:HRC55 – 60°

Hydraulic Pump

  Power: 3kw

  Oil Type: 46# hydraulic oil

  Pump Brand: China Brand

Control System

  Type: PLC Frequency Control System with touch screen
  PLC Brand:Delta
  Encoder Brand: Omron

  Length Error: ±2mm

  Language: English and Chinese

Output Table

  Length: 6m

  It is simple and used to load finished product.




Detailed Parameters:


Shaft Material No.45 steel with treatment
Roller Station

up 16 steps

down 18 steps
Main Shaft Dimension 70mm
Material Thickness 0.3-0.8mm
Roller Material No.45 steel with treatment
Working Speed 8-12m/min
Material PPGI/GI



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
